Automatic Stone Mill Grinder

The water-displacement method is a traditional sesame oil extraction technique with a history of more than a thousand years. Unlike modern mechanical pressing, this process uses hot water to separate the oil from roasted sesame paste.

The process begins by roasting sesame seeds until they develop a rich golden color and distinctive aroma. The roasted seeds are then ground into a fine paste and mixed with hot water at approximately 90°C at a ratio of 1:0.45. Through continuous stirring, the sesame oil gradually separates from the paste, rises to the surface, and is then collected by skimming.

The principle behind this traditional method is based on the natural difference in density and solubility between oil and water. Since sesame oil is lighter than water and does not dissolve in it, the oil naturally separates and rises to the surface, making it possible to collect the oil efficiently.

Sesame oil produced using the water-displacement method typically has a beautiful amber color, a rich and long-lasting aroma, and a distinctive roasted flavor. The gentle traditional processing helps preserve the characteristic taste and nutritional value of sesame seeds.

However, compared with mechanical pressing methods, the oil yield is relatively low, generally around 28%–30%. This traditional production process requires more time and labor, which also contributes to the higher market value of the finished oil.

This method is particularly suitable for producers and consumers who appreciate authentic traditional sesame oil, rich roasted flavor, and high-quality nutritional

characteristics.

Stone diameter	Power	Capacity	Dimension	Weight
40cm	0.75kw	5kg/h	600*600*630mm	180kg
50cm	1.5kw	10kg/h	700*700*780mm	270kg
60cm	1.5kw	20kg/h	800*800*800mm	360kg
70cm	2.2kw	35kg/h	900*900*820mm	520kg
80cm	3kw	50kg/h	1000*1000*980mm	800kg
90cm	4kw	75kg/h	1100*1100*1000mm	900kg
100cm	5.5kw	140kg/h	1200*1200*1180mm	1150kg
110cm	5.5kw	160kg/h	1300*1300*1180mm	1200kg

Features of Electric Stone Mills:

Eco-Friendly and Safe: Made from high-hardness white sandstone, these stone mills are designed for clean and safe processing. The natural stone material contains a variety of trace elements and minerals, while the grinding process is free from chemical additives, making the mills an environmentally friendly choice for food processing.

Energy-Efficient: Operating at low speeds, these stone mills consume less energy while minimizing material waste. Their optimized design ensures consistent and uniform grinding performance. With a compact structure, simple operation, and low operating costs, they are well suited for a wide range of processing applications.

Wide Range of Applications: Different models are available for processing flour, soy milk, sesame oil, rice milk, peanut butter, sesame paste, and other products. Small manual stone mills are also available for home use. With practical designs and reliable performance, these stone mills are widely appreciated by users.

Raw Material Cleaning: Stones, dust, and other impurities are removed from the sesame seeds using gravity separators or air classifiers to ensure clean and high-quality raw materials.

Washing and Soaking: The sesame seeds are thoroughly washed, and their moisture content is properly adjusted to prepare them for the roasting process.

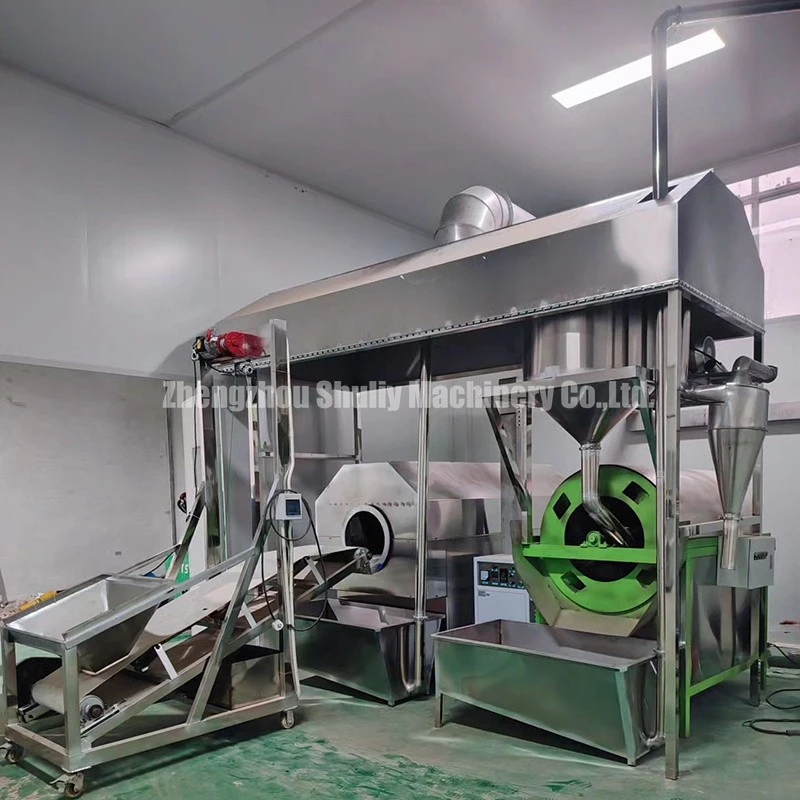

High-Temperature Roasting: A gas- or electric-heated rotary drum roaster is used to roast the sesame seeds evenly, bringing out their rich aroma and enhancing their characteristic flavor.

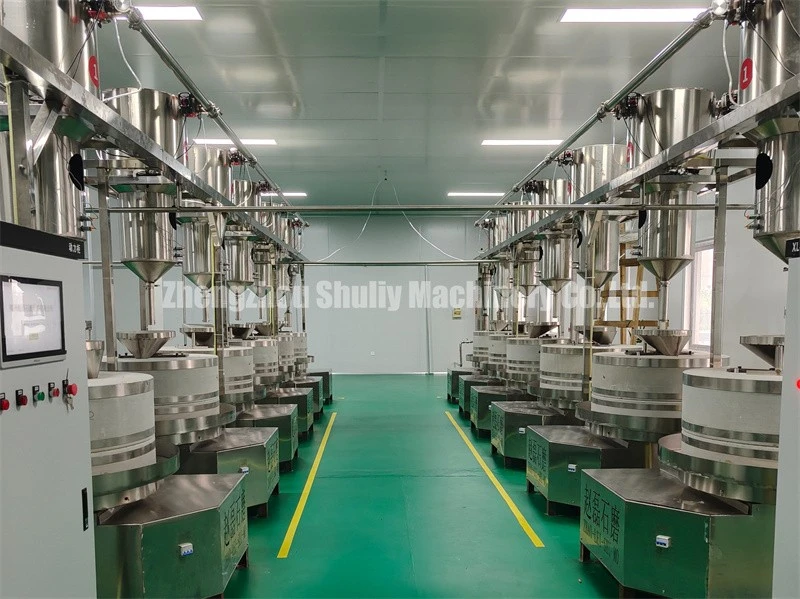

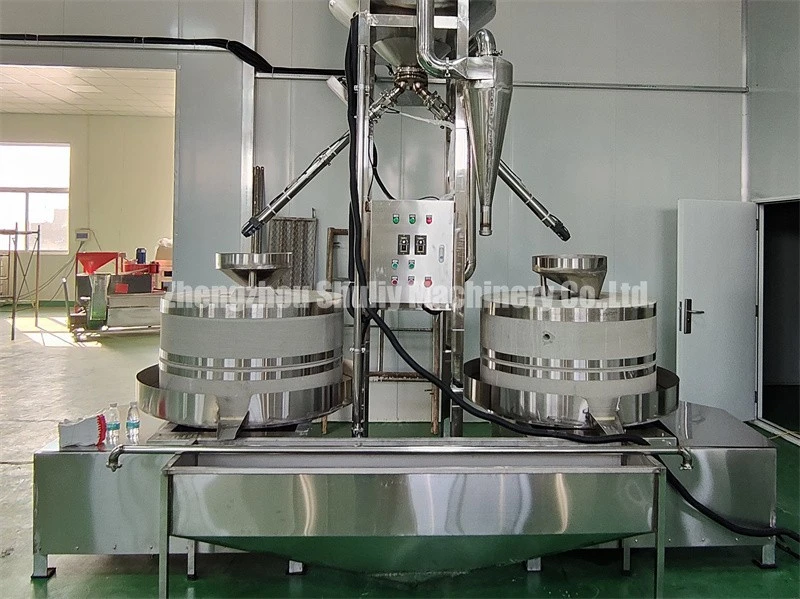

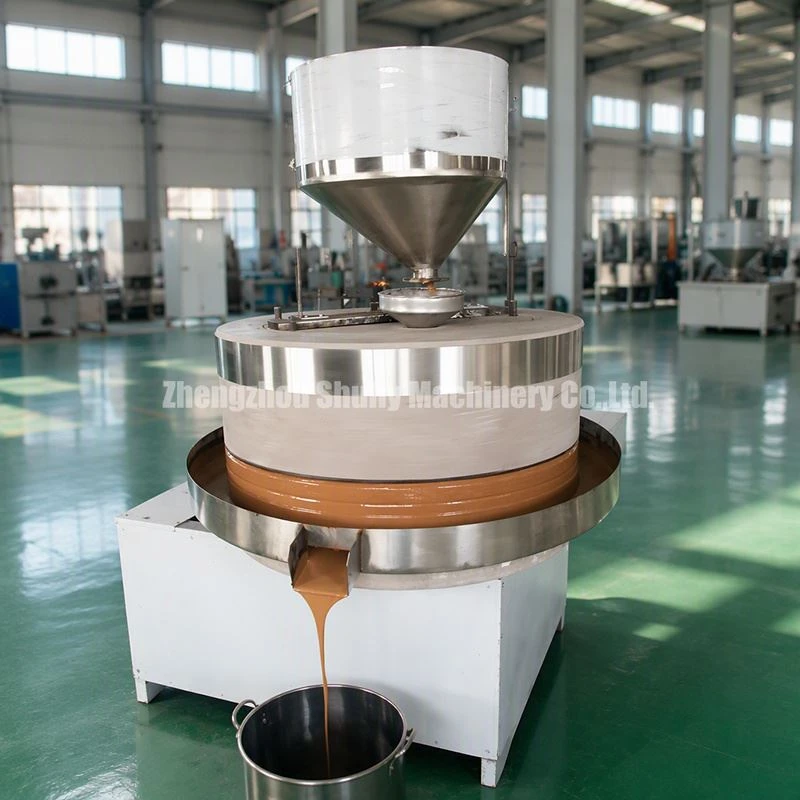

Stone Milling: The roasted sesame seeds are fed into an electric, low-speed stone mill, typically operating at approximately 28–32 rpm, where they are ground into a smooth and uniform paste. This low-temperature physical grinding process helps preserve the natural nutrients, aroma, and flavor of the sesame seeds. The grinding stone features a reinforced center design, providing excellent strength and durability for long-term operation.

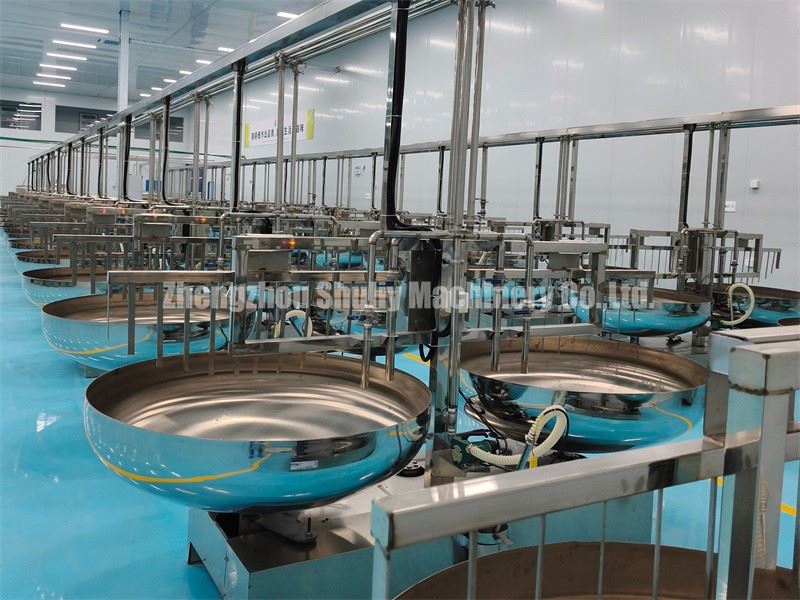

Oil Extraction (Water-Displacement Method): The sesame paste is processed using the traditional water-displacement method, in which water is added and the mixture is continuously stirred and agitated to separate the oil. Alternatively, modern hydraulic pressing equipment can be used for mechanical oil extraction.

Sedimentation and Filtration: Sedimentation tanks are used to separate sesame residue and excess water. The oil then undergoes hot and cold filtration to remove remaining impurities, resulting in clear, pure, and high-quality stone-milled sesame oil.
