Product Application:

The Scrap Metal Gantry Cutting Machine is a high-efficiency metal shearing machine, which is widely used in rolling mills, metallurgical plants, scrap steel processing, processing and recycling units and other places.

Scrap Metal Gantry Cutting Machine can quickly and accurately cut a variety of metal materials, including steel pipes, scrap copper, scrap steel, scrap iron, light metal structural parts, stainless steel, metal compacts, automobile bodies, aluminum alloys, copper materials, iron filings, steel wires, automobiles and Other heavy waste materials that cannot be processed.

51001

Product Introduction:

The Scrap Metal Gantry Cutting Machine are designed with a strong gantry structure, and the machine has excellent stability and load-bearing capacity, so it can handle large and heavy metal materials. The gantry shears are equipped with a powerful shearing tool and an efficient power system to ensure a fast and smooth shearing process.

Gantry scissors have multiple operating modes and automatic functions, which can be adjusted and controlled according to different needs of customers. The machine is equipped with advanced safety devices to ensure the safety of operators.

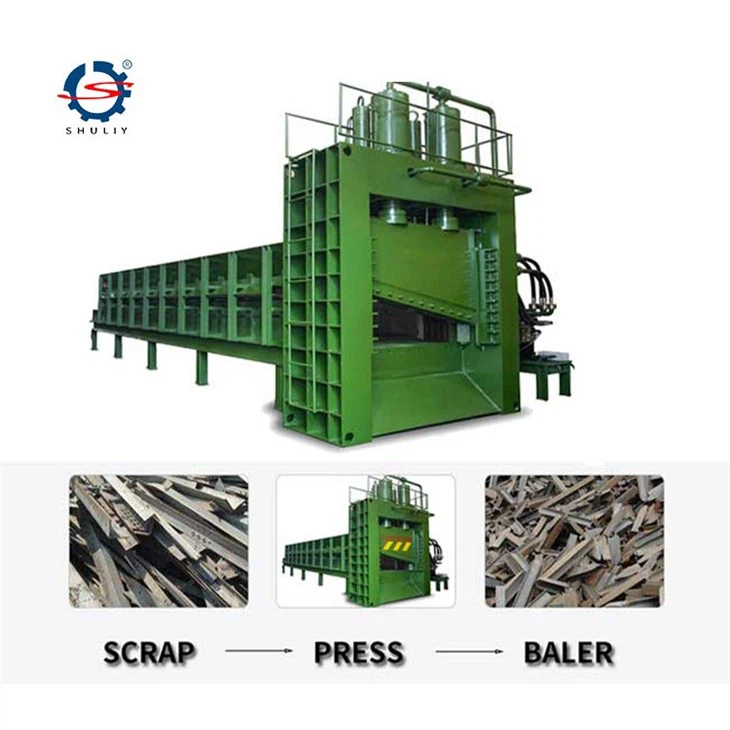

Scrap Metal Gantry Cutting Machine

Advantages of the machine:

The advantages of gantry scissors：

1. Cut to customer's desired size and shape

2. Reduced processing time and labor costs

3. Capable of handling various types of metal materials, providing a wide range of applications.

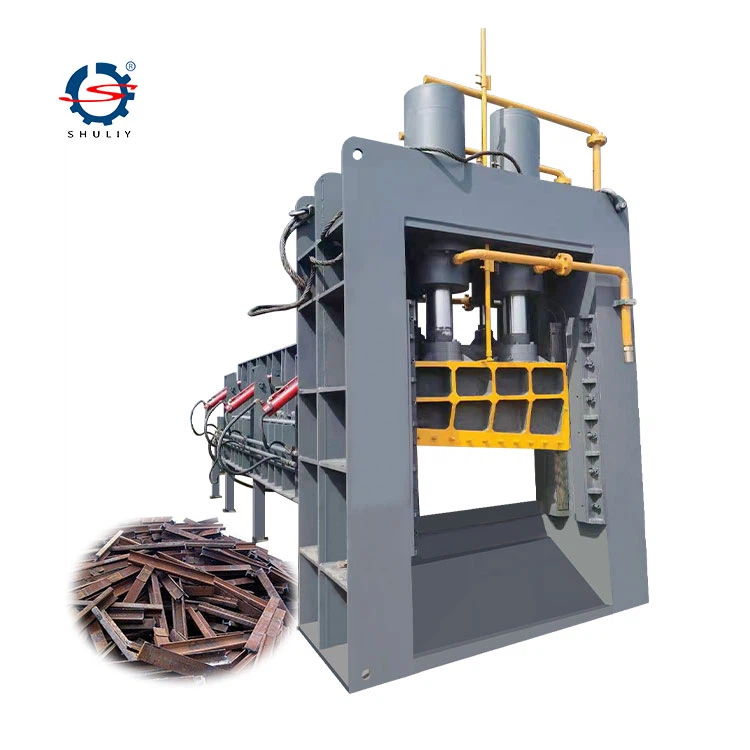

Scrap Metal Gantry Cutting Machine

No	Technical parameter (Model-800)
1	Shearing cylinder	Model	YG320/250-1400	stroke	1400mm
				Quantity	2pieces
	Quick return to the cylinder	Model	YG280/160-1400	stroke	1400mm
				Quantity	1pieces
2	Pressure cylinder	Model	YG220/160-1250	stroke	1250mm
				Quantity	2pieces
3	Material box size		800018001200mm
4	Hydraulic system MaxWorking pressure		28Mpa
5	Cutting width/minimum cutting opening		1800mm/680mm
6	Press length/feed height		900mm/1000mm
7	Main motor power of equipment		180Kw/380v /3hp /50hz
8	Power Specifications		380V/3PH,50Hz
9	Cabinet		380VPL Control ，With remote control
10	Cut angle		9°
