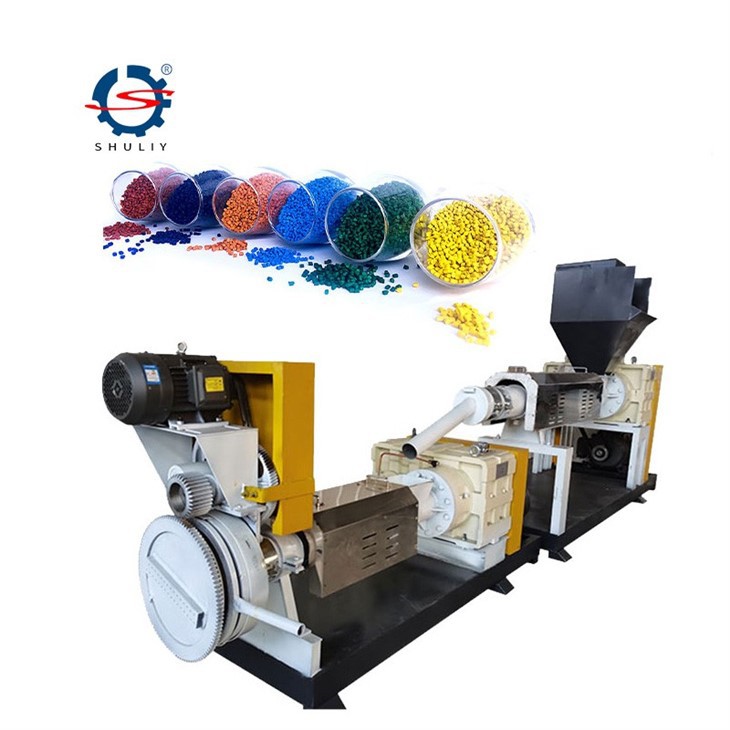

Plastic Recycling Granulator Machine

plastic recycling granulator machine is suitable for granulating waste film, waste silk, waste woven bags, waste plastic bottles, waste plastic barrels, boards, and broken materials. It adopts automatic screen changing, saving time and effort, greatly improving work efficiency. It is equipped with hob cutting The granulator has low noise and the cut particles are uniform and beautiful. The screw and barrel are specially hardened and have the characteristics of wear resistance, good mixing performance, and high output. The design of the exhaust port can discharge moisture and waste gas during the production process, making the material discharge more stable and the rubber particles stronger, ensuring the excellent quality of the product.

Model	Screw diameter	Main shaft speed	Main Motor	Outsize(m)	Capacity
SLPP-105	105mm	50r/min	18.5kw	2.4*0.7*0.7	100kg/h
SLPP-125	125mm	60r/min	22kw	2.6*0.7*0.7	120kg/h
SLPP-150	150mm	70r/min	37kw	3.0*0.7*0.8	150kg/j
SLPP-180	180mm	70r/min	45kw	3.2*0.8*1.2	200kg/h
Customize as client's request.

1. Blown film production plant: The remaining trimming waste after the production of the film blowing machine (the waste after the stamping manufacturing process of the vest bag) can effectively recycle the entire roll of plastic film and plastic sheets. The high quality allows the recycled plastic particles to be almost the same size and can be directly put into film production for online production.
2. PP knitting factory: The drawn yarn, woven bags, space bags, and non-woven fabrics produced by the PP knitting factory can all be recycled and pelletized, and 100% of the recycled materials can also be used in the production line for recycling.
3. Professional recycling plants: Professional recycling plants purchase waste plastic materials from various places. After washing, these plastic wastes can be made into plastic particles again. Recycling plants usually add additional color masterbatches or additives to change the color of the particles and improve their quality.

1.PLC control: ergonomic touch screen, easy to operate, high stability, low later maintenance cost
Recipe memory: Set parameters according to the formulas and logic of different materials, and you can easily and conveniently load the saved process parameters from the recipe storage system, making recycling easier
Preheating: Set the program according to the material formula and preheat the equipment in advance to save labor
2. Emergency stop protection (used to stop equipment in emergency situations) limit switch, protective cover
High-speed transmission parts warning reminder (yellow paint, sign)
3. Relying on specially designed control schemes and process monitoring to achieve lower energy consumption requirements.
Obtain higher output under the same equipment specifications, improve the output-energy consumption ratio, and quickly recover costs.
The patented design of the double-layer cutterhead increases output by improving material feeding, achieving higher productivity and achieving higher production with the same equipment specifications.
4. Provide a complete set of solutions: factory design, equipment and auxiliary machines, and quick response service system (online)
