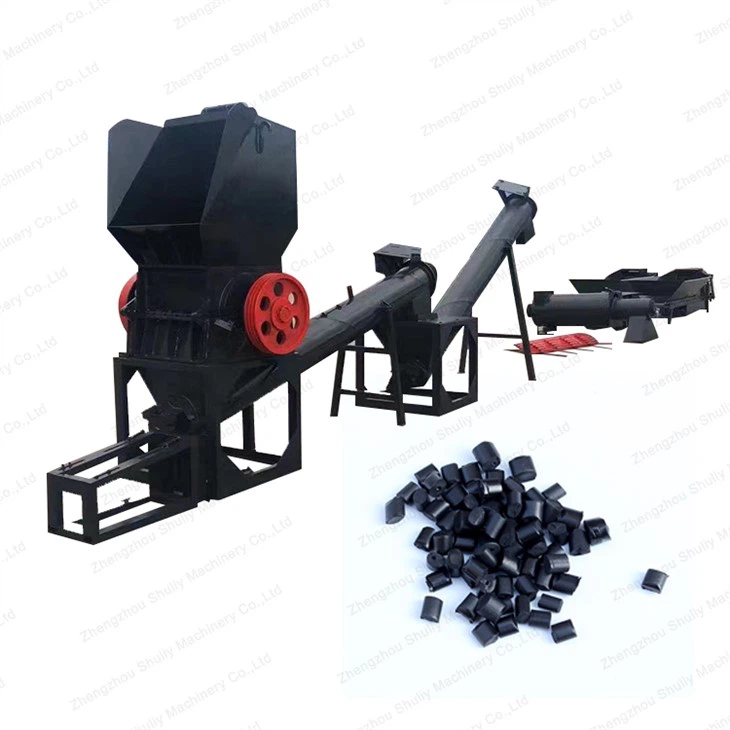

Plastic Granulator Machine

1.Belt conveyor: Transfer the raw material to the crusher for crushing and washing

2.Crushing and washing machine:The machine can crush the waste plastic into small piece besides wash them and them put them into the plastic granule making machine.

3.Conveyor:delivery crushered raw material to the pool cleaning

4.Pool:Clean the crushed raw material and precipitate the impurities.

5.Pool pulley:Slide the crushed raw material of the pool to reach the other end.

6.dewatering machine:Remove the broken plastic from the pool, with the function of dehydration

7.Conveyor+Automatic feeder:converyor send broken raw materials to the feeder,the feeder connect with pellet making machine,replace the artificial pressure into the granulator

8.Host pellet making machine :The raw material is heated and melted in this machine

9.Second pellet making machine:The melted plastic is drawn through the die in the secondary machine

10.water tank :is used to cool the plastic pellet and send the pellet to next step-plastic cutting machine.

11.Plastic cutting machine:This machine is used to cut the plastic strip into small pieces and the size of pellet can be adjusted as your requirements.

12.Silo storage machine: to storage the final plastic pellet

13:Plastic pellet bagging machine:packing the final product(plastic pellet)

14:Control cabinet:The temperature control cabinet control the temperature of the plastic pellet machine and also make people easy operate the machine.







The Plastic Granulator Machine is mainly used for processing waste plastic films, woven bags, convenience bags, pots, barrels, beverage bottles, furniture, daily necessities, etc. It is suitable for most common waste plastics and is the most widely used, widely used, and popular plastic recycling machinery product in the waste plastic recycling industry.

Purpose: 1. All recycled materials can be produced after classification, crushing, and cleaning without the need for drying or drying, and can be used for both dry and wet purposes.

The crushing, cleaning, feeding, and granulation of human raw materials are all automated.

Fully utilizing the high-pressure friction uninterrupted heating system, automatic heating production is avoided, saving electricity and energy.

Adopting a split fully automatic power distribution system to ensure the safe and normal operation of the motor.

The Lei rod material cylinder is made of imported high-strength and high-quality carbon structural steel, which is durable and durable.

6. The appearance of the machine adopts international popular colors, which are beautiful and elegant.











200kg/h plastic pellet making line

No.	Picture	Specification
1		Plastic crushing machine Model:SLSP-600 Motor power:30 kw Capacity:600-800kg/hour 10pcs knives Material of knives:60Si2Mn
2		Screw Conveyor Power :7.5 kw Length:3m
3		Washing Tank Length:5m With 3pcs grapple With chain and motor
4		Vertical lifter Power: 7.5kw
5		Auto conveyor Length:4.5m Width:0.5m Power:2.2kw
6		Auto feeder Make raw materials better enter the host Power:2.2kw
		Host pellet making machine Model: SL-150 Power: 37kw 2.3screw Heat Method: Electromagnetic heating Second pellet making machine Model:SL-125 Power:11kw 1.3m screw Heat Method:Heating ring heating   Hard tooth surface reducer Screw material:40Cr Sleeve material:heat-treated No.45 steel
7		water tank Length: 3m Material:stainless steel
8		Pellet cutting machine 3kw
9		Control cabinet
