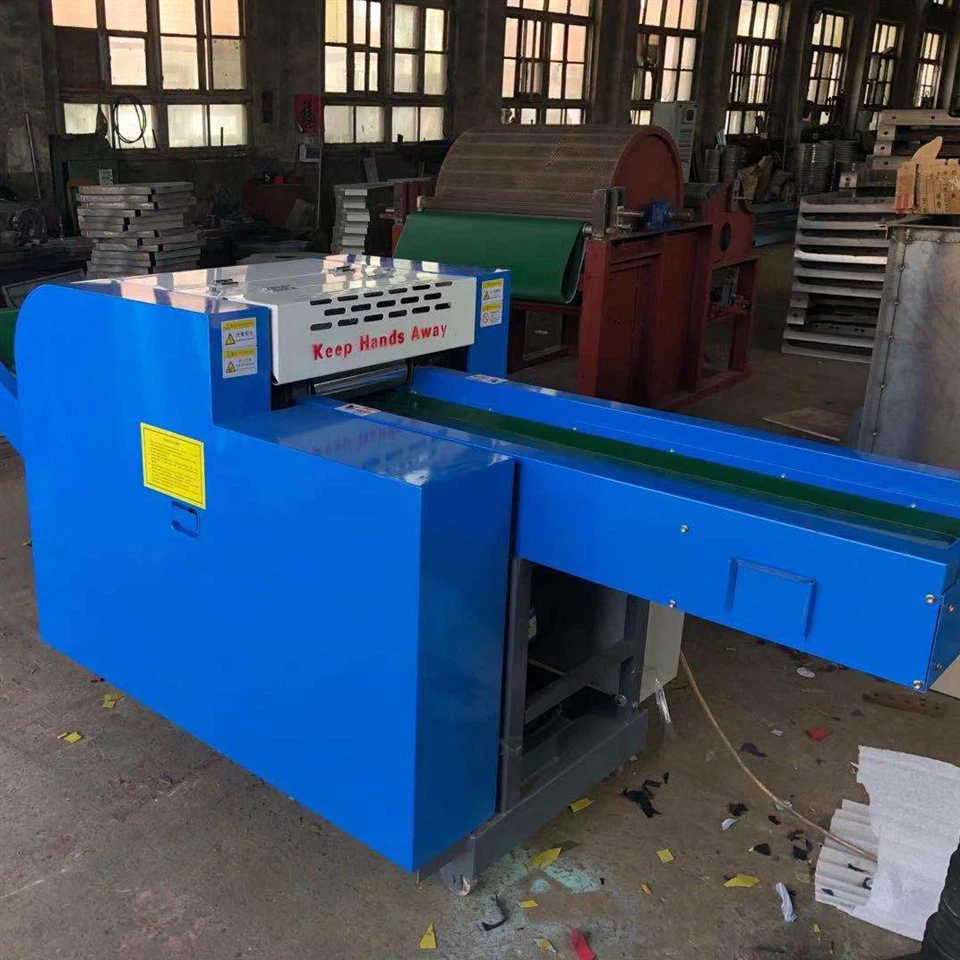

Garment Waste Recycling Machine

This garment waste recycling machine efficiently cuts and shreds a wide range of materials, including soft fibers, carbon fibers, algae-based fibers, bio-fibers, bamboo fibers, textile scraps, waste yarn, discarded clothing, paper, hemp, fishing nets, non-woven fabrics, latex foam, leather, palm silk, graphene, sponge, cotton, automotive interior scraps, buffing leather, and more. The shredded output is uniform in size with adjustable lengths, offering flexibility for further processing.

Designed for mobility, stability, and low maintenance, this high-efficiency machine replaces labor-intensive manual cutting, seamlessly supporting subsequent opening and reprocessing stages.

Model	SL800B	SL1200B	SL1600B	SL2400B
Motor(kw)	7.5+1.5	15+2.2	18.5+3.0	22+3.0
Boundary dimension(mm)	3200*1000*1200	7000*1500*1500	7000*1800*1950	5800*2200*1950
Theoretical yield (kg/h)	500-800	800-1200	1000-3000	2000-5000
The shear size (mm)	5-150	5-150	5-300	10-300
Input with (mm)	2800*350	3000*520	3000*720	3000*1100
Output with (mm)	2800*350	3000*520	3000*720	3000*1100
Shearing Thickness (mm)	30-50	30-80	30-150	30-200



1. Cutting & Shredding Mechanism:
Features an angled rotary blade design with dynamic and fixed blades set at a sharp shear angle. The cutting surface follows a smooth outer circular motion, enabling continuous high-speed shearing. Blades are made of tough, wear-resistant material for long-lasting sharpness.

2. Feeding System:
Equipped with a forced-feeding mechanism, adjustable feed rollers, and a conveyor belt to ensure steady, controlled material input-preventing overfeeding accidents. Roller type (rubber or steel) can be selected based on material requirements.

3. Control System:
Integrated dual-control overheating protection for feeding, discharge, belt, and main unit. Includes an emergency stop button for simple, safe operation.

4. Safety Guards:
Feed inlet features a protective mesh and bright yellow warning labels for enhanced safety. Emergency stop function is also included.

5. Drive System:
Optimized transmission with sprockets and chains for precise multi-directional adjustments. Ensures stable operation and easy maintenance.

The garment waste recycling machine, also known as a fabric shredder, fiber cutter, yarn chopper, hemp cutter, rag shredder, or paper granulator, operates on a conveyor-fed system with compression rollers, precision blade cutting, and belt discharge. Its dynamic blades follow a circular cutting path with an angled design, ensuring smooth and efficient shearing against the fixed blades for continuous operation.
