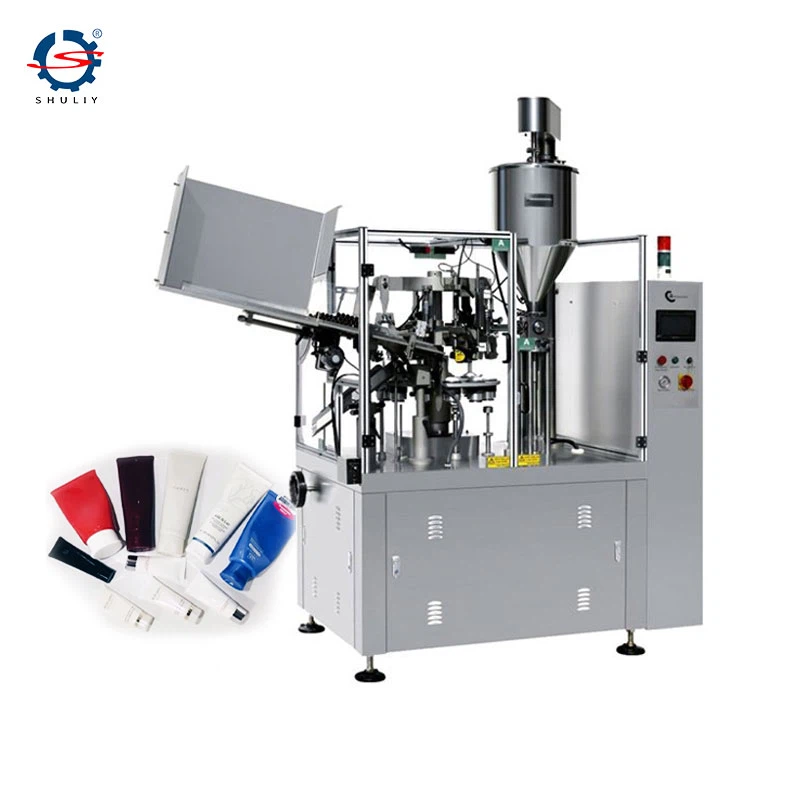

Cosmetic Tube Filling And Sealing Machine

This cosmetic tube filling and sealing machine operates on a cam-driven indexing system that moves the working table in precise, intermittent steps. Equipped with 8 or 10 tube stations, the machine performs a fully automated workflow once tubes are manually loaded. It automatically orients the tubes, fills them with product, heats the inner and outer layers, seals the tail, embosses the code, trims the ends, and delivers the finished tubes.

The plunger-based filling system ensures accurate dosing, while the heating process remains stable and adjustable for consistent sealing quality. The sealed tube tail is smooth, neat, and evenly trimmed. The machine runs with excellent stability and produces virtually no noise or contamination during operation.

All product-contact parts are made from high-grade stainless steel-either 304 or 316L-and feature quick-release components for easy removal and cleaning.

For materials that require temperature control, an optional heating and insulation unit can be added to the feeding hopper.

Voltage	220V/1P/50Hz(Customized )
Power	2KW*3KW
Tube Dia	10-50mm
Tube height	5-200mm
Filling volume	5-250ml
Filling speed	20-30pcs/min
Filling accuracy	±1%
Air pressure	0.5~0.6Mpa
Hopper volume	30-50L(Heating and mixing is optional )
Nitrogen system	optional
Size(L×W×H)	1200×900×1500mm
Weight	400 kg

1. All product-contact components are made from SUS304 stainless steel, with SUS316 available as an upgrade option.

2. Key connections feature quick-change fittings for fast, easy disassembly and cleaning.

3. Equipped with high-quality pneumatic components for reliable, long-term performance.

4. The conveyor table height can be adjusted with a handwheel to accommodate different tube sizes.

5. The plunger filling system is machined on a CNC lathe to ensure a filling accuracy of up to ±1%, with easily adjustable volume settings.

6. Filling speed is fully adjustable through a variable frequency drive (VFD).

7. A production counter is displayed on the control panel for convenient output monitoring.

8. Dual inner and outer heating technology ensures a stable, clean, and visually appealing seal.

1. Manual tube loading

2. Automatic registration mark positioning via photoelectric sensor

3. Automatic dosing and filling

4. Tube tail inner heating

5. Tail sealing and batch/date coding

6. Tail trimming for a clean finish

7. Automatic discharge of finished tubes
