Products Description

The ton bag packing machine widely used in the packaging and handling of various bulk materials. It has greatly improved production efficiency, reduced labor intensity, and brought significant economic benefits to enterprises. It is mainly used for automatic packaging of powdered and granular materials, such as fertilizers, feed, grain, chemical raw materials, plastic granules and other industries. Through the automatic control system, the automatic ton bag packaging machine can automatically complete the tasks of bag clamping, weighing, filling, conveying, etc., which greatly improves the packaging efficiency.

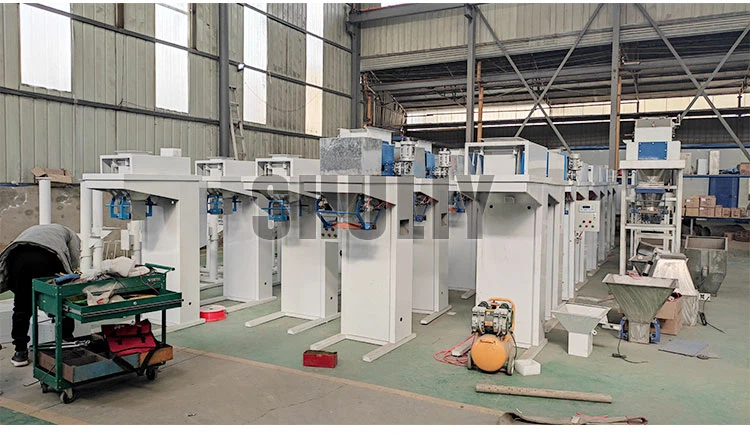

ton bag packing machine

Products Parameter

Product model	TZ-1000
Product dimension	220033504000mm
Packing speed	20-40T/H
Packing accuracy	±0.5
Packing weight	0.5-2T
Weighing form	Single nozzle
Air source pressure	0.5MPa
Motor power	7.4KW
Power supply voltage	AC220V 50HZ
Working environment	-20°C - 50°C
Equipment weight	750KG
Packing bag	Ton bag

Working Principle

The ton bag packing machine is mainly composed of a frame, a bag clamping device, a lifting device, a conveying device and a control valve. When the material is transported to the predetermined position, the bag clamping device will automatically clamp the ton bag, and then the lifting device will lift it to an appropriate height. Then, the conveying device will load the material into the ton bag. When the ton bag is full, the bag clamping device will be released, and the lifting device will lower the ton bag to the ground for the next step of handling or storage.

jumbo bag packing machine

Products Application

The ton bag packing machine is mainly used for different industries.

1. Chemical industry: including packaging and bagging of fertilizers, chemical raw materials, plastic granules, etc.
2. Building materials industry: packaging of powdered or granular building materials such as cement, lime, sand, etc.
3. Food industry: especially packaging of bulk foods such as grains, flour, sugar, etc. Ton bag packaging machines that meet hygiene standards can be used in the food industry to ensure the safety and hygiene of the packaging process.
4. Mining and metallurgical industry: used for packaging and bagging of ores, mineral powders, metal powders, etc.
5. Feed and agriculture: including bagging and packaging of feed, seeds, agricultural products, etc.
6. Environmental protection and recycling industry: used for packaging and bagging of solid waste, recycled materials, etc.

jumbo bag filling machine
