Cocoa Bean Cleaning Machine





This multifunctional cocoa bean cleaning machine can air-separate and screen a variety of crops and agricultural byproducts, such as cocoa beans, coffee beans, wheat, corn, soybeans, rice, pepper, and sunflower seeds, to achieve seed cleaning and also double as a grader. The grains are initially suctioned through an air duct to remove light impurities such as husks, straw, and dust. A vibrating screen then separates large and small impurities and grains of varying sizes.



Function	Feeding elevator, Air screen, cyclone, dust collector, vibration screen
Size L×W×H	4800*2500*3600 mm
Weight	2100 kg
Capacity	10 T/H(Based on process wheat)
Voltage	380V(220V/440V need customized) 50/60hz 3 phase
Screen dimension	2400mm*1500mm*4 layers

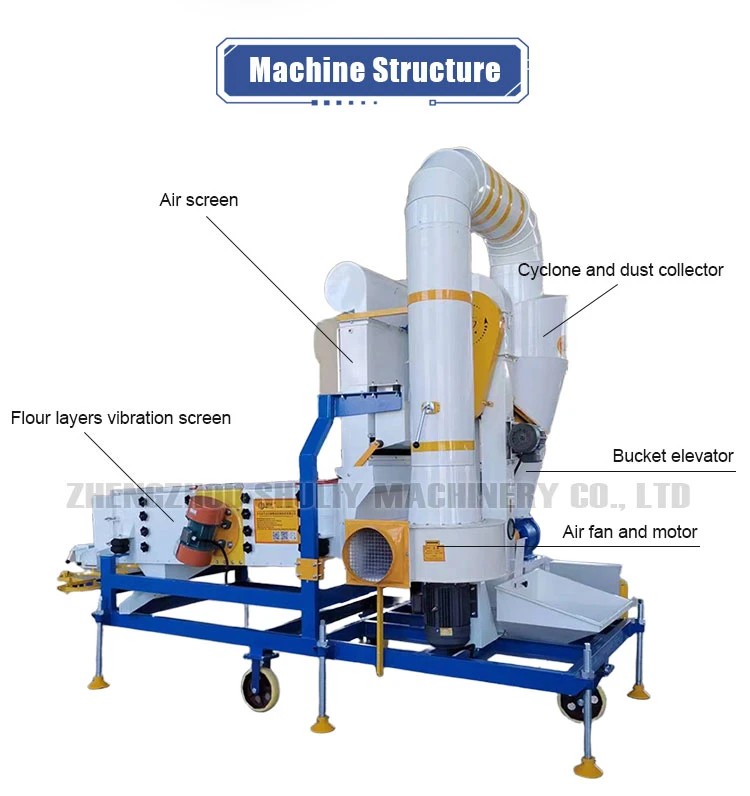

1. The cocoa bean cleaning machine consists of a lifting device, screening device, air separation device, electronic control unit, and travel device.
2. The overall structure is compact, easy to operate, and flexible, suitable for towing by various vehicles.
3. The entire cocoa bean cleaning machine is easy to clean, effectively preventing contamination and ensuring seed purity.



1. The cocoa bean cleaning machine is a basic cleaning device that combines air separation and screening. The air separation function is primarily accomplished by a vertical air screen, which adjusts the airflow speed to achieve separation. Lighter impurities are drawn into a spiral dust collector for centralized removal, while finer materials pass through the air screen and enter the vibrating screen.

2. The vibrating screen can remove both large and small impurities and separate the selected materials into three categories: large, medium, and small particles, which are discharged from different outlets. By replacing the screens with different specifications, you can meet the sorting requirements of different materials.
