Corn Thresher Machine



Product introduce

This series of corn threshers is widely applied for livestock breeding, farms, and household use. There are four different models of the corn thresher. The biggest corn thresher( 5TY-80D) is mainly used for shelling the maize from cobs under the condition of not damaging the cobs, with features of reasonable structure, steady performance easy operation, and so on.

一Product introduce

This series of corn threshers is widely applied for livestock breeding, farms, and household use. There are four different models of the corn thresher. The biggest corn thresher( 5TY-80D) is mainly used for shelling the maize from cobs under the condition of not damaging the cobs, with features of reasonable structure, steady performance easy operation, and so on.



Advantages

1. Saving the labor and time through a conveyor belt.

2. The elevator can transport corn kernels directly into the container, saving much time.

3. Breakage rate Below 1.5%. Good performance of impurity separation, separate the impurities thoroughly.

4. You can choose either a diesel engine or a motor.

5. The maize thresher machine is equipped with wheels and brackets for easy fixing and movement.

6. The slanting design of the feeding entrance lowers the feeding height, convenient for feeding, and the automatic feeding hopper can save energy in placing the corn.

三Working principle

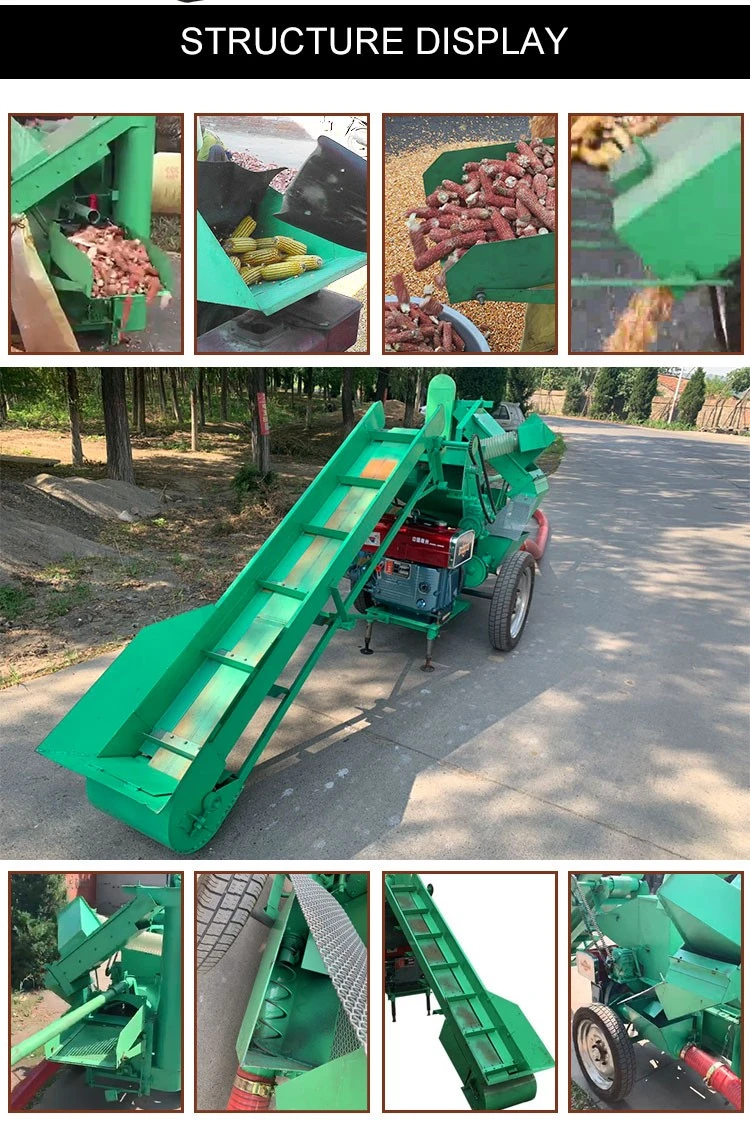

1. The corn threshing machine is composed of a feeding hopper, upper and lower housing internal threshing, and rolling device, an air separation system is composed of an elevator, fan, chaff absorber, vibrating cleaning screen, frame, transmission system, and so on.

2. Feed the corn into the conveyor, corn cob goes into the threshing chamber. After threshing and separating, corn seeds and a small amount of debris go into the stirring dragons from the concave board. Mixed grain materials, go into the cleaning sieve through such as the dragon and elevator, and impurities smaller than grain drop off from the screen hole. grain and other major impurities move along with the screen to the outlet.

3. When it arrives in the absorbers, small impurities are discharged out by the absorber. Grains go into the grain-collecting device from the cleaning sieve. The corn cob after threshing is discharged from the straw outlet.
