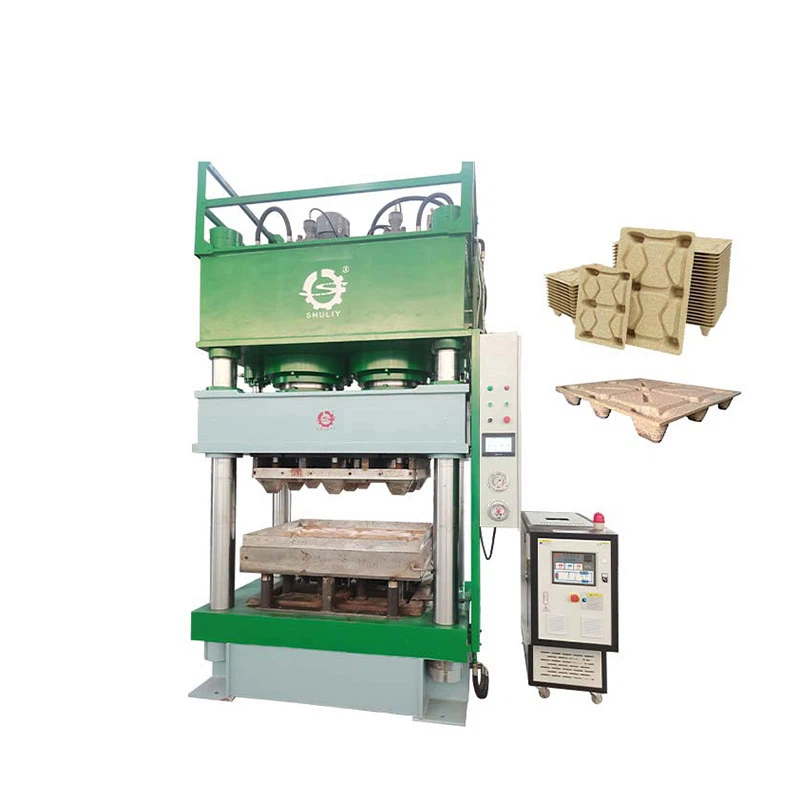

Wood Tray Press Machine

The Wood Tray Press Machine is an advanced and versatile piece of equipment designed for the efficient production of wooden trays. Crafted with precision engineering, this machine streamlines the tray-making process, offering a range of features to meet the demands of modern woodworking enterprises.

Pressure	800Ton
Hydraulic oil cylinder diameter	320
Hydraulic oil cylinder quantity	4
Feeding way	Manual feeding
Lifting oil cylinder	Diameter 100*2
Heating temperature	150 degree
Main motor	7.5kw
Pallet density	850kg/cubic meter
Capacity	120-144pce per day(16 hours)
Time for enough pressure	35 seconds
Time for one piece	450 seconds
Pallet size	Pallet size less than 1300*1250mm(can make 2-3 letter on mould)
Weight	11500kg
dimension	2300*1300*4300mm



1. The control system of the hydraulic press has two working modes: manual and semi-automatic.
2. The hydraulic system adopts a two-way cartridge valve integrated system, and the electrical system adopts integrated circuit control (PLC programmable controller is also optional)
3. The power system of the hydraulic press is installed on the ground for easy maintenance and repair.
4. The hydraulic press is equipped with an independent movable control cabinet for easy operation.
5. The hydraulic press can limit pressure, limit range, position, and process actions.



1. Surface processing: Surface processing uses large grinders and large CNC floor boring and milling machines for finishing processing. The parallelism and flatness are high in precision. The universal T-shaped slot layout facilitates the installation of various molds.
2. Oil cylinder piston rod: The oil cylinder piston rod is finely ground by a cylindrical grinder. A good surface finish is more conducive to sealing with the seal and is not easy to scratch the seal. It effectively prevents oil leakage and greatly extends the service life of the oil cylinder.
3. Filtration system: There are four filtration systems inside the pump station: oil suction filtration - fence filtration - magnet filtration - oil outlet filtration; the improvement of the filtration system can effectively maintain the purity of the hydraulic oil, prevent stuck valves, and extend the use of the machine. life.
4Electronic control system: The control system adopts integrated circuit control, and the electrical appliances are all well-known brands.

Established in 2011, Zhengzhou Shuliy Machinery Co., Ltd has always adhered to the development concept of environmental protection, committed to the research of recycling machinery.

So far, we had produced more than 30 kinds of recycling machines, including plastic granulator machines, egg tray machines, copper wire recycling machine, shredder machine etc. We always focus on quality throughout the whole process of production and services.

In addition, Shuliy has a group of professional technical and sales teams, who concentrate on providing customers with a complete set of production programs, giving full play to the economic value, use value and environmental protection value of the machine, and help earning more benefits for customers. At present, Shuliy machines have been exported to the United States, Canada, Australia, Malaysia, Indonesia,South Africa and other countries. In the future, Shuliy Group will as always create more value together with you.

With the unique effect of high automation, stable and reliable performance, the company has won the trust and good evaluation of many customers
