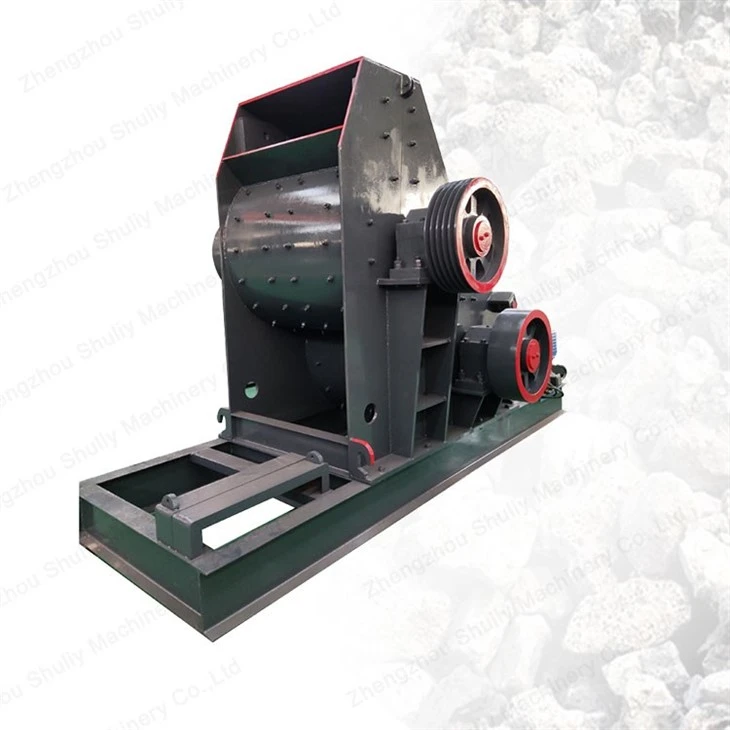

Portable Hammer Mill

The hammer crusher mainly relies on impact energy to complete the crushing operation of materials. When working, the motor drives the rotor to rotate at a high speed, and the material enters the crusher cavity evenly, The high-speed rotating hammer impacts, shears, and tears the material, causing the material to be broken. The head rushes to the baffle plate and sieve bar in the frame, and the material larger than the sieve hole size is retained on the sieve plate and continues to be hit and ground by the hammer until it is crushed to the required discharge particle size, and then discharged out of the machine through the sieve plate.



Model	Input Size (mm)	Output Size (mm)	Capacity(t/h)	motor ratio(kw)	Dimensions(m)	Weight(t)
SL200*300	<=100	<=10	3-5	7.5	0.8*0.5*0.8	0.5
SL400*300	<=100	<=10	5-10	11	0.9*0.6*0.8	0.8
SL600*400	<=120	<=15	10-25	18.5	1.2*1.05*1.2	1.5

The hammer crusher is used for crushing all kinds of medium-hard and weakly abrasive materials. The compressive strength of the materials does not exceed 100MPa, and the moisture content is less than 15%. The crushed materials are coal, salt, chalk, gypsum, bricks, limestone, etc. It is also used for crushing fibrous structures, broken wood with strong elasticity and toughness, paper or crushed asbestos cement waste to recover asbestos fibers, and so on.

Features of Hammer Crusher:
1. The overall design has a beautiful appearance, compact structure, fewer wearing parts, and convenient maintenance. It is an upgraded product.
2. The crushing ratio is large, generally 10-25, and the highest is 50.
3. The crushing equipment has a high degree of automation, a large crushing ratio, and high production efficiency. The crushed product is in the shape of a cube, with low needle-like content, no internal cracks, and high compressive strength.
4. The hammerhead is cast with new technology, which has high wear resistance and impact resistance.
5. The body structure of the hammer crusher is sealed, which solves the problem of dust pollution and dust leakage in the crushing workshop.
6. High production capacity, good grain shape of finished product, low energy consumption per unit product.
7. Product granularity can be flexibly adjusted according to user needs.
