Heavy Duty Chipper Shredder

The heavy duty chipper shredder adopts chain plate intelligent feeding, which can automatically adjust the feeding speed according to the main motor load. It allows the machine to operate at full load and avoid a no-load operation, making feeding smoother and greatly improving production capacity. It is an ideal recommended equipment for biomass power plants. Integrated wood crusher equipment is widely used in waste formwork processing plants, bamboo plywood processing plants, artificial board plants, composite board plants, power plant boiler raw material combustion, etc., as well as individual wood processing plants. The wood crusher can also be broken into pieces of about 5 to 8 centimeters in size. It uses an all-steel flying knife or an ingot knife hammer. This equipment is suitable for a wide range of raw materials and has high output. It can produce about 10 to 15 tons per hour, and the processed materials can generate electricity. The plant is burned as raw material.

Model	SL-1300	SL-1400	SL-1600
Feeding inlet size	1300*500mm	1400*800mm	1600*800mm
Feeding maximum diameter	400mm	500mm	600mm
Blades(pcs)	20	32	66
Capacity	8-10t/h	10-15t/h	20-30t/h
Total power	156.5kw	213.5kw	233.5kw

1. Some models of this series adopt a foundation-free design, which can adapt to the installation and use of equipment under different geographical and terrain conditions. It is not affected by seasonal climate and other external conditions, saving installation time and saving users the cost of making foundations. losses of human, material, and financial resources. 2. Some models of this series adopt automated control, automatic feeding, and discharging, which improves production capacity, separates humans and machines, and improves machine operation.
coefficient.
3. Some models of this series use chain plates to transport materials. Compared with traditional belt feeding, the materials can be fed more smoothly and the production capacity can be greatly improved.
4. All models in this series adopt
-Small cutter with a long service life
, low maintenance cost, and high production efficiency.
5. This series of machines are all equipped with a secondary discharging system. Users can change the discharging direction according to their needs and use it flexibly.

heavy duty chipper shredder is suitable for:

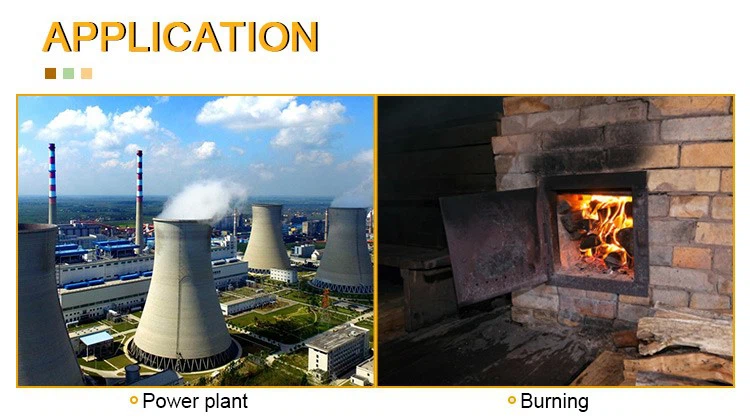

Machines for crushing various board scraps, discarded boards, packaging boxes, logs, scraps, large pieces, basket materials, pipes, boards, wood, etc. After crushing, the wood is used to make plywood, synthetic board furniture, etc. The wood crusher can also crush wood into wood chips for incineration and power generation. It has been widely used in the resource recycling industry and the domestic waste reuse industry.

The most important thing in the template crusher is the bearing. So, what is the installation method of the bearing?

1. Put the bearing box with the bearing installed on the shaft, screw on the round nut, and fasten the bearing end cover to the bearing box.
2. Install the asbestos pad, liquid outlet elbow, and liquid outlet pipe fittings from the output order of the template crusher, and fix them on the support seat.
3. The motor support device is tightened with bolts on the bearing seat of the template crusher, the coupling component is installed on the upper end of the shaft, the motor coupling is fastened to the motor shaft head with fastening screws, and the motor is installed on the motor. Support and tighten with bolts and nuts.
4. Install the shaft of the template crusher into the bearing seat, fix it with bolts, screw on the adjusting screw, install the bearing on the support seat, and set the water retaining ring in the appropriate position of the lower bearing.
5. Fix the coupling body on the bearing seat, install the pump cover on the lower part of the coupling body, install the impeller on the lower part of the shaft and tighten it, install the front cover of the pump body in sequence, and fix it with bolts, and adjust it with the adjusting screw at the bearing box. After adjusting the gap between the impeller and the front cover, tighten it with nuts and bolts.
