Products Description
As the volume of discarded Off-the-Road (OTR) tires from the mining, construction, and industrial sectors continues to rise, the challenge of how to effectively recycle and dispose of these massive tires has become a major hurdle for waste tire processing facilities. Due to their immense size, extremely thick rubber layers, and internal high-strength steel wire structures, processing OTR tires using traditional tire recycling equipment is an exceptionally difficult task.

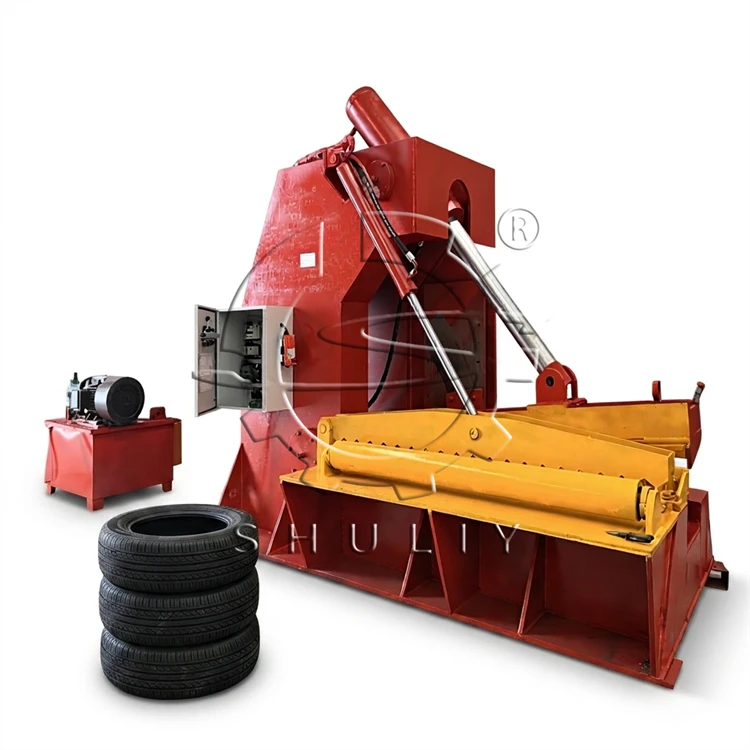

Our developed otr tire cutting machine is specifically engineered to cut large solid and steel-reinforced OTR tires, segmenting them into manageable blocks. This process renders subsequent shredding and recycling operations significantly more efficient, safer, and more cost-effective. This machine features a heavy-duty frame structure and is equipped with a hydraulic cutting system, ensuring stable and reliable operational performance within continuous industrial work environments.
Products Parameter
|
Type |
Waste Tire Cutting Machine |
OTR Tire Cutter |
|
Motor power |
7.5kw |
7.5kw |
|
Handling of tyre sizes |
900-1200mm |
1400-4000mm |
|
Capacity |
60pcs/h |
Two cuts a minute |
|
L*W*H |
1.7*0.8*1.85m |
3.13*1.65*2.7m |
|
Weight |
1400kg |
7200kg |
How the OTR Tire Cutter Works
The otr tire cutting machine employs a hydraulically driven cutting system capable of segmenting tires into blocks using powerful shearing force.
Step 1: Tire Positioning
The discarded OTR tire is securely positioned within the machine's designated cutting area.
Step 2: Hydraulic Clamping
The hydraulic system activates to firmly clamp and secure the tire in place throughout the cutting operation.
Step 3: Blade Cutting
High-strength cutting blades descend at high speed to efficiently sever the tire's structural components.
Step 4: Block Output
Once segmented into blocks, the tire pieces are ready to proceed to subsequent processing stages-such as shredding, steel wire separation, or rubber granulation. With a cutting speed of two cycles per minute, this machine significantly boosts the efficiency of the pre-processing phase.
Products Features
1. Heavy-Duty Structural Design
The reinforced machine body structure ensures exceptional stability when processing massive OTR tires.
2. Broad Tire Compatibility
The otr tyre cutting machine can process steel-belted tyres with diameters ranging from 1,400 mm to 4,000 mm, making it suitable for the vast majority of mining and industrial OTR (Off-the-Road) tyres.
3. Hydraulic Cutting Power
Delivers powerful cutting force, sufficient to handle thick rubber layers and steel-reinforced tire structures.
Products Benefits
1. Increased Processing Efficiency
The pre-cutting process reduces the load on downstream shredders, thereby optimizing the overall production workflow.
2. Reduced Maintenance Costs
Cutting tires into smaller segments minimizes wear and tear on downstream shredding equipment.
3. Reduced Labor Intensity
The automated hydraulic cutting system minimizes the need for manual handling.
4. Optimized Transport and Storage
Cut tire segments occupy less storage space and are easier to transport.
