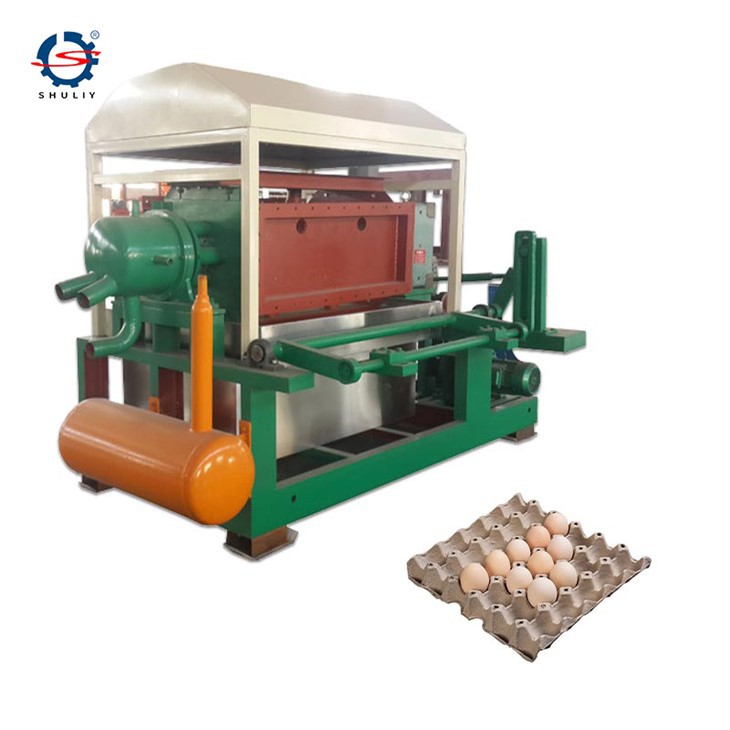

Paper Egg Tray Making Machine



The Paper egg tray-making machine has a very strong awareness of environmental protection throughout the production process, from the main raw materials used to the end of the entire production process. Pulp molding small egg tray production line is a machine that produces egg trays just by looking at the name, and it occupies a very important position in the production of egg trays. The use of pulp molding small egg tray machines has asked laborers to use traditional production methods. And it also effectively improves the efficiency of production, which is the era of machinery that egg tray production has entered.



Molded egg trays, molded egg boxes, molded fruit trays and other tray products are made of waste newspapers, waste carton paper, waste printed matter, and scraps from various paper product factories, etc., and are hydrolyzed, filtered, and water injected. and other processes to prepare a high-density slurry, and then vacuum absorb it into a wet billet product on a special metal mold. The formed wet billet is then dried and hot-pressed. In the production of molded egg trays, molded egg boxes, molded fruit trays and other tray products, the main drying energy can be selected: 0# diesel, natural gas, LPG, according to the local price of these energy sources, customers can choose Choose the one with the cheapest price; coal or heavy oil can also be used, but it needs to be utilized through steam or heat transfer oil boiler, and the investment cost and floor area of the equipment will increase.



The Paper egg tray making machineuses waste newspapers, waste carton paper, waste printed matter, and scraps from various paper product factories as raw materials. It is prepared into a concentrated slurry by hydraulic disintegration, filtration, and water injection. The special metal mold is vacuum-absorbed to form a wet billet, and the formed wet billet is then dried and hot-pressed. The main raw material for the pulp molding egg tray machine is waste paper, which is rich in sources and low in price, and belongs to the comprehensive development and utilization of waste.



The water in the production process is used in a closed cycle, without waste water and waste gas discharge. After the molded product is used, its waste can be recycled and reused like ordinary paper. Even if it is discarded in the natural environment, it is easy to rot and decompose into organic substances like ordinary paper. , are all environmentally friendly products.



It is used for recycling waste paper, cartons, etc, turn waste into treasure.

Production line:



Carton pulp making system--pulp refining system--egg tray forming system--drying system--egg tray packing machine

Working flow chart:











Application:



It is used for recycling waste paper, cartons, etc, turn waste into treasure.



Raw material:







Final product:









Model	SL-3*1	SL-4*1	SL-3*4	SL-4*4	SL-3*8	SL-4*8	SL-5*8
Capacity	1000pcs/h	1500pcs/h	2000pcs/h	2500pcs/h	3000pcs/h	4000pcs/h	5000pcs/h
Total Power	32kw	40kw	65kw	82kw	95kw	112kw	121kw
Paper Consumption	80kg/h	120kg/h	160kg/h	200kg/h	240kg/h	320kg/h	400kg/h
Water Consumption	160kg/h	240kg/h	320kg/h	400kg/h	480kg/h	640kg/h	800kg/h
Electric Consumption	18kw/h	32kw/h	45kw/h	58kw/h	65kw/h	78kw/h	95kw/h
Worker	3-4	3-4	4-5	4-5	5-6	3-4	3-4













Q: What services do you offer?
A: We offer excellent quality machinery, advanced technology, and outstanding service.

Q: What are your warranty terms?
A: We offer different warranty times for different products. Please contact us for detailed warranty terms.

Q: What is the advantage of your company?
A: Our company has a professional team and a professional production line.

Q: Could you provide us with a better price?
A: Of course, we can provide you with an accurate quotation based on your specific requirements and order volume.
