Products Description

pet bottle blow moulding machine is a kind of equipment which can make plastic particles into hollow containers by blowing process. The common types of machines include one-time forming hollow extruder using PP and PE, two-time forming injection and pull blow machine using PET, PC or PP, and newly developed multi-layer hollow extrusion and stretch blow molding. Nowadays, environmental protection plastics made of PET are commonly used.

pet bottle blow moulding machine

Products Description

Bottle blower Data sheet

Output	Bottle shape	100-200PCS/H
SIZE	Bottle diameter	160mm-270mm
	Bottle height	320mm-490mm
	Bottle cap diameter	15mm-100mm
Mould	Cavity	1cavities
	Mould thickness	200~360mm
	Effective area of mould	*480340mm**
Power	Voltage	380v 3Phase /220v 3Phase 50/60HZ
	Max power	34kw/10-15kw
	High pressure air compressor	1.6m3/min 3.0MPa
	Cold dryer	2.0m3/min 3.0MPa
Chiller water	Cold water quantity	15L/min
Dimension	Long width height/weight	2400*820*1900mm/950kg
Oven size	Long width height/weight	2800*700*1700mm/350kg

pet bottle blow moulding machine

Feature

1. This machine has low energy consumption, small volume and convenient maintenance.
2. Easy to operate
The function of the auxiliary machine:
1. air compressor is the source of air supply to the bottle blowing machine (used for bottle blowing and equipment action);
2. the cold dryer is the air source and oil content on the cooling air compressor;
3. the filter is used to filter the air of the air compressor to avoid impurities and dirt entering the internal valve of the equipment, which will cause the equipment to fail to operate normally.
4. The cold water machine is used for cooling the mold. The parts of the mould must be cooled by the chiller or cooled with tap water.

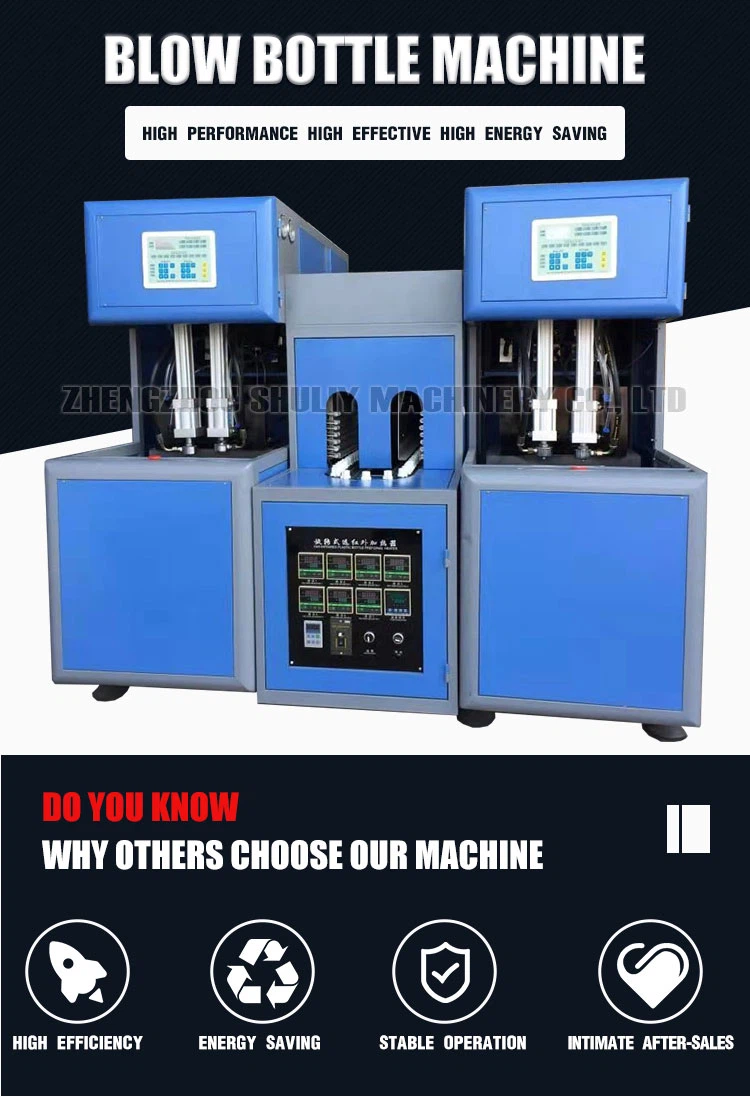

pet bottle blow moulding machine hq-100 semi-automatic bottle blowing machine is specialized in cooking mineral water bottles, beverage bottles, oil, cosmetics, pesticides, civil medicine bottles, pet as raw material and other plastic containers within 10-20 liters. It has the characteristics of small volume, low power consumption, convenient operation and maintenance.

pet bottle blow moulding machine

Advantage

1. Controlled by imported electrical components, it has the advantages of precise performance, strong stability and simple operation.

2. Adopting double-question double-toggle mold clamping structure, strong clamping force, stable and reliable movement, fast speed and convenient mold installation.

3. There are two methods of operation: manual and fully automatic; safe, reliable and unique valve position design makes the gas path clear at a glance.

4. It has the advantages of low investment, high efficiency, low power consumption, LED lights make the operation very convenient for employees, simple maintenance, and anti-pinch probes to improve the safety performance of the equipment.

5. The use of famous-brand pneumatic components and solenoid valves have high sensitivity, fast switching speed, low failure rate, safe and reliable operation, high control accuracy and fast response.

pet bottle blow moulding machine

Working Principle

1. Preheat

The bottle preform is irradiated by an infrared high-temperature lamp, and heated, softened.In order to maintain the shape of the bottle mouth, the preform mouth does not need to be heated, so it is necessary to equip cooling device to cool it.

2. Bottle Molding

In this stage, the preheated bottle preform is placed in a blow mold that has already been prepared, and the inside is subjected to high-pressure inflation to blow the preform into a desired bottle. It is needed to equip air compressor.

Bottles Making Craft

In the processing of making bottles, the filter, cooling machine, air compressor are optional by customers. If customers need, we can also equip.
