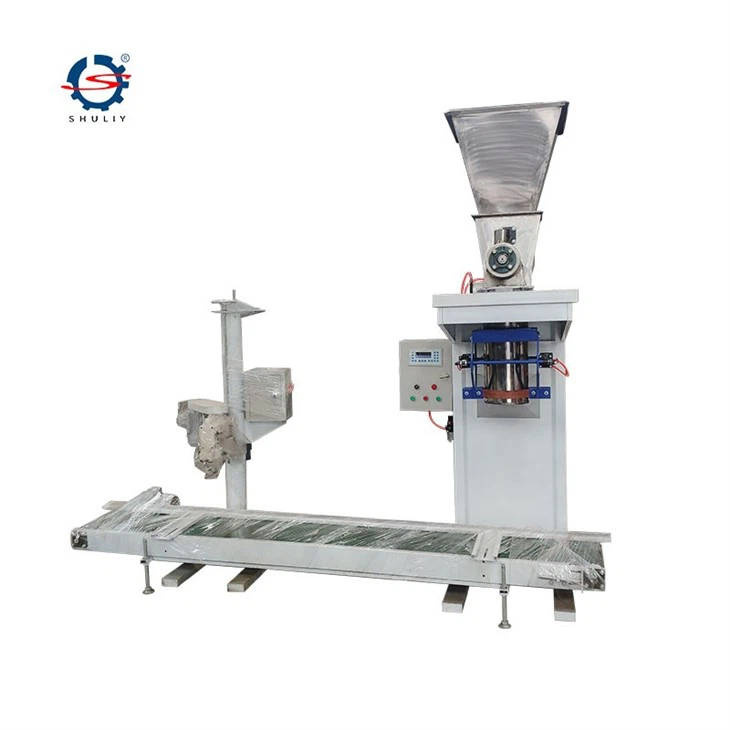

Big Bag Flour Filling Machine



The big bag flour filling machine is suitable for filling big bags of flour with different packaging specifications. It is widely used in food processing plants, flour mills and other grain processing industries. It greatly improves the efficiency of the production line, reduces manual operations, improves packaging accuracy, and meets the needs of various markets.

The big bag flour filling machine adopts advanced automatic control technology, which can accurately control the weight of each filling, and realizes automatic weighing through advanced sensors and data processing systems. The equipment is compact in design and easy to operate. It can be smoothly connected with other equipment such as conveyor belts and sealing machines to form an efficient automatic production line. According to customer needs, the capacity of the filling machine can be customized, and it can adapt to packaging from 5kg to 50kg or even larger capacity.





Quantitative packaging machine
Packaging weighing range:	25-50KG
Packaging speed:	300~400 packages/hour
Measuring accuracy:	static ≤± 0.1%, dynamic ≤± 0.2%
Supply air source:	air pressure: 0.6MP, air consumption: 05M3/H
Power supply:	packaging scale: AC220V/50HZ
Conveying seam bag	AC380V/50HZ
Total power:	1.7KW
Installation height:	2550MM
Temperature range:	- 10~40 °
Relative humidity:	≤ 90% RH (no condensate)
Overall dimension:	3000mm × 1150mm × 2550mm









Large bag flour filling machines are widely used in the following industries:

Flour mills are used for flour packaging and are suitable for processing grains such as wheat, corn, and rice.
Grain storage and logistics: through efficient filling functions, suitable for grain storage and transportation.
Food processing industry: used for packaging various powdered materials, not limited to flour, but also suitable for filling other powdered raw materials such as bean flour, corn flour, and rice flour.
Agricultural product distributors: provide efficient packaging solutions for retail, wholesale, and import and export goods trade.



Filling accuracy: High-precision sensors and digital control systems ensure that the weight of each bag of flour is accurate. The equipment has a quick adjustment function and can adapt to different packaging requirements.
Operation interface: Equipped with a high-definition touchscreen interface, the operation is simple and intuitive. The operator can easily set parameters, monitor the operating status of the equipment, and adjust the filling volume in real-time.
Efficient conveying system: Equipped with an automatic conveyor belt system, it automatically transports flour to the filling position, reducing manual handling and operation steps.
Sealing system: Through a pneumatic or mechanical sealing system, the sealing of the packaging bag is ensured to prevent flour leakage and ensure safety during transportation.
