Products Description

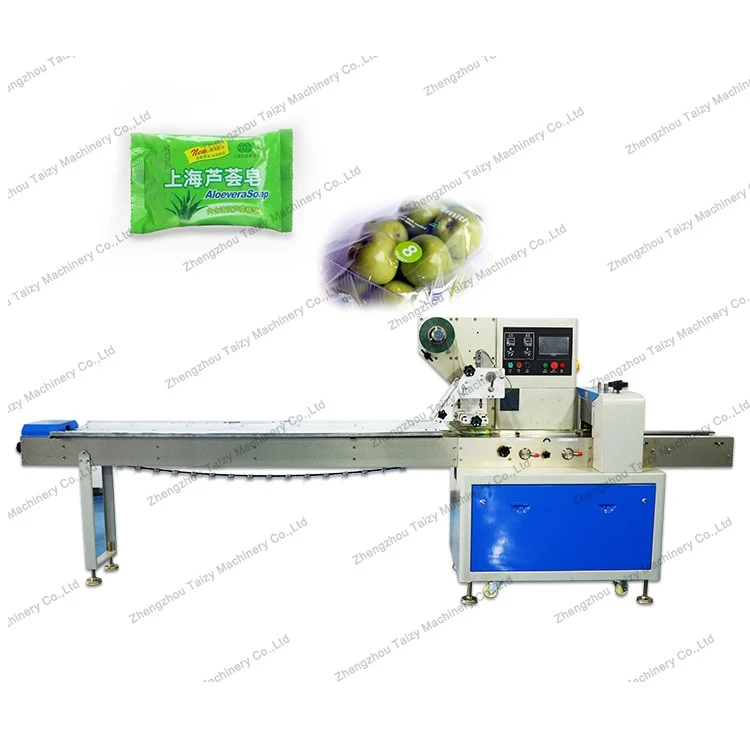

This automatic bread packing machine is designed for packaging fixed-shaped materials into pillow-style packages. It is suitable for packaging various regularly shaped solid products, including food items such as biscuits, bread, mooncakes, and candies, as well as commodities and industrial parts. For small or separate articles, they must be placed into boxes or bundled together before using this machine. This packaging method is also suitable for packing non-solid products.
Specification
|
Model |
SL-250 |
SL-320 |
SL-350 |
SL-450 |
SL-600 |
|
Film Width |
Max 250 mm |
Max 320mm |
Max 350mm |
Max |
Max 600mm |
|
Bag Length |
45-220 mm |
120-280mm |
120~280mm |
130-450mm |
120-450mm |
|
Bag Width |
30-110 mm |
50-160mm |
50~160mm |
50-180mm |
50-180mm |
|
Product Height |
Max.40 mm |
Max.60mm |
Max. 60mm |
Max.70mm |
Max.70mm |
|
Capacity |
40-330 bag/min |
40-230 bag/min |
40-230 bag/min |
30-180 bag/min |
30-180 bag/min |
|
Power |
2.4 kW |
2.6 kW |
2.6 kW |
2.6 kW |
3.6kw |
|
Weight |
800 kg |
900 kg |
900 kg |
900 kg |
960kg |
|
Dimension |
3770*670*1450 mm |
3770*720*1450 mm |
4020*745*1450 mm |
4020*820*1450 mm |
4380*970*1500 mm |
Feature
New design, beautiful appearance, more reasonable structure, more advanced technology
Imported PLC computer control system, color touch screen, easy to operate, intuitive and efficient
Imported film transport system, imported color standard sensor, accurate positioning, excellent performance, beautiful packaging
Multiple automatic alarm protection functions to minimize damage
Diversified bag shape, can provide customers with pillow bag, pocket, hole bag, joint and so on
Touch screen and stable and reliable PLC control, bag-making, metering, filling, sealing, coding, bag-cutting one-time completion
The film is controlled by servo motor to realize high precision positioning and accurate size
External film release mechanism is adopted to facilitate the installation of packaging film
Vertical sealing and sealing process, automatic adjustment of deviation, greatly reducing labor intensity
Advantage
Dual frequency conversion controller: Bag length is set and cut instantly without the need to adjust idle travel, achieving precision in one step, saving both time and film.
User-friendly interface: Convenient parameter setting; features a fault self-diagnosis function for easy troubleshooting with fault display at a glance.
High-sensitivity photoelectric color mark tracking: Digital input for sealing and cutting positions ensures greater accuracy.
Independent PID temperature control: Compatible with a wide range of packaging materials for enhanced versatility.
Positioning stop function: Prevents knife sticking and film wastage.
Simple transmission system: Ensures reliable performance and easy maintenance.
Software-based control: Allows for convenient function adjustments and technology upgrades, keeping the system up to date.
