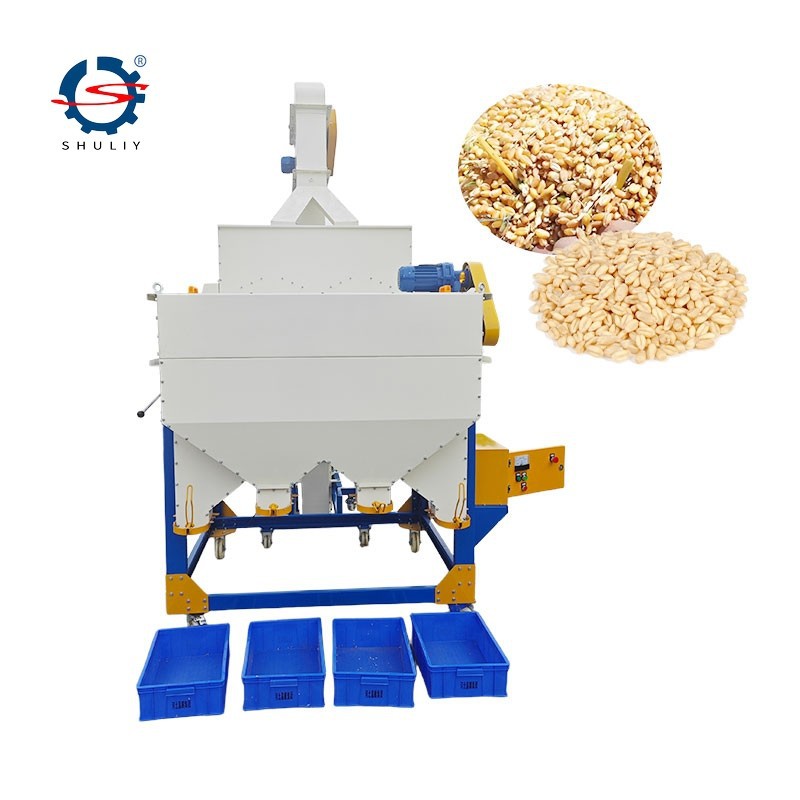

Cocoa Bean Magnetic Soil Separator





The cocoa bean magnetic soil separator utilizes the small amount of iron in soil clods to separate them using high-strength magnets, effectively removing magnetic impurities from grain seeds.



Size L×W×H	2050*1850*2200 mm(main machine)
Weight	600 kg
Capacity	5 T/H
Force	≥18000 Gs
Voltage	380V(220V/440V need customized) 50/60hz 3 phase
Power	Total:1.5 kw Bucket elevator motor:0.75kw roller motor: 0.75kw(frequency control)



1. This cocoa bean magnetic soil separator machine is specifically designed for removing clods from agricultural crops, including beans, seeds, corn, wheat, rice, peanuts, sunflower seeds, buckwheat, millet, sesame seeds, and soybeans.
2. The electromagnetic vibrating feeder ensures an even distribution of material on the conveyor belt, achieving a clod removal rate of over 99%.
3. The adjustable separator allows for adjustment for materials of varying particle sizes, enabling a single machine for multiple uses.





1. The cocoa bean magnetic soil separator utilizes 304 stainless steel for tight magnetic sealing and minimal magnetic flux leakage.
2. The magnetic roller's magnetic field strength exceeds 18,000 gauss. This high magnetic field strength and wide magnetic separation surface ensure excellent separation performance.
3. The wide separation surface design, with a width of up to 1,300 m, ensures maximum processing capacity while improving separation performance.
4. The unique grain bulking device design ensures uniform grain distribution and requires no maintenance, significantly reducing losses caused by vibrating feeder damage.
5. The drive roller, magnetic separation roller, and tensioning roller are precision-turned and ground to ensure smooth, non-slip belt operation.
6. The cocoa bean magnetic soil separator machine can adjust the rolling speed with variable frequency to suit different seed varieties.



The cocoa bean magnetic soil separator's main components include a frame, conveyor belt, magnetic rollers, and an electromagnetic vibrating feeder. During operation, the material travels along the belt. As it passes through the magnetic roller area, it experiences a parabolic free fall. During this process, clods of soil are attracted by the high-strength magnets, changing their trajectory and being separated by the separator.
