Products Description

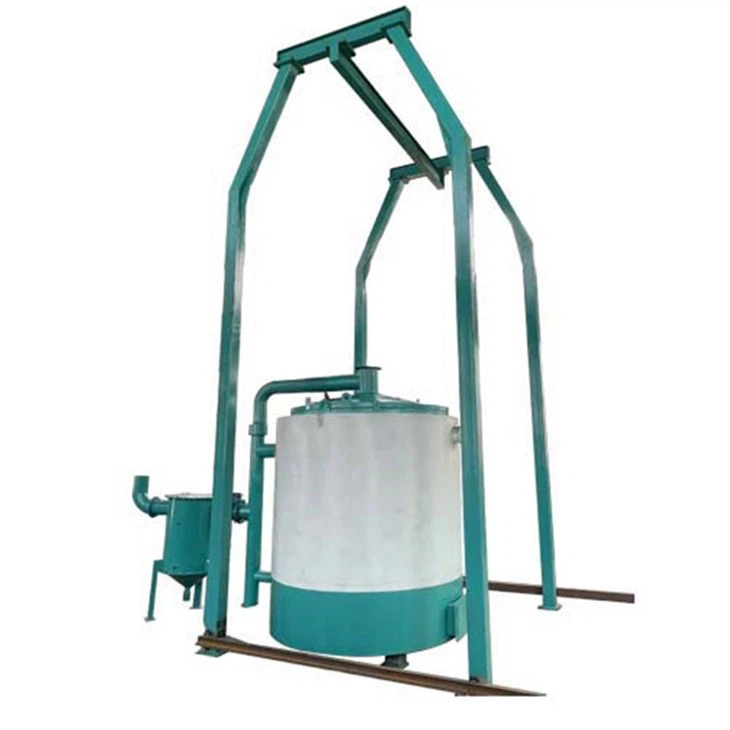

Hoisting carbonization furnace is one of the equipment used for carbonization of various carbon-containing biomass, which can convert biomass materials into high-quality carbon materials. The Hoisting carbonization furnace can control the temperature and carbonization time. During the carbonization reaction, the raw materials in the furnace will increase with the temperature in the furnace, thereby converting the organic matter in the biomass material into fixed carbon elements.

product-750-750

Product Specification

Model	Weight(kg)	Capacity(kg/circle)	Dimension
TZ-1	3000	1000	220022002200 *1
TZ-2	4800	2000	220022002200*2
TZ-3	5900	3000	220022002200*3
TZ-4	7000	4000	220022002200*4

Preparations before carbonization of hoisting carbonization furnace:

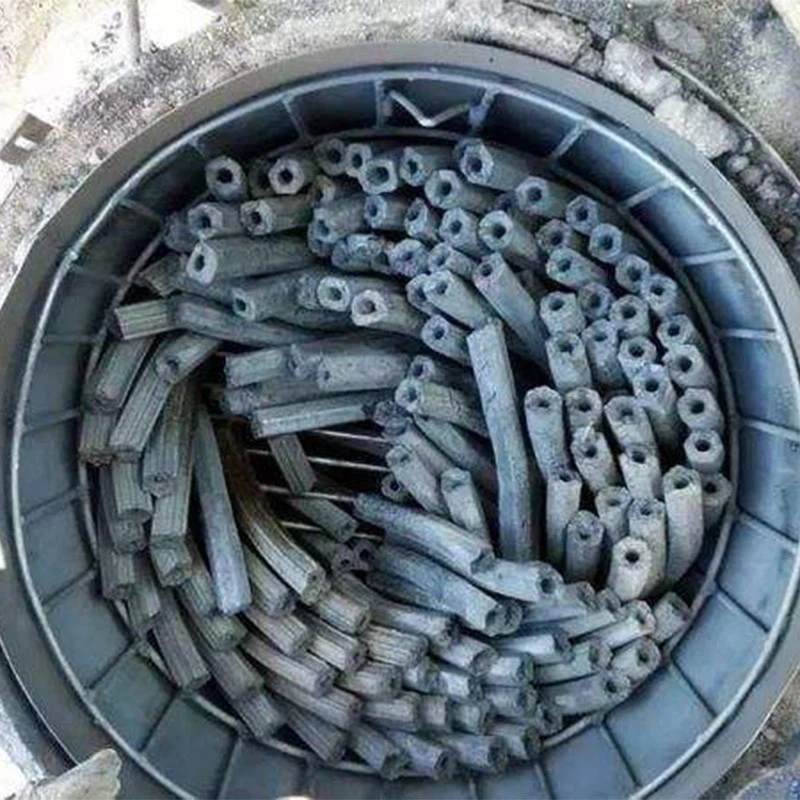

1. Install charcoal sticks: Put the charcoal sticks made by the charcoal making machine or the wood sticks with a moisture content below 12% into the large iron frame that has been welded in advance, and then put the iron frame into the carbonization furnace. The inner tank should be put on the inner tank cover; (It is recommended to put the three-layer iron frame of the inner tank of the carbonization furnace, which can be customized according to the height of the inner tank.) The height of the iron frame is generally 40-50CM).

2. Sealing: hoist the installed liner into the Hoisting carbonization furnace with a crane; connect the short pipes between the liners

The filter can be sealed with sealing cotton or wet fine sand; both ends of the short pipe are sealed with wet sand; air temperature

Meter installed and connected.

Here is a brief introduction of the "Hoisting carbonization furnace" product, highlighting its main features and functions:

Improved charcoal quality: By carefully controlling temperature and atmosphere, it produces uniform, dense, and highly carbonized charcoal.

Efficient energy consumption: The device incorporates an efficient energy utilization and heat recovery system to minimize energy consumption.

Intelligent control system: Operators can set and monitor these parameters through a touchscreen interface, enabling automated control and remote operation.

Safety and reliability: The device incorporates multiple safety measures, including temperature monitoring, pressure protection, and fire alarm systems.

Environmentally friendly and energy-saving: The equipment complies with environmental requirements and incorporates advanced flue gas treatment devices to effectively reduce emissions.

product-800-800

Versatile applications:

The equipment is suitable for carbonizing various biomass materials, including wood, straw, coconut shells, and fruit shells. It can be applied in fields such as biomass energy production, agricultural waste treatment, and environmental engineering.
