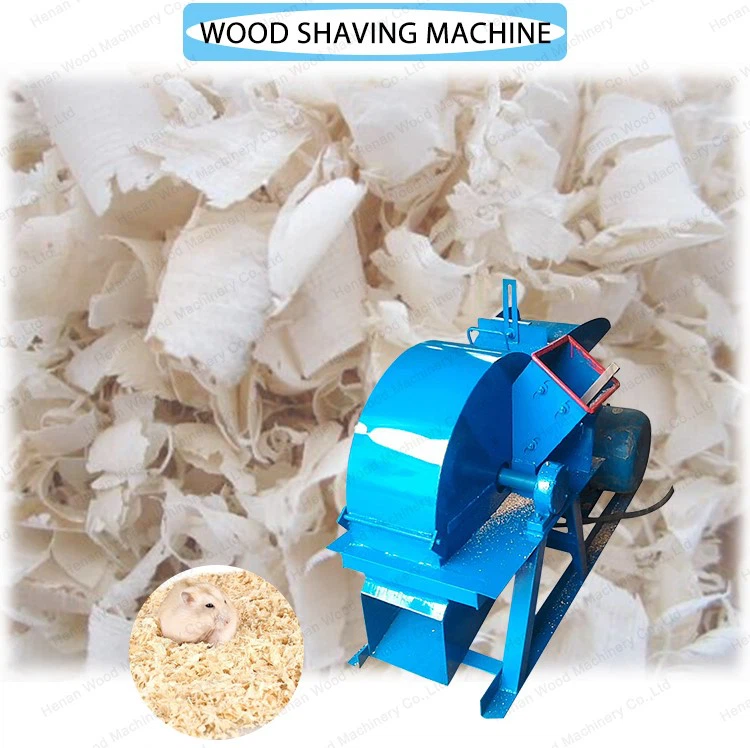

Wood Shaving Machine for Animal Bedding



The wood shaving machine for animal bedding is composed of three parts: upper body, middle body, and lower body. The middle body is equipped with a triple fixed ring, a crushing disc, and a fineness analyzer. The main wood shaving machine for animal bedding adopts alloy blades, which have high wear resistance and ensure high production capacity. It is capable of coarse crushing, fine crushing, and centrifugal crushing. The rotor of the crusher is driven by a motor, generating airflow that applies compressive and cutting forces to the material, thereby achieving the function of crushing.





Model	Capacity	Poweer	Feeding inlet size	Machine size
SL-420	300-500KG/H	11kw	150*120mm	1250*600*700mm
SL-500	500-600KG/H	18.5kw	180*160mm	1600*700*900mm
SL-600	600-800KG/H	30kw	200*180mm	1500*750*1200mm
SL-700	1000-1200KG/H	37kw	220*200mm	1956*1050*1200mm
SL-900	2000-2500KG/H	55kw	250*260mm	2000**1200*1000mm
SL-1000	2500-3000KG/h	75kw	280*290mm	2500*950*1100mm
SL-1200	3000-3500KG/H	90kw	420*400mm	2000*2000*1100mm
SL-1500	3500-5000KG/H	132kw	460*490mm	2800*1550*1300mm

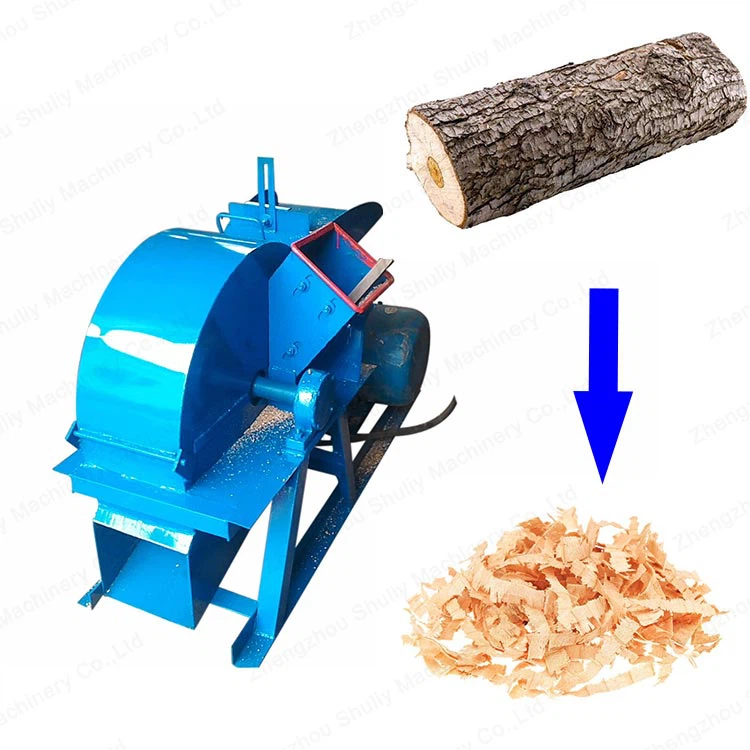

The feed port of the wood shaving machine for animal bedding adopts self-priming feeding, which replaces the direct feeding of the traditional shredder. The production is safe and secure. The pulley is driven by the motor to make the shredder rotor run at high speed. At the same time, the rotor generates high-speed airflow and rotates with the direction of the blade. , the material is accelerated in the airflow and repeatedly impacted, cut and rubbed, and subjected to three kinds of crushing at the same time, after triple crushing, the material is crushed evenly and the effect is good.







1. Steel material: the overall frame is made of steel, with high-strength working performance

2. Widen the feed port: When the machine is running, the feed port determines the size and speed of the feed. Widening the feed port allows you to choose a wider range of materials, and the feeding is convenient and free of material jams.

3. Baking varnish: The wood shaving machine for animal bedding adopts baking varnish technology, the paint will not fall off during use, and it is durable.

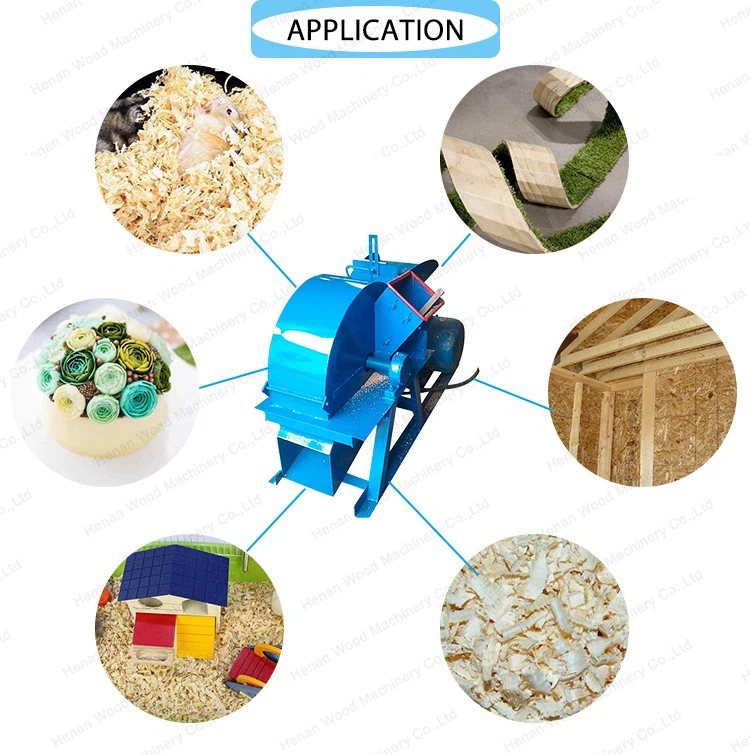

4. Applicable to a variety of logs and wood raw materials
