Products Description

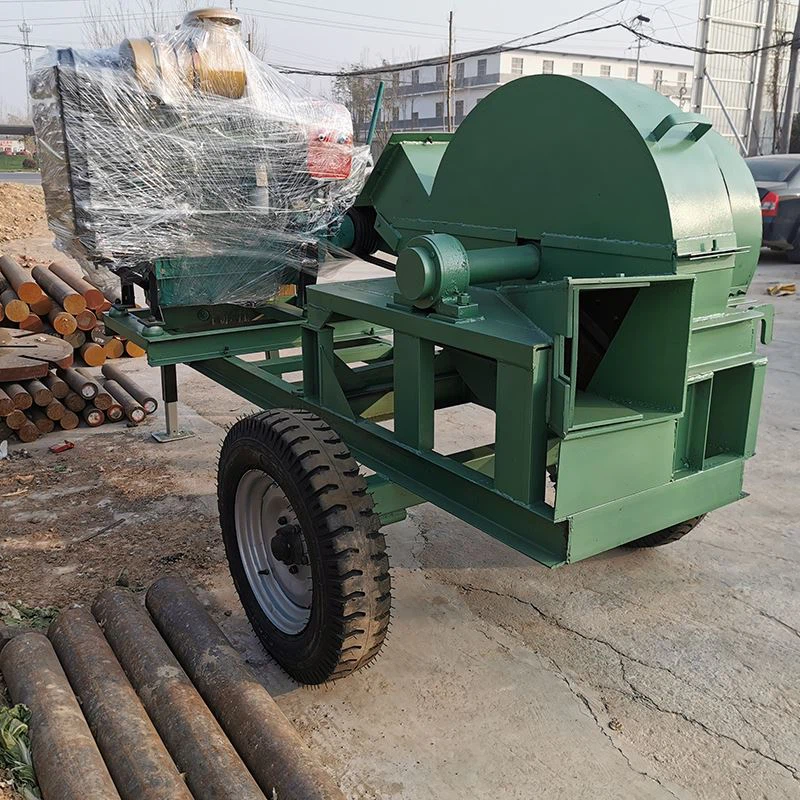

The best wood chipper shredder produced by our company is a specialized machine for producing premium wood chips. It is widely used in the preparation stages of papermaking, particleboard, medium-density fiberboard, and other industrial production processes, as well as for single wood chip production bases. The chipper is primarily designed to process raw materials such as logs, including pine, miscellaneous wood, poplar, fir, and bamboo.

This machine features a compact structure, small footprint, excellent slicing quality, and low power consumption, making it suitable for mobile operations. The disc wood chipper is extensively used in the preparation sections of small- and medium-sized particleboard and fiberboard production enterprises. It is also ideal for individual households producing commercial wood chips.

The structure and operating principles of different wood chippers vary, so adjustments and flexible operation methods are required based on actual production needs. The chipper offers options for both low-voltage and high-voltage motors, with two drive methods: large pulley drive and direct drive. Feeding methods include horizontal and inclined feeding, and discharging methods are available as upper discharge and lower discharge.

best wood chipper shredder

Products Description

models	Blade Diameter(mm)	power(kw)	capacity(t/h)	rotation speed(r/min)	weight(kg)	Dimensions(mm)
420	420	7.5/11	0.8-1	2600	140	1300x600x710
500	500	18.5/22	1.5	2400	210	1550x700x1000
600	600	30/37	2	2200	320	1600x730x1050
700	700	37/45	2.5	2200	420	1670x860x1150
900	750	55	4	1500	800	1700x960x1250

Structure and Characteristics:

The best wood chipper shredder is composed of a frame, cutter head, feed port, cover shell, electric control system, and more. To continuously meet market demands for high quality, high efficiency, and advanced functionality, our company has been consistently upgrading and improving the disc chipper series year after year to enhance product performance.

Currently, the cutter head in our disc chipper series features a wear-resistant chromium-plated cushion plate. The flying knife, bottom knife, and flying knife bolt are all made from special high-grade steel. For large disc chippers, the tool-changing door is available in two types: an oil-cylinder-driven push-pull type and a manual type, allowing users to choose based on their needs.

By incorporating new technology and innovation, our disc chipper series- including large disc chippers, root chippers, plate chippers, wood planers, and wood slicers- delivers high output, low energy consumption, and excellent cost-performance ratios.

best wood chipper shredder

Maintenance:

Electrical Safety: Ensure proper electrical safety. Wire the motor strictly according to the specifications on the label, and connect the ground wire securely before starting the slicer.

Pre-Startup Check: Before starting the machine, manually turn the belt pulley to let it run idle. Verify that the cutter head rotates normally and ensure no metal debris enters the cutting chamber. If abnormal sounds occur, stop immediately and address the issue before proceeding.

Moisture Content: To ensure a high qualified rate of wood chips and extend the service life of the flying knives, the moisture content of raw materials should ideally be between 30% and 40%. If the wood is too dry, add an appropriate amount of water as needed during slicing.

Tool Maintenance: If the qualified rate of wood chips decreases, sharpen the cutting tools using specialized sharpening equipment. This ensures the cutting edge angle and sharpness are maintained. Our company offers dedicated knife-sharpening equipment.

Tool Clearance: Adjust the tool clearance to be greater than 0.2mm but less than 0.4mm for optimal performance.

Instruction Manual: Carefully read and follow the instructions before use.
