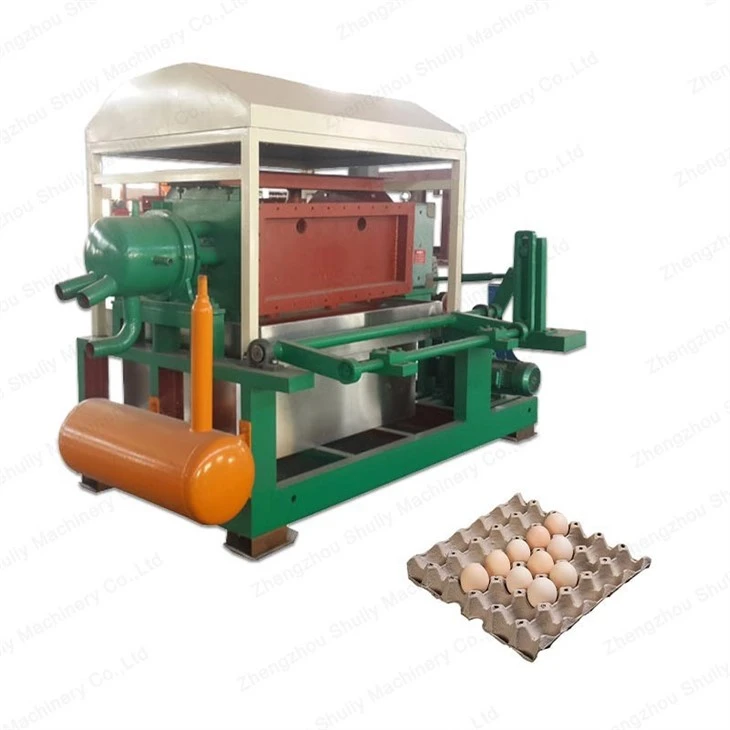

Pulp Egg Tray Making Machine





An egg tray machine is a kind of equipment professionally used to produce paper egg trays. It uses waste paper as the main raw material, and through processing, shaping, drying, and other processes, it makes egg trays suitable for protecting eggs during transportation and storage. This kind of equipment is widely used in agriculture and packaging industries because of its high efficiency, environmental protection, and energy-saving characteristics, helping to reduce the use of plastic products and promote the development of an environmentally friendly economy.

The production process of the egg tray machine is relatively simple and highly automated. It mainly includes four parts: pulping system, forming system, drying system, and packaging system. The machine recycles waste paper to form a slurry and uses a forming mold to inject the slurry into the egg tray mold, which is then dried and packaged. This production method is not only environmentally friendly but also significantly reduces production costs, making it suitable for companies of all sizes.



Pulping is an important part of the pulp molding production process. We can crush and screen waste paper such as old newspapers, magazines, cartons, etc.

Use a vacuum to make the pulp evenly adhere to the special molding mold to form a wet blank product, and then transfer it to the drying system or take natural drying.

After pulping and molding, pulp products generally contain high moisture, and need to be dried to remove moisture from the product

After molding and drying, the egg tray product is fixed, and the finished egg tray can be stored in the warehouse after manual sorting or packaging.

Model	SL-1*3	SL-1*4	SL-3*4	SL-4*4	SL-3*8	SL-4*8	SL-5*8
Capacity	1000pcs/h	1500pcs/h	2000pcs/h	2500pcs/h	3000pcs/h	4000pcs/h	5000pcs/h
Total Power	32kw	40kw	65kw	82kw	95kw	112kw	121kw
Paper Consumption	80kg/h	120kg/h	160kg/h	200kg/h	240kg/h	320kg/h	400kg/h
Water Consumption	160kg/h	240kg/h	320kg/h	400kg/h	480kg/h	640kg/h	800kg/h
Electric Consumption	18kw/h	32kw/h	45kw/h	58kw/h	65kw/h	78kw/h	95kw/h
Worker	3-4	3-4	4-5	4-5	5-6	3-4	3-4



Main raw materials: books, newspapers, cartons, paper boxes and scraps of waste paper from paper mills, carton factories or printing plants.
