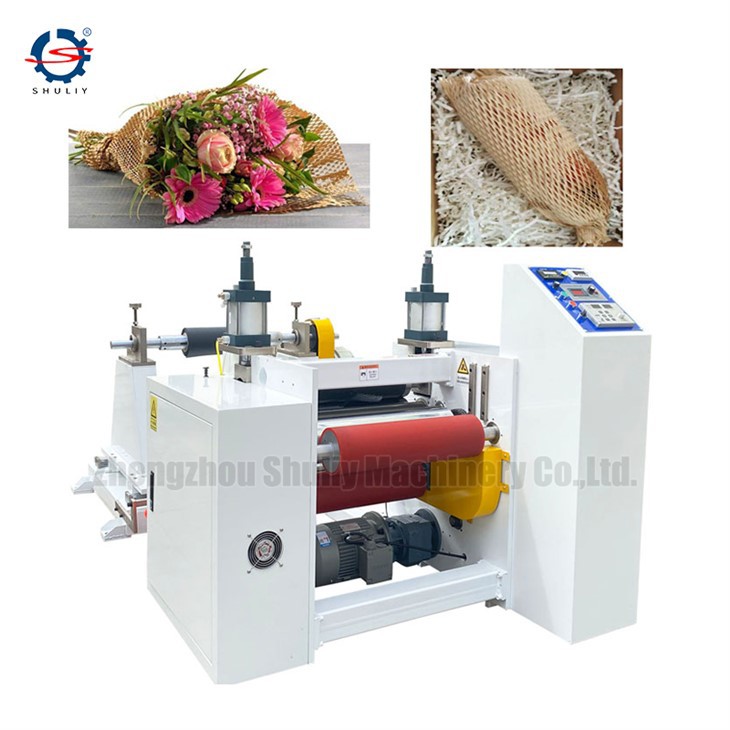

Honeycomb paper making machine
Products Description
This AUTO machine is used for rewinding white paper roll/yellow paper roll/kraft paper roll into honeycomb net, which can instead of bubble wrap roll for protection. Embossing and Cutting and rewinding could be completed at the same time. PLC touch screen control, easy to operate, high speed with stable running.
Products Application
Honeycomb paper is an eco-friendly and cost-effective alternative for plastic bubble wrap cushioning. It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics,glassware,etc.
Products Feature
1. This honeycomb paper-making machine is suitable for die-cutting honeycomb paper, wrapping paper,shock-absorbing kraft paper, fish net paper from 70g to 100g.
2. The unwinding, cutting, and rewinding in one process.
3. Main motor equipped with Inverter for speed regulation.
4. Automatic ultrasonic web guide controller for unwinding.
5. Tension controlled by magnetic powder brake and clutch.
6. Automatic meter counting device, automatically stop after it reaches the length you set.
7. Pneumatic cylinder to control the cutting mold up and down.
8. Roll-to-sheet cutting is optional.
Products Parameters
| Machine model | SL-500 |
| Web working width | 600mm |
| Mould effective width | 500mm |
| Unwinding diameter | 0-1200mm |
| Unwinding stand weight | 1Ton(can make more bigger) |
| Unwinding shaft | 3 inch inflatable air shaft |
| Rewinding shaft | 1inch/1.5inch/2inch/3inch |
| Machine size | 2620*1640*1160mm(LWH) |
| Machine weigth | 1000Kgs |
| Power supply | 380V 3 Phases 5 wires |
| Air pressure | 6-8kg/c Square meter |
Products display
FAQ
Q1: Are you a manufacturer or trade company?
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standards, and we have a test on every machine before delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than the market one. We will give you the best quotation.
Q4:What if the machine is damaged?
A5: One-year warranty and all-around after-sales service. After this deadline, we shall charge at a low cost to keep after-sales service.
