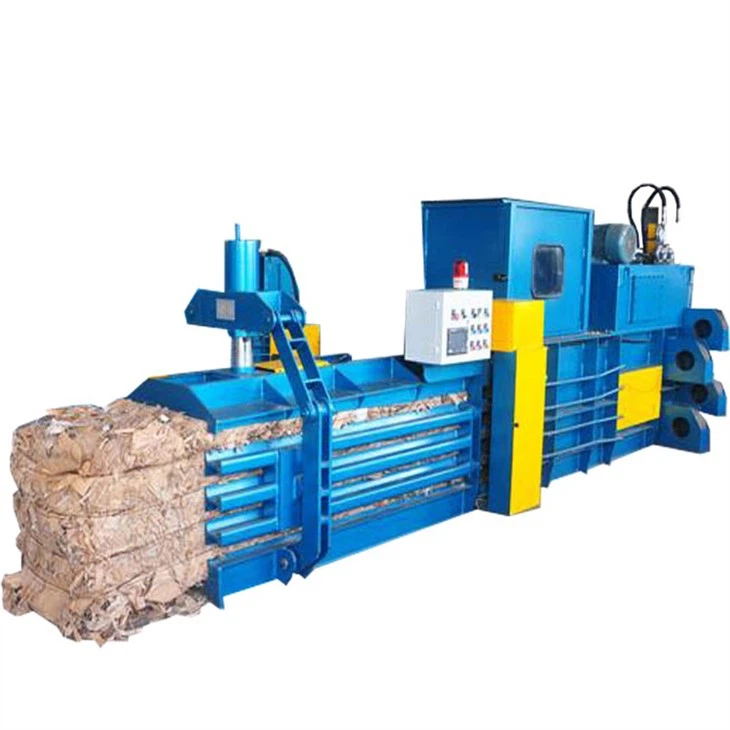

Automatic Horizontal Baling Press Machine



This automatic horizontal baling press machine only requires manual bundling, reduces waste storage space, saves up to 80% of stacking space, reduces transportation costs, and reduces labor costs. It is also beneficial to environmental protection and waste recycling.
1. Fully automatic compression and packaging unmanned operation.
2. Unique automatic strapping device, fast, simple structure, stable action, low failure rate, and easy to maintain.
3. It can convey online materials, air duct feeding, and manual feeding operations.



Model	SL-DB-100	SL-DB-160	SL-DB-180	SL-DB-200
Pressure	1000KN	1600 KN	1800 KN	2000 KN
Size of bales	W1150mm* H1050mm *L(adjustable)	W1150mm* H1250mm *L(adjustable)	W1150mm* H1350mm *L(adjustable)	W1150mm* H1450mm *L(adjustable)
Voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Tie method	Manual/automatic	Manual/automatic	Manual/automatic	Manual/automatic
Capacity	6-8 bales/h	6-8 bales/h	6-8 bales/h	6-8 bales/h
Weight of bale	500-1000kg	1000-1300kg	1000-1300kg	1000-1300kg
Conveyor size	6530*1400*3200mm	7113*1555*3360mm	7800*1655*3360mm	8200*1700*3360mm
Operation method	Manual/PLC	Manual/PLC	Manual/PLC	Manual/PLC





automatic horizontal baling press machine are mainly used in scrap factories, crop straws, recycling processing industries, and non-ferrous and ferrous metal smelting industries. The hydraulic baler can squeeze various metal scraps, plastic bottles, cans, waste paper boxes, and other materials into qualified furnace materials of various shapes such as cuboids and squares, which can reduce transportation and smelting costs and increase the furnace charging speed.



Upgrade storage wire tray
There are multiple storage wire trays on both sides of the machine, which facilitates the placement of wires needed for packaging after compression, effectively saving money.
Save operating space.
Hydraulic power rope threader
Each fully automatic horizontal baler is equipped with a hydraulic rope threading device. After the iron wire is placed and operated, the automatic rope threading effect can be achieved.
Chain automatic rope binding device
Fully automatic horizontal balers are equipped with chain-type rope tying devices. The rope twisting hook on the other side is made of laser cutting. The surface is smooth and does not scratch the rope, making it
Baling becomes smoother.
Brand high pressure plunger pump
Jinda high-pressure plunger pump, high efficiency, low noise, high quality. The flow passage part from the inlet to the outlet of the pump is made of cast iron. The pump body is non-corrosive and anti-wear hydraulic oil medium.
Hydraulic power clamp
Each side of the package outlet is equipped with a hydraulically powered clamp. The power is strong and can be adjusted according to the material's condition.
Easily adjust the size of the bag outlet.
PLC LCD display console
The electrical box is manufactured by China People's Electrical Appliances, which is simple and convenient to operate and can also be controlled remotely. You can choose the control method according to your own habits.
Manganese steel serrated cutting knife
Each machine is equipped with manganese steel zigzag cutting to a sharp edge, with good cutting performance and no jamming.
Make the compression work smoother.
Four-layer steel wire high-pressure oil pipe
They all use four-layer steel wire high-pressure oil pipes, which are wear-resistant, high-density, and thick-walled. Make sure there is no oil spray or oil leakage during work.
