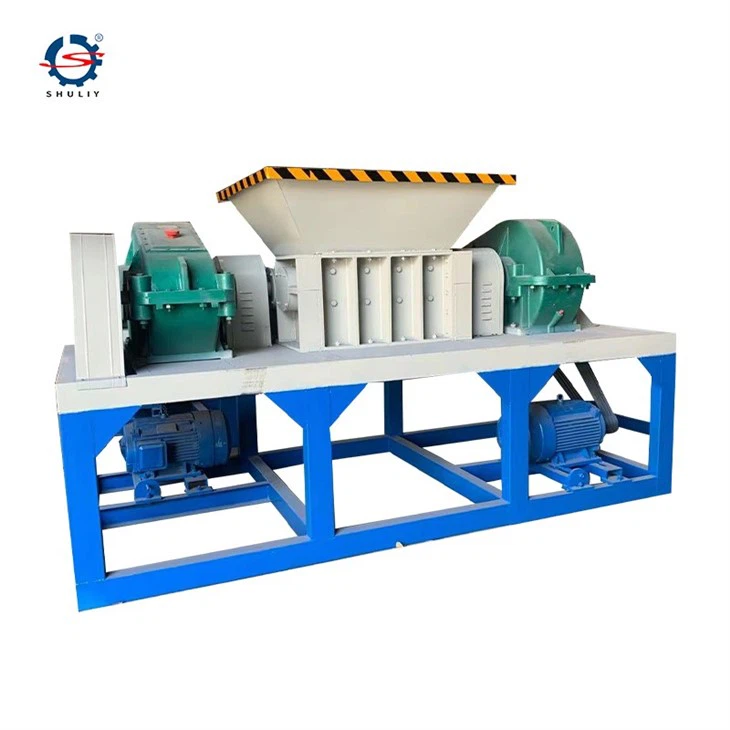

Industrial Heavy Duty Shredder

1, Basic operation principles of shredder:

For whatever reason, the engine must be started without load.

2, Preparation before start up:

1. The outgoing line of each motor is connected to the electric control cabinet according to the serial number marked on the wire head, and the air switch of the main line of the control cabinet is connected with three wires.

2. Before the reducer works, N220 intermediate pressure gear oil must be added. The amount of oil added should be from the observation hole too.

Model	Power	Capacity	Rolling speed	Weight	Dimension(mm)
SL-400	11kw	0.2-0.3t/h	16	2200kg	1250*670*1800
SL-500	15kw	0.4--0.5t/h	16	3600kg	1450*870*1800
SL-600	30kw	0.6-0.8t/h	24	4600kg	2150*870*2200
SL-800	44kw	1-1.2t/h	32	5600kg	3400*1250*2200
SL-1000	74kw	1.3-1.5t/h	22	7800kg	4150*1250*2200
SL-1200	90kw	1.5-1.7t/h	28	1000kg	4250*1450*2200
SL-1500	110kw	1.7-2t/h	40	15000kg	4300*1780*2200
SL-1800	150kw	2-2.5t/h	44	20000kg	5250*1780*2200
SL-2000	180kw	3t/h	50	26000kg	5500*1800*2500

Starting principle of shredder system:

1. Peripheral equipment first and then main equipment;

2. First auxiliary equipment and then processing equipment.

Boot program:

Start the switch of the electric control cabinet, run for one minute, check that the machine is normal, and then start feeding.

1. After the shredder is started, check the ammeter pointer. If the ammeter pointer returns from the maximum value to the minimum value, the feeding will be started if there are five abnormal conditions. Each start-up mode must ensure that the shredder main machine operates normally and the current is stable before feeding;

2. After the main engine operates normally without load, add a little material first, and observe the working condition and discharging condition of the main engine. Do not put too much material at once. After there is no abnormality, start feeding slowly. Always observe the working sound of the reducer and motor to keep the normal operation of the reducer and motor.

3. According to the main motor current, gradually increase the feeding amount until the main motor current reaches and stabilizes at 85% - 95% of the rated value;

4. Pay attention to the change of current at any time in the grinding process, and adjust the feeding amount in time to ensure the best load

5. During the operation, the operator should check the particle size of the torn materials at any time, and stop the machine to check if there is any abnormality;

6. It is strictly forbidden to climb on the frame of the shredder during crushing;

7. In the normal production process, do not open the belt protective cover to prevent accidents.
