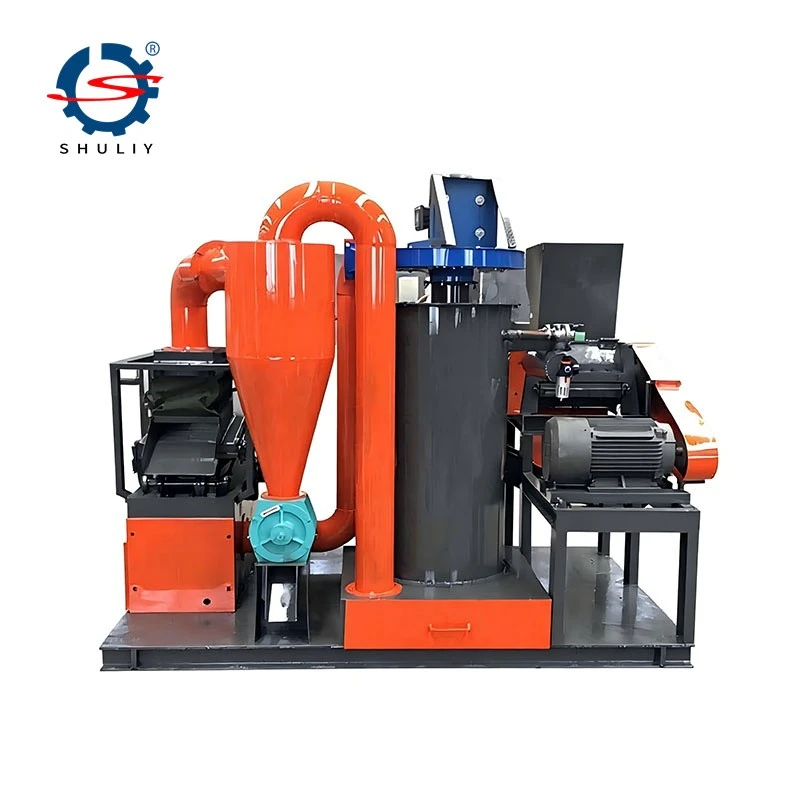

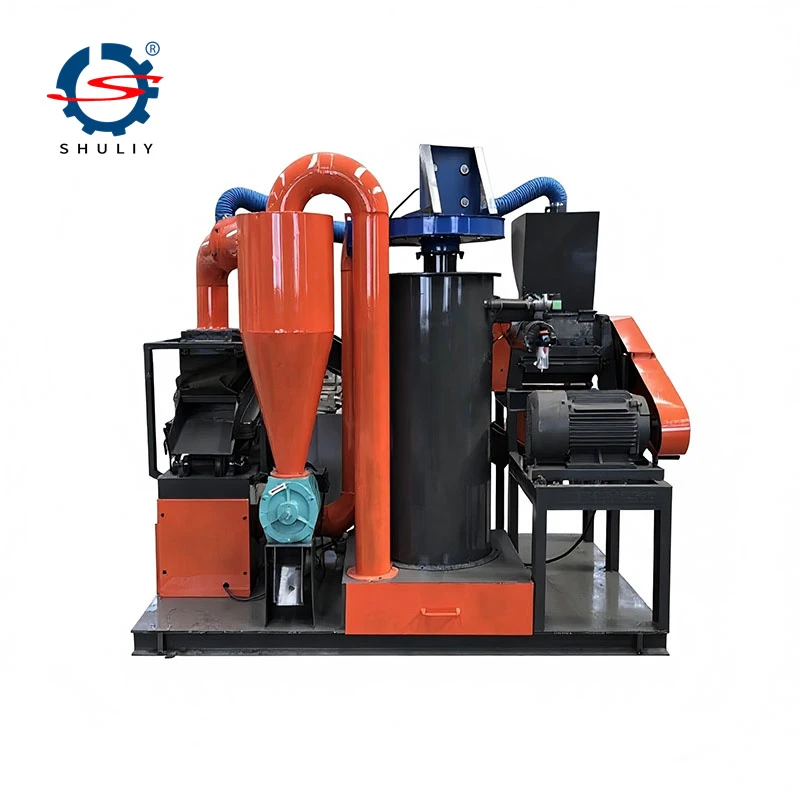

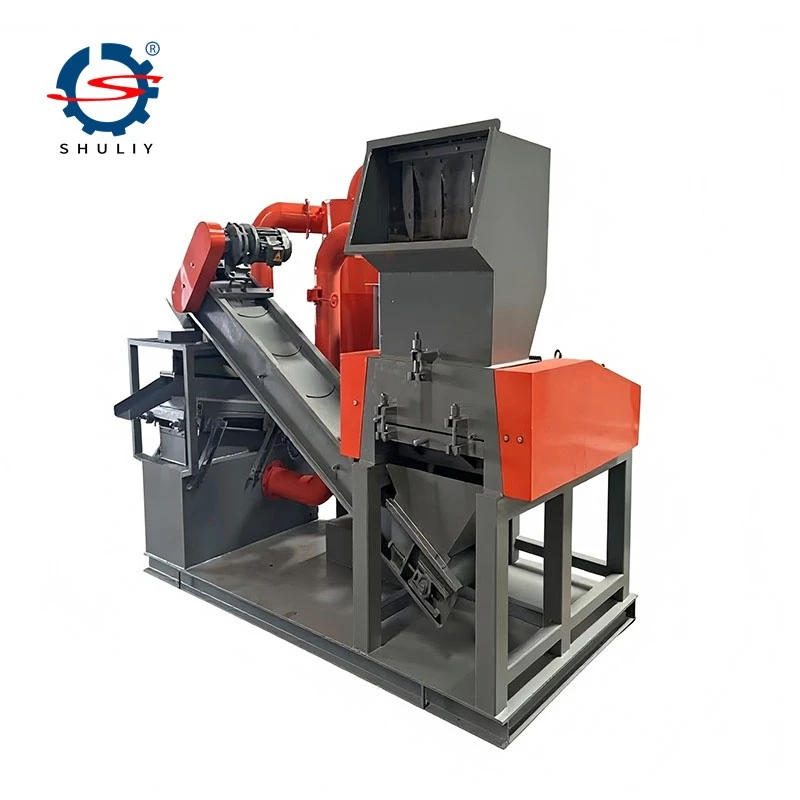

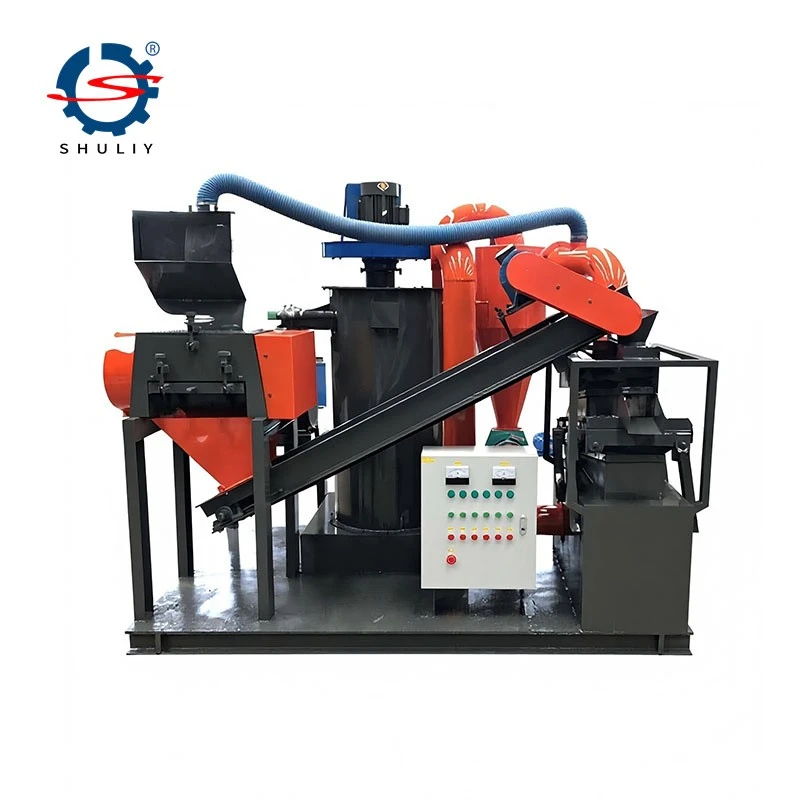

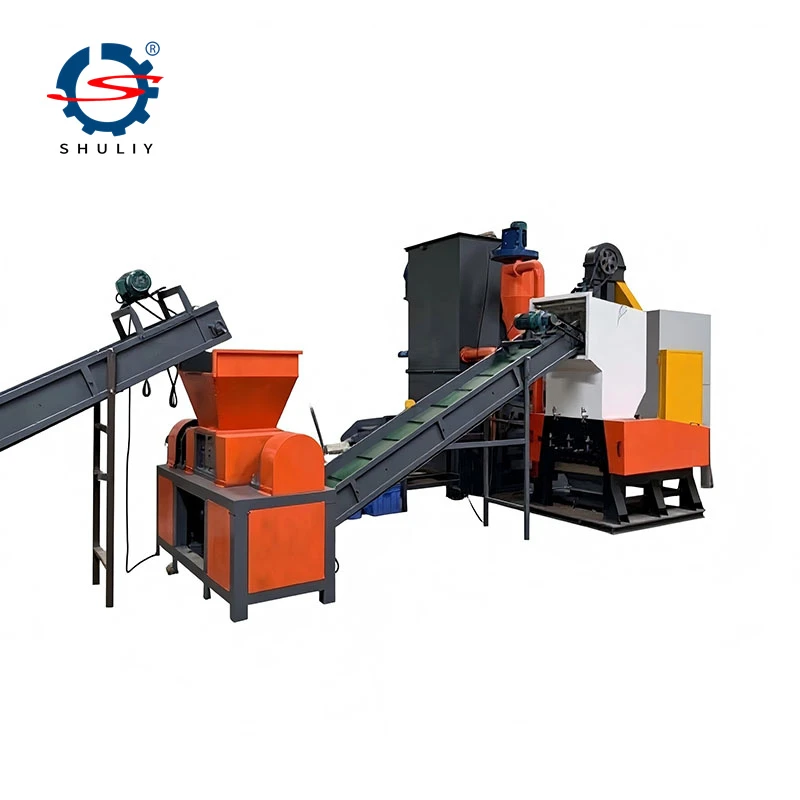

Cable Wire Granulator Machine

The Cable Wire Granulator Machine is suitable for processing a wide range of scrap wires and cables, including mixed wires, copper-plastic cables, aluminum-plastic cables, single-core wires, copper-clad aluminum wires, automotive wiring harnesses, motorcycle and electric vehicle wiring, discarded household appliance cables, electrical equipment wires, computer cables, telephone wires, headphone cables, communication cables, network cables, power cables, as well as various fine and difficult-to-recycle wires.

Model	External dimension(mm)	Dust removal power(kw)	Sorting(Kw)	Host Power(kw)	Output(KG/H)	Weight(kG)
SL-400	2600*1600*2300	4	2.2	15	100-150	1800
SL-600	3700*2000*2200	4.5	5.2	22	200-300	3500
SL-800	4000*2000*2200	9	5.2	45	400-600	3800
SL-1000	9000*5000*2600	12	10.4	55	800-1000	4600

The Cable Wire Granulator Machine operates through a series of processes, including crushing, grinding, air separation, and screening, to efficiently separate scrap wires and cables into high-purity copper granules and plastic particles.

Waste cables are first fed into the hopper, where they undergo primary crushing. The material is then conveyed to a secondary crusher for further size reduction. After crushing, the mixed material passes through an air separation system, which separates the copper granules from the plastic based on differences in material density. Finally, the separated materials are screened and processed through a dust collection system to produce clean copper granules and plastic particles with high separation purity.

Features of the Cable Wire Granulator Machine:

High Separation Efficiency:
Equipped with advanced crushing, grinding, air separation, and screening technologies, the machine efficiently separates scrap wires into high-purity copper granules and plastic particles with an excellent separation rate.

High Level of Automation:
The intelligent control system enables one-touch operation, simplifying the recycling process while improving productivity and reducing labor costs.

Energy-Saving and Environmentally Friendly:
The machine operates with low noise and minimal dust emissions, meeting environmental protection standards. Its energy-efficient design also helps reduce operating costs and power consumption.

Wide Application Range:
Suitable for processing various types of scrap wires and cables, the machine can also be used to recycle other composite materials containing both metal and plastic components.

1. Integrated Design:
This all-in-one cable wire granulator is specially designed for separating copper and plastic from scrap wires and cables. Its compact and integrated structure ensures efficient copper-plastic separation while providing a well-organized layout for easy installation and commissioning.

2. Small Footprint:
The machine occupies minimal floor space and requires no special workshop or foundation construction. Simply connect the power supply, and it is ready for operation, reducing installation costs and startup time.

3. Dust-Free Operation:
The dry-type cable wire granulator is equipped with a three-stage dust collection system, including cyclone dust collection, bag filter dust removal, and air purification, effectively controlling dust emissions and providing a clean working environment.

4. Easy Operation:
Featuring a PLC automatic control system, the machine offers one-touch operation, uniform material feeding, excellent adaptability to various wire types, and reduced labor requirements.

5. Excellent Crushing & Separation Performance:
The crusher is equipped with specially designed combined blades that efficiently process mixed wires and fine cables. Medium-sized models offer a processing capacity of 500–800 kg/h, with a copper recovery rate of up to 99.8%.
