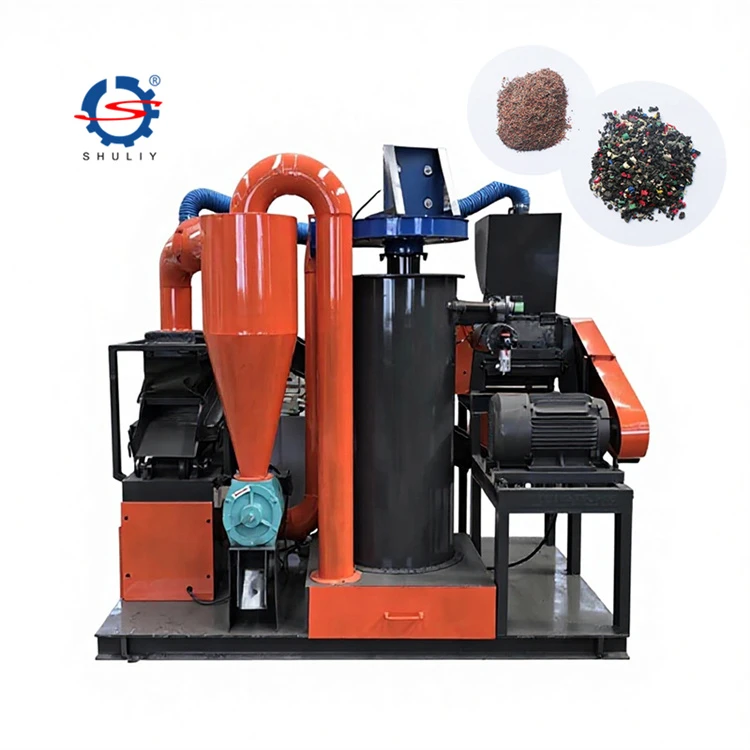

Copper Cable Recycling Machine





The copper cable recycling machine processes various types of cables-including automotive wiring, communication cables, and miscellaneous wires unsuitable for standard stripping machines-by crushing and shredding them, followed by separation via a vibrating screen. It effectively separates copper from plastic, enabling resource recovery and delivering high economic returns without generating dust or secondary pollution. The final products are plastic granules and copper granules.



Model	SL-400
Capacity	200kg/h
Voltage	380v 50hz
Main Power	15kw
Belt conveyor	1.5kw
Airflow gravity separator and dust remover	3kw
Vibratory separator	1.5kw
Cyclone dust collector	1.5kw
Weight	2000kg
Dimension	2700*1800*3600mm





The copper cable recycling machine can process communication wires, automotive wiring, computer cables, telephone lines, household appliance cords, wiring from discarded TVs and air conditioners, wiring from scrap refrigerators and washing machines, motorcycle wiring, scrap copper cables, and general household or automotive scrap wiring.



The copper cable recycling machine features an integrated design combining crushing, separation, and dust removal, effectively minimizing the equipment's footprint. It utilizes PLC control to ensure uniform feeding and intelligent operation; features such as automatic alarms simplify the process-saving time and effort-while maximizing operational stability.



1. Equipped with 10 rotary blades and 4 stationary blades designed for wear resistance and low heat generation, allowing for extended operating times.
2. Includes dust-collecting filter bags and a powerful dust extraction system to effectively capture airborne dust and particulates.
3. The entire copper cable recycling machine system is managed via a control cabinet; operation is simple, with start buttons for all components conveniently located on the panel.
4. Uses physical gravity separation to achieve clean, eco-friendly copper-plastic separation, with a copper recovery rate of up to 98% from scrap wire.

5. Compact structure, attractive appearance, rational layout, and easy installation.
6. Full PLC control and intelligent operation ensure simplicity and stable performance.
7. The crusher offers high production efficiency, lower noise levels, and smoother operation.
8. The copper cable recycling machine combines high-density airflow separation with high-voltage electrostatic separation, achieving a separation efficiency of over 99%.
