Circuit Board Recycling Line





Circuit boards contain a large amount of valuable metals such as copper, tin, gold, and silver, making them highly valuable for recycling. Our company's developed circuit board recycling line is a complete production line for recycling and processing waste circuit boards, integrating shredding, crushing, grinding, screening, gravity separation, and electrostatic separation. It is widely used in the electronic waste recycling and resource regeneration industry. This circuit board recycling production line adopts a physical separation process, which is free from chemical pollution, has a high recovery rate, and ensures stable operation.

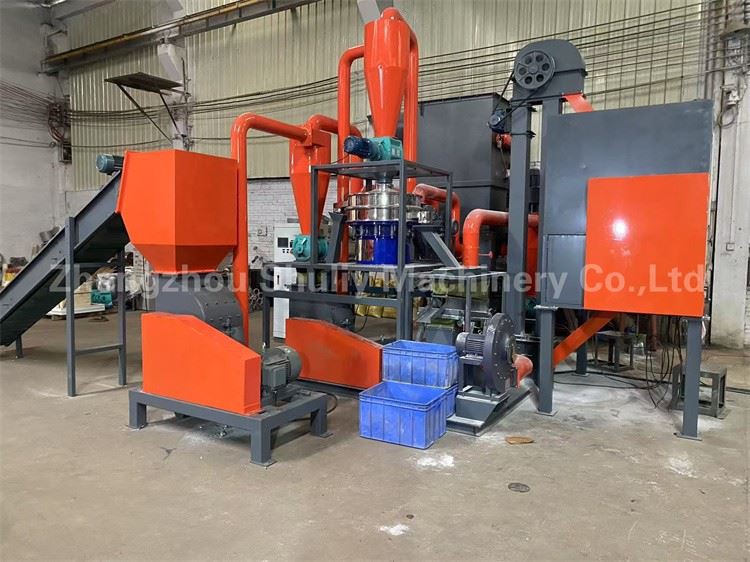

The circuit board recycling line includes a double-shaft shredder, crusher, grinder, vibrating screen, gravity separator, and electrostatic separator.

1. The double-shaft shredder is used to initially crush whole waste circuit boards into uniform small pieces, providing a suitable particle size for subsequent crushing.
2. The shredded material enters the crusher for further crushing, ensuring complete separation of metals and non-metals. It boasts high crushing efficiency and uniform output, suitable for various circuit board materials.
3. The water-cooled Mill grinds the material into powder. Both the inside and outside of the crushing chamber use a circulating water cooling system to effectively prevent high temperatures from affecting the separation effect. Continuous cooling ensures stable operation, prevents resin melting, and improves the purity of metal recovery.
4. A multi-layer vibrating screen performs fine screening of the powder. Particles of the correct size enter the gravity separator, while oversized particles are automatically returned to the grinder, achieving a closed-loop cycle and improving overall recycling efficiency.
5. The gravity separator utilizes the difference in specific gravity between metals and non-metals to achieve efficient separation. Copper powder, metal powder, and non-metal powder are completely separated, with a metal recovery rate of over 99%.

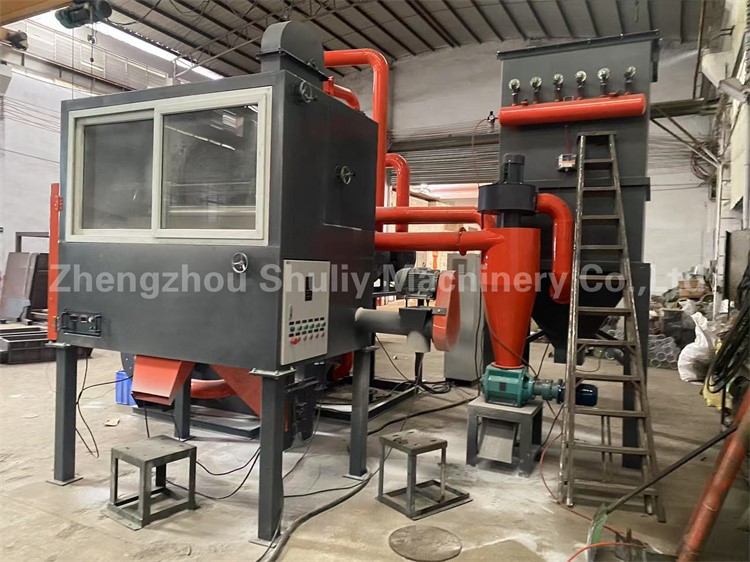

6. The non-metal powder enters the electrostatic separator for further separation of resin powder and plastic powder, increasing the utilization value of non-metals.



1. The entire circuit board recycling line uses PLC intelligent control, coupled with a human-machine interface touch screen, enabling automatic feeding and coordinated operation.
2. It features a compact structure, modular design, reasonable layout, and small footprint, suitable for circuit board recycling projects of different scales.

3. Noise reduction treatment for crushing equipment, negative pressure feeding system, and high-efficiency pulse dust removal equipment effectively reduce dust pollution and improve the working environment.
4. High purity metal recovery and non-metal classification and reuse improve overall project profitability.





1. This set of waste circuit board recycling equipment is widely used in electronic waste recycling plants, PCB circuit board dismantling enterprises, waste home appliance recycling enterprises, and resource regeneration and environmental protection projects.

2. Applicable materials include computer motherboards, mobile phone circuit boards, home appliance control boards, and industrial electronic circuit boards.
