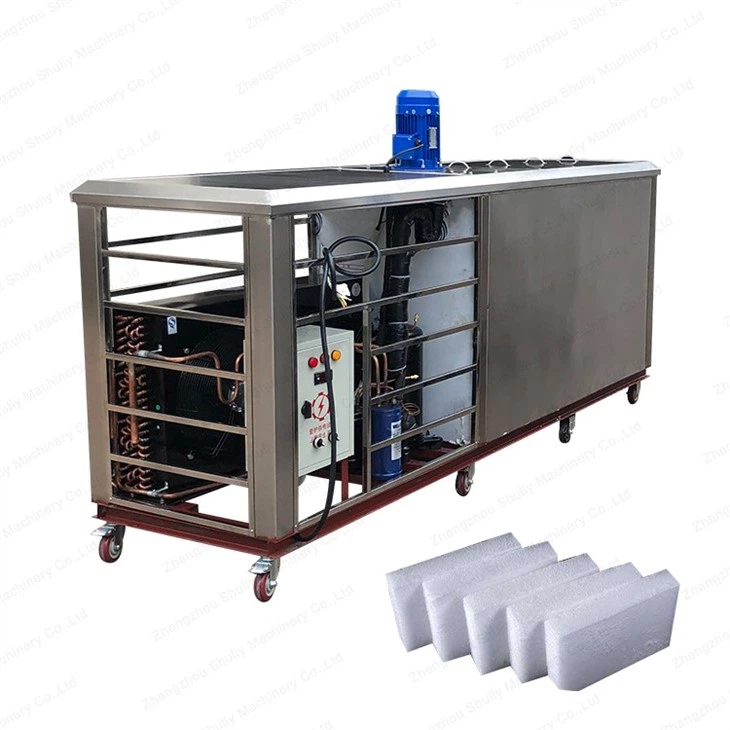

Products Description
The ice brick machine focuses on practicality and durability, ensuring ice production with sufficient configuration to maximize the production value for users. The size of the ice cubes can be customized according to customer needs. Compared with traditional ice brick machines, it saves 30% energy. Compared with ordinary ice cube machines, it has a larger configuration, uses sufficient materials, provides higher output, and has a longer service life.
Products Application
The ice blocks produced by the ice block machine can be used in ice factories at ports and docks, food processing, aquatic product preservation and cooling, long-distance transportation, aquatic product and food preservation, cooling in special fields, ice sculpture viewing, and for edible ice. Sizes can be customized according to needs.
Working Principle
The refrigeration system drives the compressor to work, compressing the refrigerant which is then cooled by the condenser and solidified into a liquid state. It then enters the evaporator for heating and vaporization to produce steam, which is subsequently throttled and decompressed by the condenser and expansion valve to normal temperature and high-pressure gas discharge. (It can also directly use low-pressure gas.)
Products Operation
1. Place the fixed mold frame into the ice block machine.
2. Pour the appropriate amount of freezing liquid into the machine.
3. Fill the ice cube mold with water, then let the mold stand fixed.
4. Turn on the power; it will take about 4-6 hours to complete freezing.
5. After freezing, prepare to de-mold by soaking the mold in cold water for one minute, then pick it up to easily de-mold.
6. Finally, the ice bricks are made.
Products Parameter
|
NUMBER
|
TZ-1
|
TZ-2
|
|
MOLD WEIGHT
|
10KG
|
10KG
|
|
MOLD SIZE
|
260*70*670MM
|
260*70*67OMM
|
|
MOLD MATERIAL
|
STAINLESS STEEL
|
STAINLESS STEEL
|
|
NUMBER OF MOLDS
|
16
|
32
|
|
MACHINE SIZE
|
2860*620*1050MM
|
2790*1025*1115MM
|
|
NET WEIGHT /KG
|
380
|
390
|
|
ELECTRICAL SPECIFICATIONS
|
380V/50HZ
|
380V/50HZ
|
|
RATED POWER/ KW
|
6
|
8.5
|
|
ICE TIME/H
|
4
|
4
|
|
REFRIGERANT CATEGORY
|
R22
|
R22
|
|
CONDENSER
|
AIR-COOLED
|
AIR-COOLED
|
