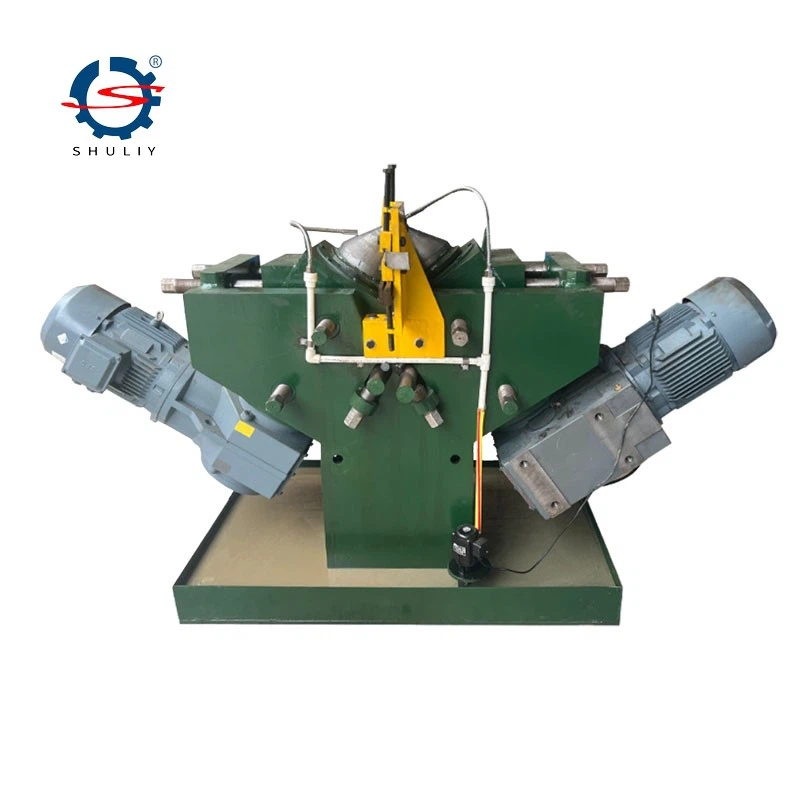

Spiral Blade Cold Rolling Mill

The spiral blade cold rolling mill is fabricated from high-quality, thickened steel plates that are precision-welded to ensure a robust structure, exceptional durability, and long service life. It delivers high dimensional accuracy and superior surface hardness, making it well suited for high-speed, continuous operation. The machine runs smoothly and stably, with minimal vibration and low noise levels.

Products Description

The spiral blade cold rolling mill is a specialized machine designed to continuously roll strip steel into spiral blades. It is mainly used for manufacturing various types of spiral blades using strip steel as the raw material.

The continuous forming spiral blade cold rolling mill features a tapered roller design and forms spiral blades through a cold rolling process, replacing the traditional cold drawing method. By precisely adjusting key parameters such as roller offset, feeding height, rolling pressure, and guide wheels, the equipment can shape strip steel into spiral blades of different sizes and specifications. It offers the advantages of high precision, stable performance, and efficient production.

A single set of continuous forming rollers is capable of producing spiral blades in multiple specifications, ensuring uniform thickness and minimal dimensional deviation.

spiral blade cold rolling mill

Specification

Model	SL60-3	SL120-6	SL150-8
Power	8.5kw	26.5kw	35.5kw
Voltage	380V	380V	380V
Sheet material	SPHC	SPHC	SPHC
The width of the strip rolling	20mm-60mm	20mm-120mm	20mm-150mm
The thickness of rolled strip	2mm-3mm	2mm-6mm	2mm-8mm
Inner diameter of the rolled blade	8mm-180mm	8mm-180mm
Inner diameter error of rolled blades	≤±3mm	≤±3mm	≤±5mm
Outer diameter of the rolled blade	50mm-300mm	60mm-1000mm	60mm-750mm
Outer diameter error of rolled blades	≤±3mm	≤±3mm	≤±5mm
Rolled blade pitch	60mm~300mm	60mm~800mm	50mm~800mm
Rolled blade pitch error	±5mm	±5mm	±5mm
Operation	Mechanical	Mechanical	Hydraulic adjustment
Weight	1800kg	4000kg	5600kg

spiral blade cold rolling mill

Feature

Features of the Spiral Making Machine

1. Spiral blades produced by the continuous cold rolling process feature a smooth surface and uniform shape, making them easy to transport. This method also overcomes the common drawbacks of traditional manufacturing processes, such as low precision, difficult forming, high material consumption, and low production efficiency.

2. The finished blades offer a high qualification rate, with well-rounded arcs for easy welding, excellent dimensional accuracy, and high surface hardness.

3. The machine is easy to operate, with a well-designed structure and high machining precision. According to customer requirements, it can produce continuous one-piece blades of various lengths, providing strong rigidity and enabling fast and convenient welding during installation.

4.It is equipped with advanced, high-quality bearings that deliver excellent wear resistance. Components can be customized as needed, ensuring long service life and reliable performance.

spiral blade cold rolling mill
