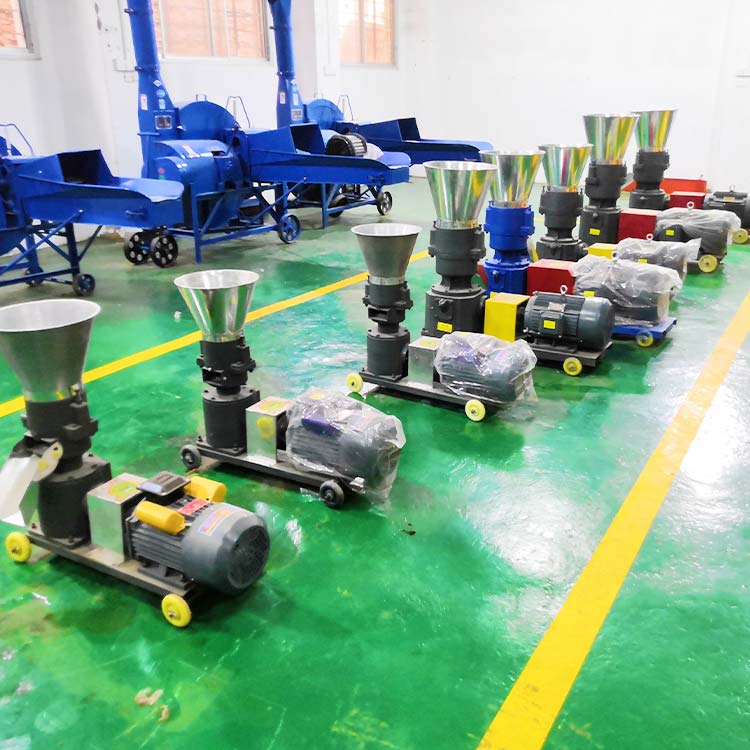

Animal Feed Pellet Making Machine

The animal feed-making machine belongs to feed granulation equipment. It is a feed processing machine that directly compresses particles by crushing materials such as corn, soybean meal, straw, grass, rice husk, and peanut meal.

Reducing the cost of feed and meeting the nutritional needs of various livestock and poultry has become the primary problem that the majority of farmers and feed industries need to solve urgently. Straw biochemical protein feed technology is to pass the crop straw through pulverization, granulation, and other technical measures, so that lignin is softened, crude protein, crude fiber, crude fat, and the like are degraded into substances that are easily digested and absorbed by poultry, and a large amount of fermentation is also produced. The bacterial protein becomes soft and ripe after fermentation, and the granulation increases the taste of the livestock. The average level of crude protein and amino acid is increased by 40.6% and 95.8%, and the levels of arginine, cysteine, and histidine are increased. It also has a substantial increase, increased sugar and fat content, and produces vitamins and growth factors such as B, D, and E, and then mixed with other raw materials to make full-price feed. The pellet feed machine presses into nutrient-rich feed pellets to feed the livestock. The amount is increasing and the growth is accelerated. Reducing food input (the nutritional value of 270 kg of grain feed per ton of straw feed) saves on feed costs and increases farmers' income.



First, because the pellet machine produced is a precision bearing transmission, the high-efficiency power input is ensured while the power loss in the belt conveyor of the pellet machine is eliminated. The precision bearing gearbox pellet motor is directly connected to the pellet machine to make the pellet machine It has more power during operation and lower power loss. There are many precision bearing parts in the granule machine gearbox that need lubrication. After receiving the granule machine, add 4L gear oil to the granule machine. Different oil types may have different amounts.

The butter on the main shaft of the pellet machine has been filled before leaving the factory, and it needs to be greased every 15 days. (Need to choose high-temperature butter)



Second, the pellet machine just received will not reach the normal output, which is a normal phenomenon, because the pellet machine is a new machine, the pellet machine just running does not reach the running state after the standby device is used for some time, the pellet Please understand that the production and discharge quality of the pellet machine will reach the state after the parts of the machine are grounded to the state.

1. The output of the feed pellet machine is too low or even granules or a lot of powder. Although this problem does not occur often, if it appears, it means that you have not ground the pressure roller and the grinding disc during the grinding process of the pellet machine. The reason for the similar problem may be the poor finish of the grinding disc for the first time. After grinding the disc with the abrasive or after using it for some time, the output of the pellet machine will reach the normal output.

2. If the moisture content of the feed is not well mastered, it will affect the discharge of the pellet machine. The moisture in the raw material should be controlled at 13%-20%, because the pellet machine has the function of drying and curing, and the moisture in the raw material is in the pellet machine pressing process. The pellets that are dried in the pellet machine can be bagged after being dried for 5-10 minutes under normal temperature conditions.

3. The gap between the pressure roller and the grinding disc of the pellet machine is too large, which may be one of the reasons that the pellet machine does not discharge. Adjust the gap between the pressure roller and the grinding disc, screw the pressure roller with one hand, adjust the corresponding bolt, and adjust When the pressure rollers on both sides are swaying, and slightly tight, it means that the pressure roller and the grinding disc have been adjusted.

These reasons may be the basic reason for not granulating. In the face of the problems that often occur in feed pellet machines, the solution we solve is very simple. First, we must optimize the grinding holes so that they can adapt to the environment after working for a while. If you don't have enough water, you can only dry it. If the water is too small, you need to add some water. Only when the raw material is kept at a certain level of water, the drying and ripening function of the pelletizer can be used. Machine discharge can be very smooth.

The noise of our small-sized feed pellet machine in normal operation and mass production is very low. The main reason is that the machine runs sound when it is running. This is a normal phenomenon. If the particle machine is murmur during operation, it will be accompanied by sputum. If the sound is loud, it should be shut down in time. It is necessary to immediately check whether the bearing and various parts are loose. Whether there are any debris in the particle machine, such as small iron nails doped in the raw materials, small stones, etc. affects the normal use of the pellet machine. Things should be cleaned up in time.

Model	Power	Capacity	Dimension	Weight
125	4kw	80-100kg/h	850*350*520mm	75kg
150	4kw	100-150kg/h	850*350*570mm	81kg
210	7.5kw	300-450kg/h	990*430*710mm	165kg
260	11/15kw	600-800kg/h	1300*450*1100mm	290kg
300	22kw	1000-1200kg/h	1360*570*1150mm	400kg
400	30kw	1500-1800kg/h	1550*620*1250mm	680kg
