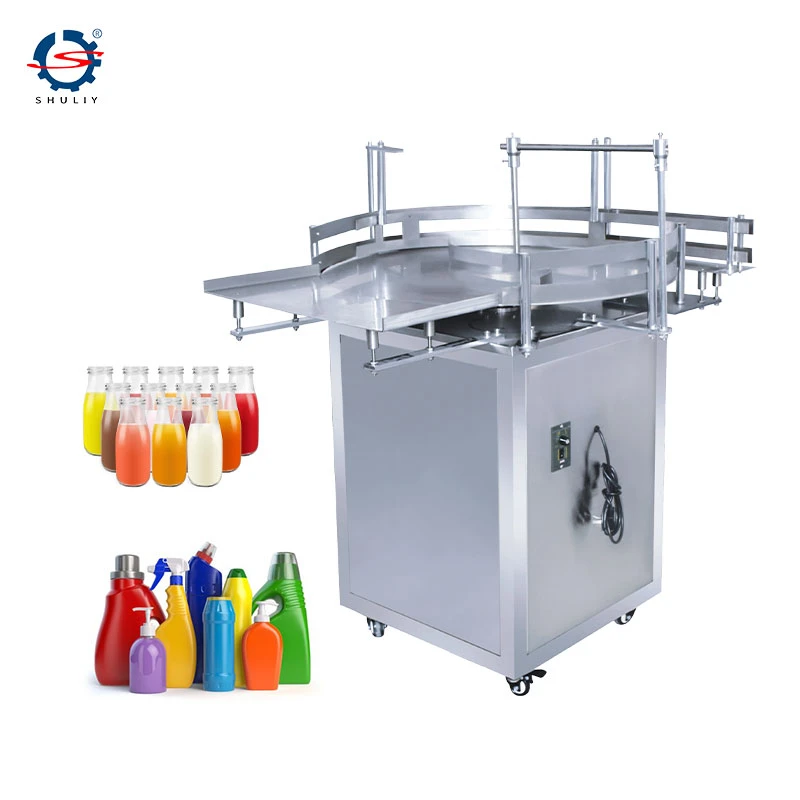

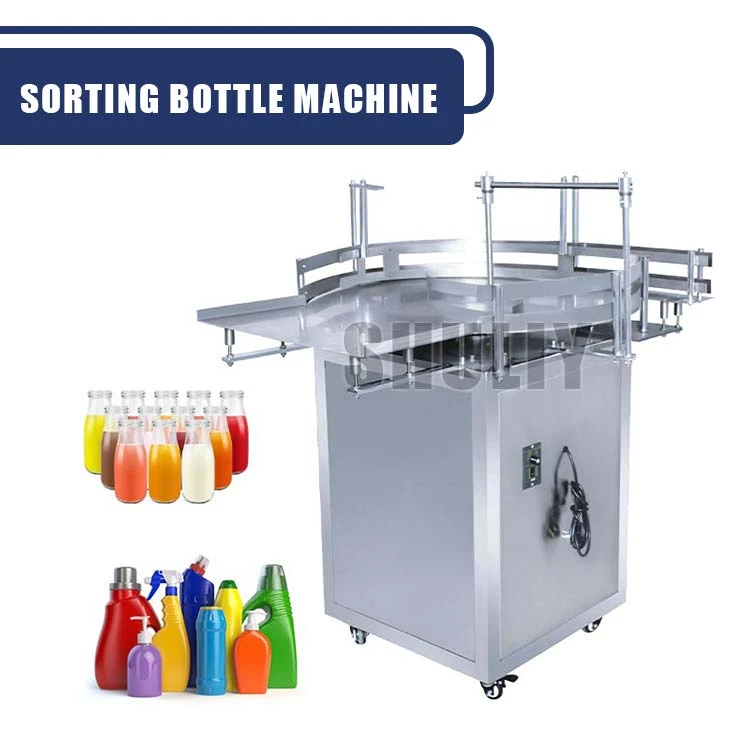

Bottle Feeding Machine

The Bottle Feeding Machine is designed to automatically feed, sort, and collect round bottles for high-speed production lines. Suitable for both plastic and glass bottles, it seamlessly integrates with filling, capping, and labeling machines, ensuring stable bottle conveying, improved production efficiency, reduced labor costs, and smooth automated operation.



Table Diameter	Dimension for feeding	weight	dimension for collection	weight	Power	Motor Rotating Speed
800 mm	1200*1050*1350mm	85kgs	1000*1000*1150mm	75kgs	120 W	17.5 RPM
1000 mm	1350*1200*1350mm	100kgs	1250*1200*1150mm	90kgs	120 W	17.5 RPM
1200 mm	1500*1450*1550mm	120kgs	1400*1400*1300mm	110kgs	120w	17.5 RPM

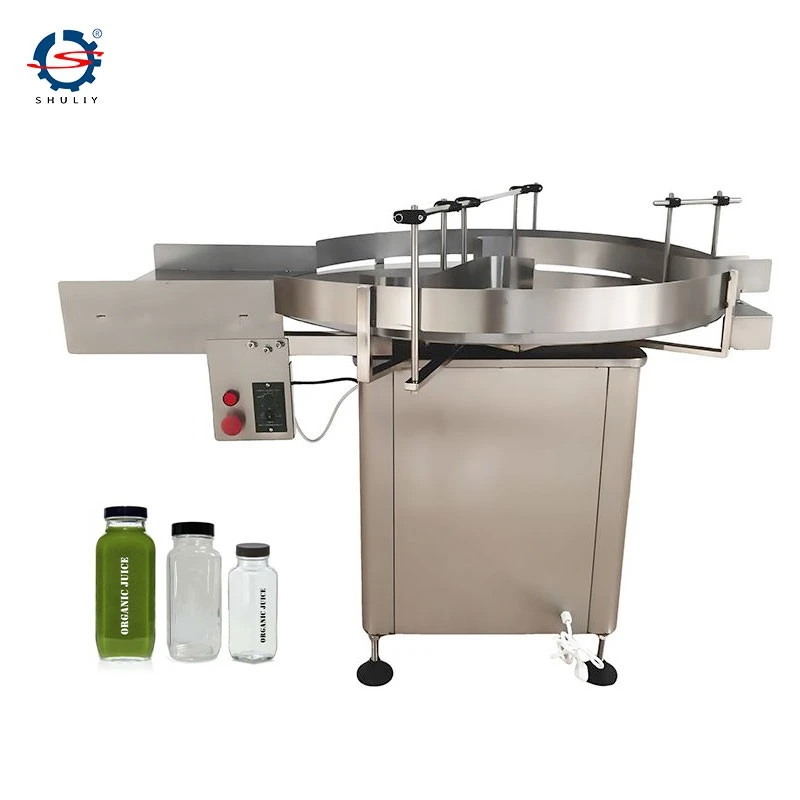

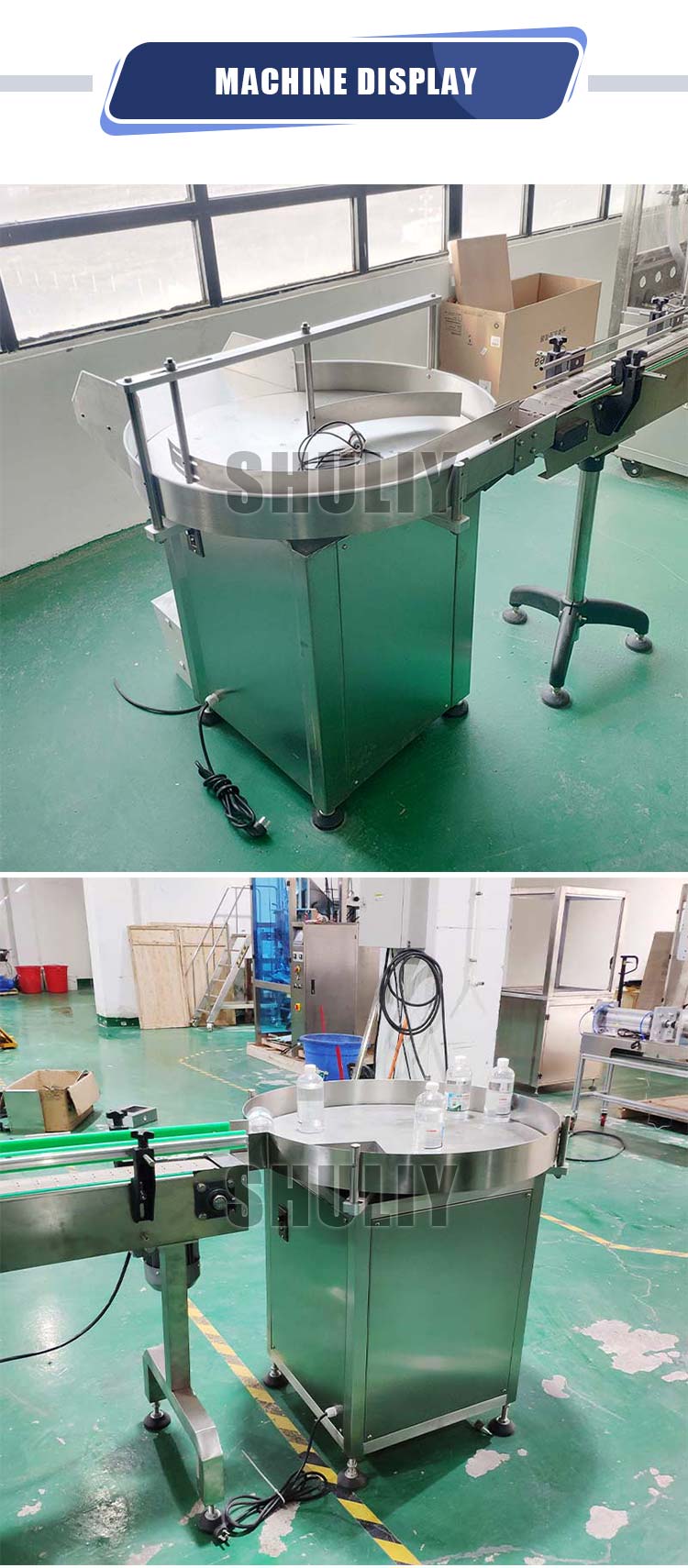

The operator places bottles onto the loading table. The motor-driven rotary table automatically transfers the bottles onto the conveyor. The rotary table speed is adjustable to match the conveyor speed, ensuring smooth and continuous bottle feeding. The entire machine is constructed from SUS304 stainless steel, while the rotary table is made of tempered glass for easy cleaning and maintenance.

The feeding and accumulation tables are connected to the belt conveyor, allowing bottles to be transferred automatically in and out of the production line. Driven by a variable-speed motor, the rotary table operates smoothly, and its speed can be adjusted to synchronize with the conveyor. Made of high-quality stainless steel, the machine is hygienic, corrosion-resistant, and easy to maintain. It is suitable for bottles of various sizes, shapes, and materials, making it an ideal solution for a wide range of production lines.

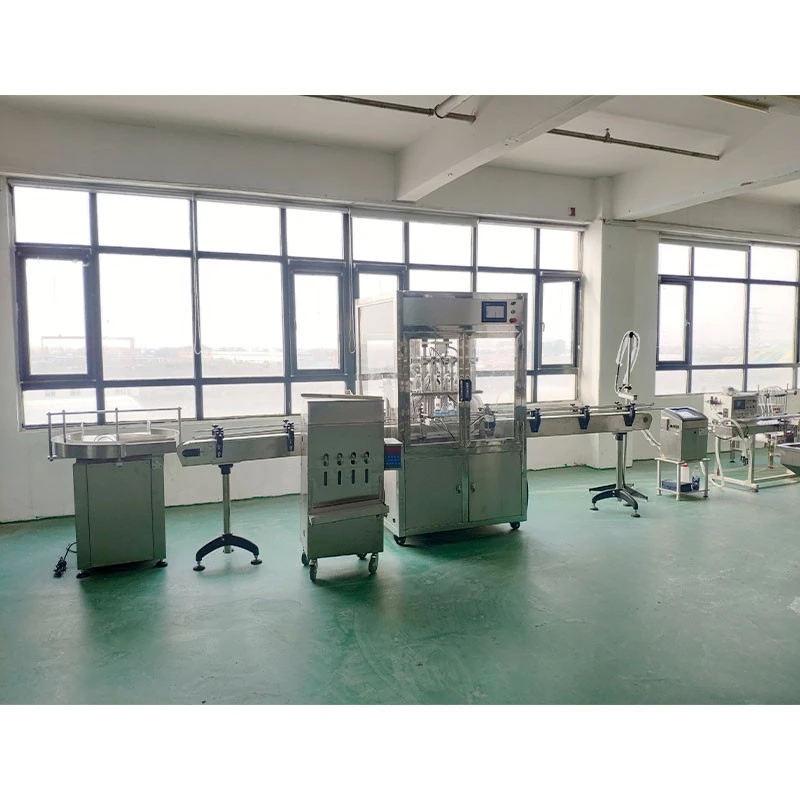

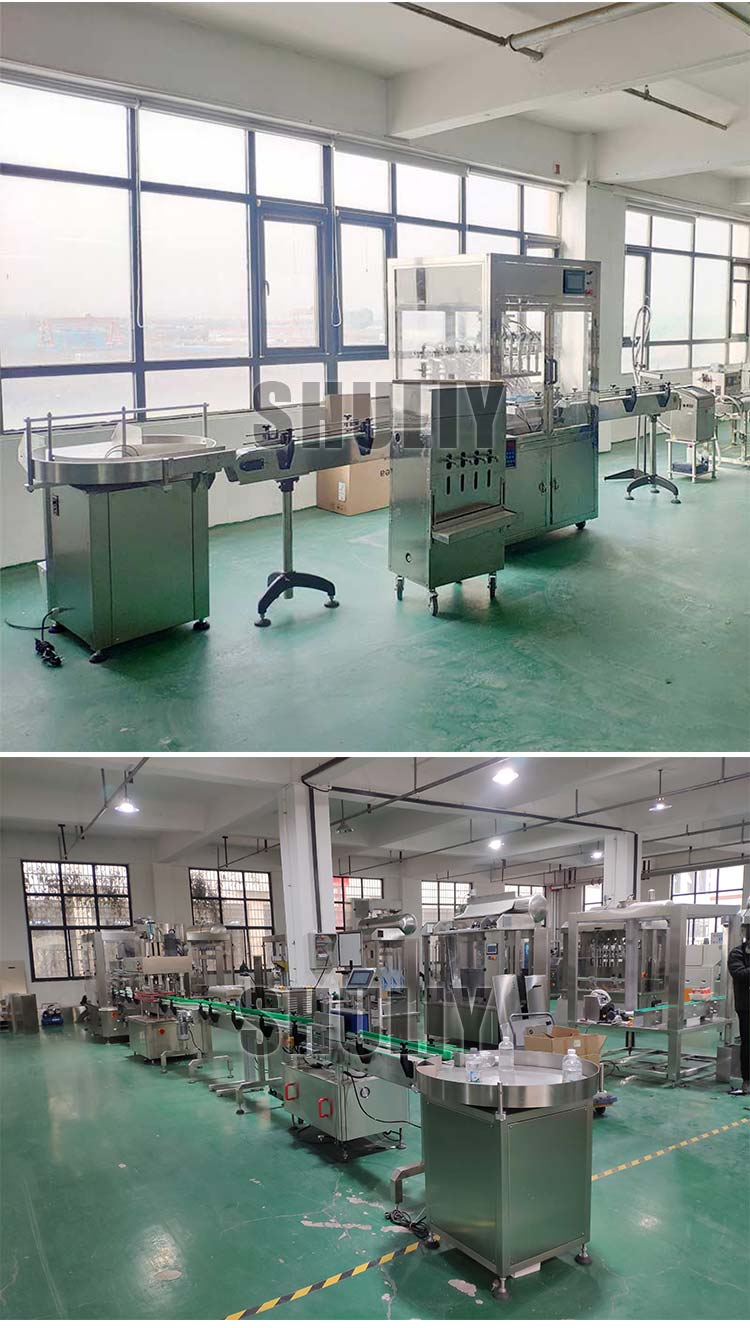

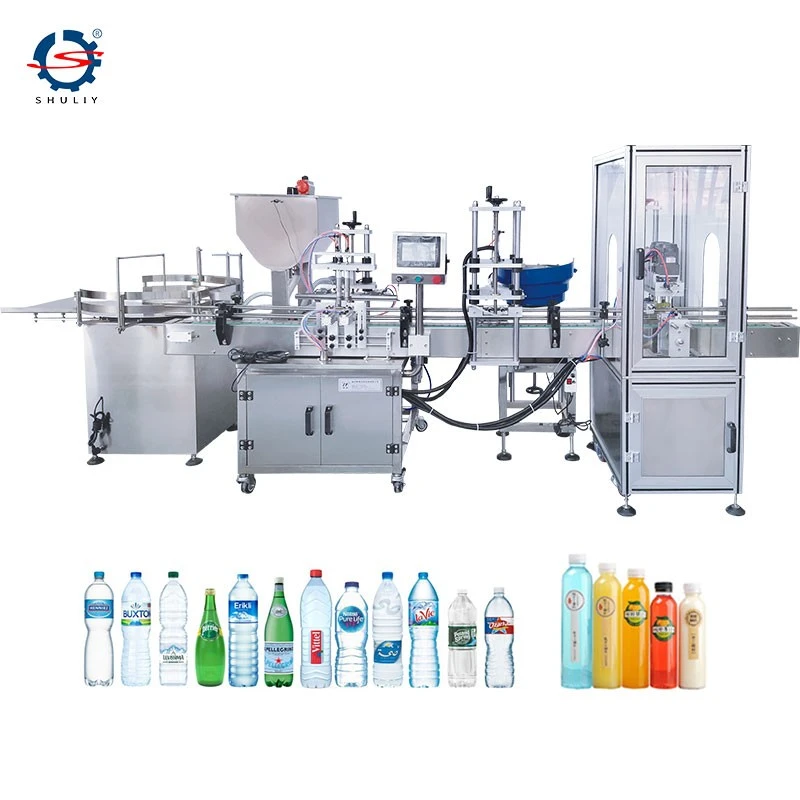

1. Suitable for the automatic conveying of both round and square bottles. It can be seamlessly integrated with labeling machines, filling machines, capping machines, and other production equipment to provide automatic bottle feeding and improve production efficiency. It can also serve as a buffer platform between production line sections, reducing conveyor length and optimizing line layout.

2. The applicable bottle size range can be adjusted to accommodate different bottle specifications. The conveying speed ranges from 30 to 200 bottles per minute, with stepless speed adjustment to meet various production requirements.

3. Automatically feeds, collects, and organizes products, reducing labor costs while improving production efficiency.
