10–50 kg Liquid Filling Machine





The 10–50 kg liquid filling and capping integrated machine is an intelligent system designed for high-capacity liquid filling operations. This semi-automatic, weight-based filling machine performs filling, cap tightening, and labeling in a single, streamlined process. The 10–50 kg Liquid Filling Machine is suitable for industries such as chemicals, agriculture, and pharmaceuticals. The machine's design combines high precision, precise control, and high production efficiency.



Voltage	380V/220V50/60HZ
Air	0.5-0.81pa
Filling range	10-50kg
Filling accuracy	±<0.1
Capacity	60-240pcs/h
Filling way	Weighing
Dimension	1200*700*1500mm

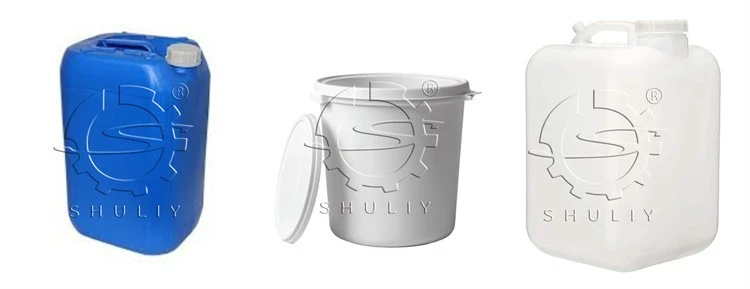

The semi-automatic 10-50 kg liquid filling machine is suitable for filling highly fluid liquid materials such as polyurethane, polyols, polyethers, polyesters, resins, coatings, paints, inks, adhesives, curing agents, dyes, cleaning agents, machinery oils, lubricants, edible oils, fragrances, additives, and pesticides.



1. The semi-automatic 10-50 kg liquid filling machine offers high accuracy (error within ±5g for a 10L fill, exceeding standard metrological requirements by 50%). Each filling head is independently controlled, allowing for individual switching and fine-tuning. The filling progress is displayed dynamically, ensuring ease of use.

2. It utilizes a PLC combined with a Human-Machine Interface (HMI) to ensure stable, reliable, and durable operation.

3. Built using food-grade, corrosion-resistant materials to extend the machine's service life while supporting eco-friendly production standards.

4. It uses infrared sensors to automatically stop containers during entry and resume the conveyor operation once filling is complete.

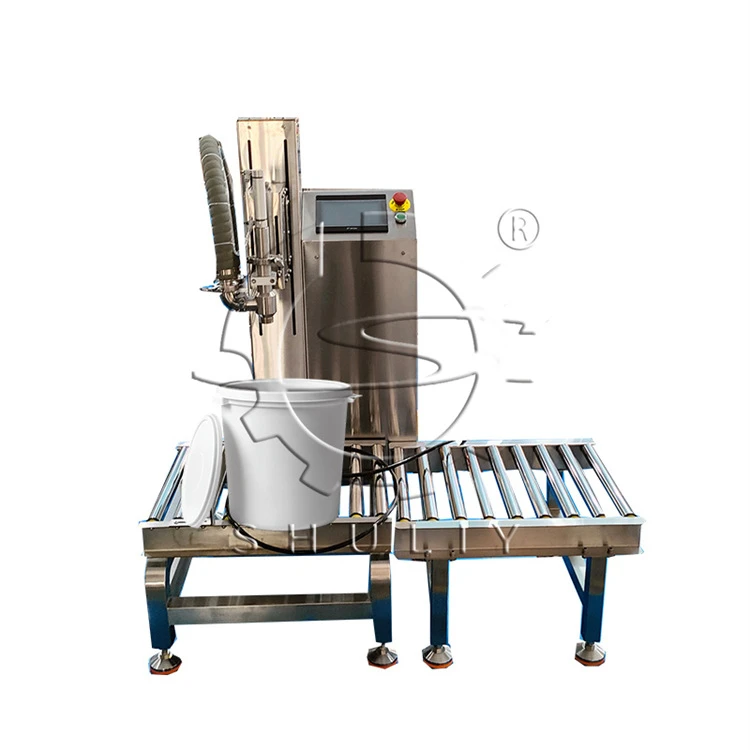

The 10–50 kg Liquid Filling Machine features intelligent operation. Operators place the container on the weighing platform and input parameters-such as specifications, dispensing speed, and capping torque-via the computer interface. After optimizing based on the data, the system initiates the automated filling process. Upon detecting a container entering the filling zone, the machine uses a positioning stop to halt subsequent containers. The weighing platform automatically tares the container weight, opens the filling ball valve to dispense liquid into the container, and shuts off automatically once the target weight is reached, before proceeding to the next operational stage.
