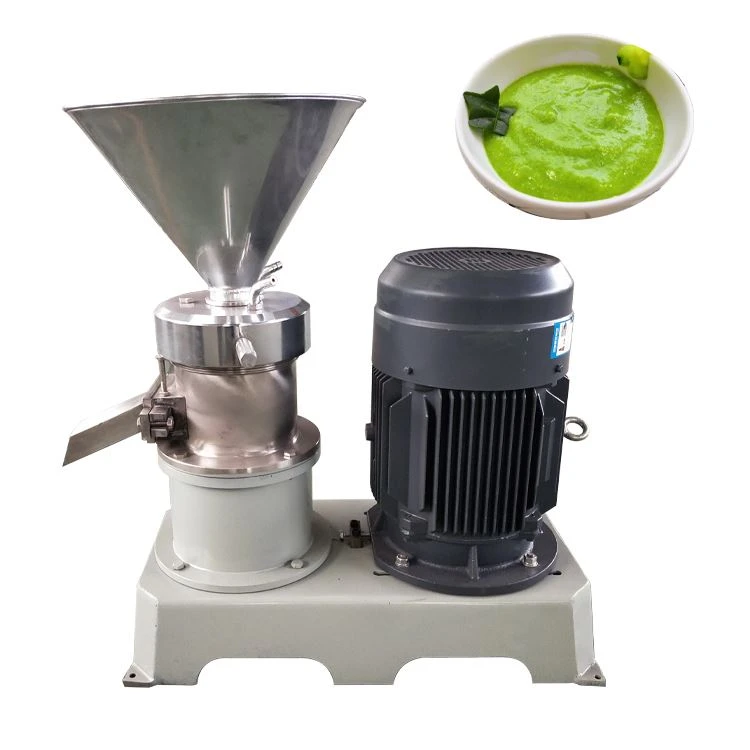

Colloid Mill Grinder

Except for the motor and some parts of the colloid mill grinder product, all parts in contact with the material are made of stainless steel. The key dynamic and static grinding discs are strengthened to make the processed materials hygienic and pure. It can also be customized according to user requirements. ​
The main structure of the colloid mill grinder consists of three parts: the grinding head component, the base transmission part, and the motor. Among them, the combination of movable grinding disc, static grinding disc, and mechanical seal in the middle part of the machine is the key part of the machine. Therefore, the selection varies depending on the properties of the materials being processed. But the material is made of stainless steel or other materials. The motor needs to be designed according to different models, and a water retaining plate is installed on the flange end of the motor to prevent leakage.



Model	Capacity	Power	Machine size	Weight
SL-70	50-80KG/H	2.2Kw	650x320x650mm	70kg
SL-85	100-150KG/H	5.5Kw	900x350x900mm	170kg
SL-130	200-300KG/H	11KW	1000x350x1000mm	270kg
SL-185	500-800KG/H	30KW	1200x450x1200mm	470kg
SL-200	600-1000KG/H	37KW	1200x500x1200mm	500kg

The colloid mill grinder is driven by an electric motor through a belt drive to rotate the rotating teeth (or rotor) and the matching fixed teeth (or stator) in relative rotation. One of them rotates and the other is stationary. The material to be processed passes through its own weight or external Pressure (which can be generated by a pump) and produces a downward spiral impact force. When passing through the gap between the fixed and rotating teeth (the gap is adjustable), it is subjected to physical effects such as large shear force, friction, vibration, vortex, etc., causing the material to be emulsified, dispersed, refined, and pulverized, and the material is finely pulverized and emulsified.



Compared with the pressure mass press, the colloid mill is first of all a centrifugal equipment. Its advantages are simple structure, convenient equipment maintenance, and it is suitable for materials with higher viscosity and larger particles. Its main disadvantage is also determined by its structure. First of all, due to centrifugal motion, the flow rate is not constant, which corresponds to the large change in the flow rate for materials with the same viscosity. For example, when the same equipment handles viscous paint materials and thin milk fluids, the flow rate can differ by more than 10 times; secondly, due to the friction between the rotor and the material, it is easy to generate a large amount of heat, causing being processed material is denatured; thirdly, the surface is easier to wear, and after wear, the refinement effect will be significantly reduced.
