Almond Shelling Production Line





High-efficiency almond shelling production line, customized solutions to improve nut processing efficiency. The production line integrates grading, shelling, separation and packaging, with an hourly processing capacity of up to 1 ton, and can flexibly adapt to the processing needs of various nuts such as almonds, macadamia nuts, hazelnuts, etc.

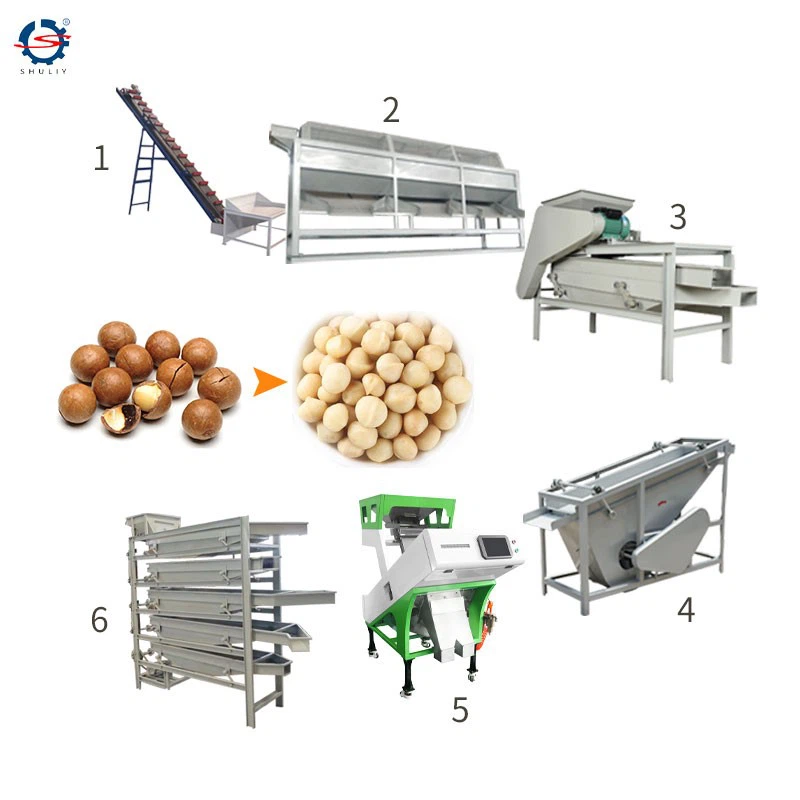

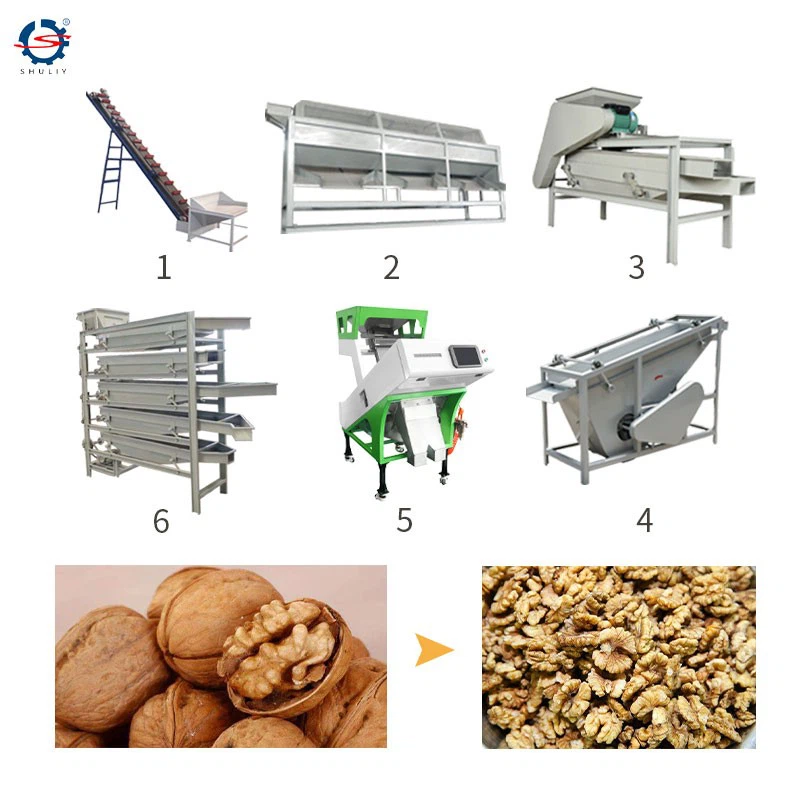

No.	Name	Capacity	Dimension	Power	Weight
1	Hoist		0.6*0.6*6.5m	0.75kw
2	Drum Grading Machine	1000kg/h	5.5*1.1*2.5m	2.2kw	2300kg
3	Electromagnetic Quantitative Feeding Hopper		1*1*1.6m	0.050kw
4	Shelling Machine		3.5*0.9*1.3m	3kw	280kg
5	Shell and Kernel Seperation Machine		3.2*0.9*1.6m	1.5kw
6	Color Sorting Machine	1000kg/h	3.11*1.10*1.80m		800kg
7	Five Stage Grader	600-800kg/h	2.4*0.8*2.2M	1.5kw	500kg





1. The shelled almond grader adopts a drum screen design to accurately grade according to the size of almonds to ensure the shelling effect. The screen aperture can be customized (such as 5mm, 8mm, 10mm, etc.) to meet the needs of different varieties or customers.

2. Almond shelling machine, high shell breaking rate (≥95%), while minimizing kernel damage. Adapt to nuts of different hardness (such as almonds, hazelnuts), and achieve the best effect by adjusting the gap between the rollers.

3. The shell kernel separator combines air selection and vibration screening, and the shell kernel separation purity reaches more than 98%, significantly reducing the cost of manual sorting. The wind speed and screen inclination can be adjusted to adapt to the difference in the specific gravity of the shell kernel of different nuts.

4. Almond grader, grade according to the size of almonds to increase the added value of products.

5. Vacuum packaging machine, automatic vacuum packaging, extend the shelf life and keep the nuts fresh. Packaging specifications (500g-5kg) can be customized to meet retail or wholesale needs.



1. Almond shelling production line can be flexibly customized: the screens and grading sizes of all equipment can be adjusted according to customer needs.
2. Multi-variety compatibility: can quickly switch to almond, macadamia and other processing.
3. Almond shelling production line automated assembly line design, 1ton/h continuous production capacity, reduce manual dependence.
4. Food grade material: equipment contact parts are made of 304 stainless steel.
