Products Description

The crab meat picker is mainly made of high-quality stainless steel, with fine workmanship, beautiful appearance and easy cleaning. It is mainly used for meat collection of aquatic products such as fish, shrimp, mud, crab, etc., and is the preferred equipment for the early processing of fish paste. The fish meat and fish bones are separated by the extrusion principle. The head and internal organs of the live fish need to be removed before the fish meat is collected.

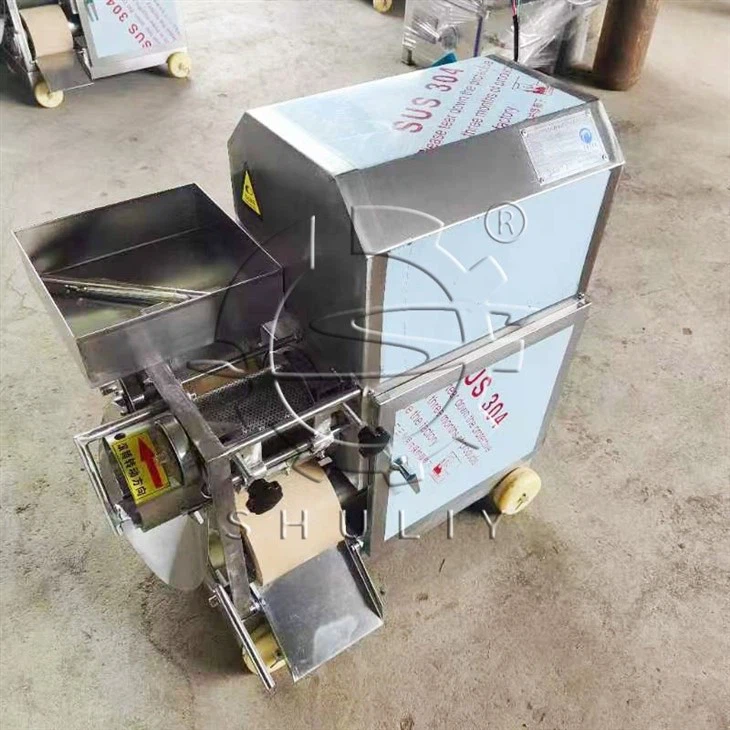

crab meat separator

Products Parameter

Model	TZ-150	TZ-200	TZ-300
Voltage	220V/380V	220V/380V	220V/380V
Power	2.2KW	3KW/2.2KW	3KW/2.2KW
Capacity	180kg/h	280kg/h	500kg/h
Material	SUS304	SUS304	SUS304
Belt length	1195mm	1450mm	1450mm
Belt thickness	20mm	20mm	20mm
Belt width	155mm	205mm	305mm
Drum diameter	159mm	219mm	219mm
Drum thickness	6mm	8mm	8mm
Weight	180kg	210kg	260kg
Diameter/mm	900680850	950720950	1050750970

crab meat separator

Products Features

1. The crab meat picker machine is made of all 304 stainless steel, the overall structure design is high-end and atmospheric, strong and durable, stable performance, various adjustment devices are reasonably designed, the degree of humanized operation is high, and the function of lubricating bearings is added.
2. The fish meat is clean and boneless, and can be directly used for deep processing of fish to make various high-quality fish balls, fish cakes, fish fillets, fish jerky, etc.

3. In addition to fish, shrimp, crab, loach, etc., this meat harvester can also be used for meat harvesting of other aquatic fish.

fish meat separator

Products Advantages

1. The crab meat picker equipment drum is made of 7mm thick 304 food-grade stainless steel punching, which does not deform and has a long service life. The built-in stainless steel scraper continuously scrapes the wall during the continuous collection of fish meat, so that the fish meat can be better collected.
2. The extrusion belt uses a customized silicone belt with convex protrusions. The protrusions and the roller punching cooperate to extrude more thoroughly. The belt thickness is 20mm. The silicone material is wear-resistant, does not deform after long-term use, and has a long service life.
3. The roller and the belt cooperate closely, and the gap is appropriate, which can better and more comprehensively collect fish meat, avoiding unclean and incomplete collection of meat.

fish meat bone separator

Products Structure

The crab meat picker machine is mainly composed of several parts such as motor, scraper, tensioning device, transmission device, conveyor belt, fish bone outlet, fish paste outlet, working roller, and fresh fish feed port.

Small or medium-sized fish are cut open and put directly into the machine. Large fish need to be decapitated and cut into pieces before being put into the crab meat picker machine. The fish body is squeezed through a low-speed, high-density stainless steel screen and conveyor belt to remove fish bones, thorns, skin, scales, etc., and clean fish paste is extracted. The machine is driven by a gearbox or a reducer, with large torque, stable low-speed operation, and no temperature increase.

crab meat separator
