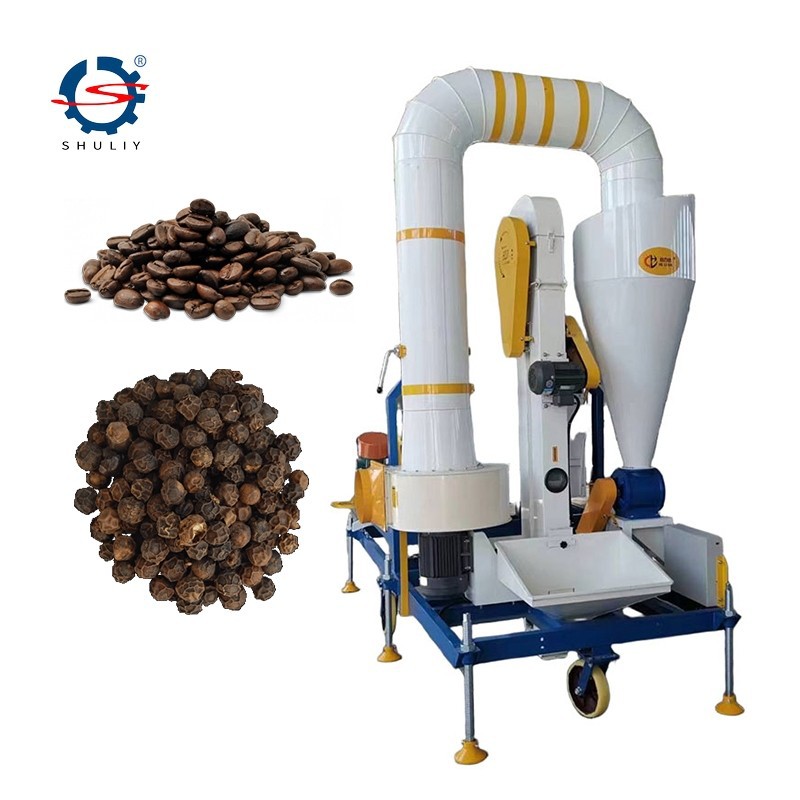

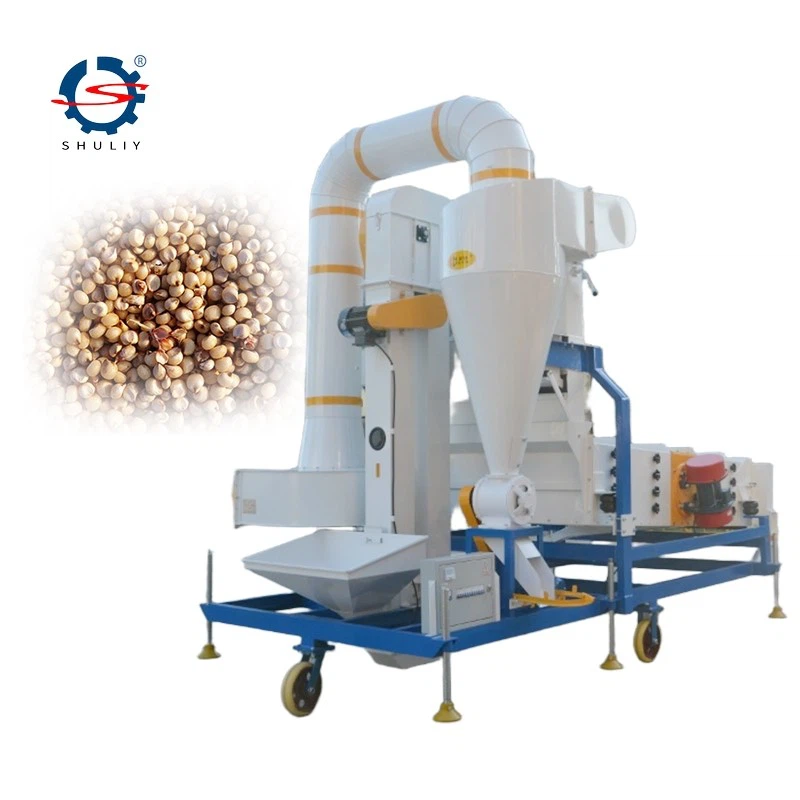

Seed Washing Machine

This Seed Washing Machine is equipped with a damage-free elevator, cyclone dust collector, and vibrating screen, enabling efficient cleaning and precise size grading of grains. The stainless-steel sieves ensure food safety, while the built-in wheels make short-distance movement easy and convenient. In addition, the machine's surface is treated with sandblasting and powder coating for enhanced durability and long-lasting performance.

Model	5XZC-10DX
Function	Feeding elevator, Air screen, cyclone, dust collector, vibration screen
Size L×W×H	4800×2500×3600 mm
Weight	2100 KG
Capacity	10 T/H(Based on process wheat)
Cleaning rate	≥98.5%
Voltage	380V(220V/440V need customized) 50/60hz 3 phase
Screen dimension	2400mm×1500mm×4 layers
Power	Total:10.5 kw Bucket elevator motor:0.75kw Air fan motor: 7.5kw Dust collector motor:0.75kw Vibration motor:0.75kw*2

The seed cleaning machine consists of a frame, lifting system, seed distribution box, air screen, vibrating screen, dust collector, seed outlets, and control cabinet. Seeds are first fed into the elevator hopper and lifted to the distribution box, where they are evenly directed onto the air screen. Here, light impurities are separated from the seeds by airflow and discharged through the cyclone valve. The remaining seeds then pass into the vibrating screen box, where large impurities, small impurities, and high-quality seeds are separated by different-sized sieves under vibration, and discharged through their respective outlets.

1. Large processing capacity for high-volume operations.

2. Bucket elevator designed for gentle handling with minimal seed breakage.

3. Adjustable airflow to suit different types of materials.

4. Enclosed air duct and cyclone separator ensure a clean working environment.

5. High-quality vibrating screen with easy-to-clean rubber balls.

6. Fitted with wheels for convenient mobility.

7. Equipped with branded electrical components for stable and reliable performance.

8. User-friendly design with excellent efficiency.

9. Low-position feeding hopper with control gate for easy operation.

10. Specially designed rubber balls prevent sieve clogging.

11. All motor belts are fitted with protective covers to guarantee safety in production.
