Products Description

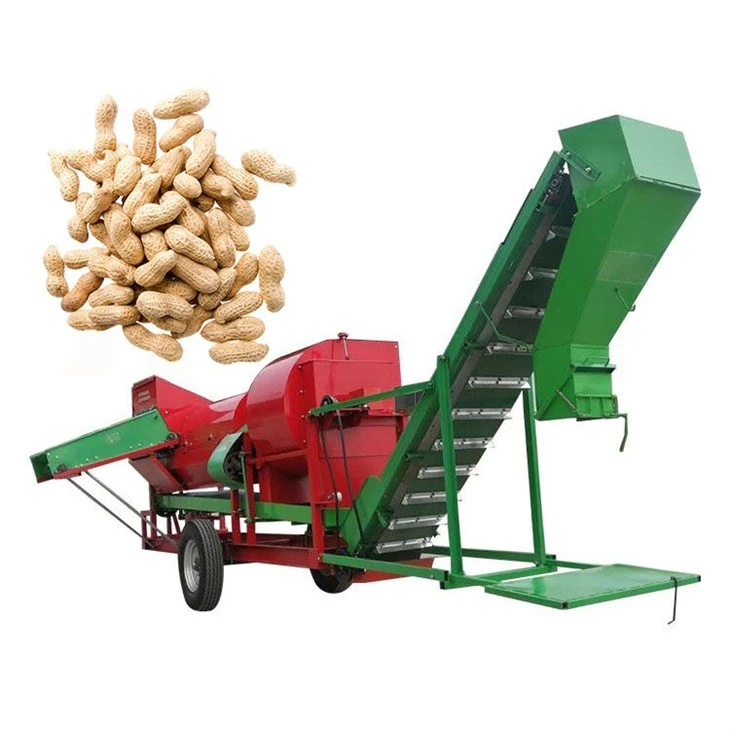

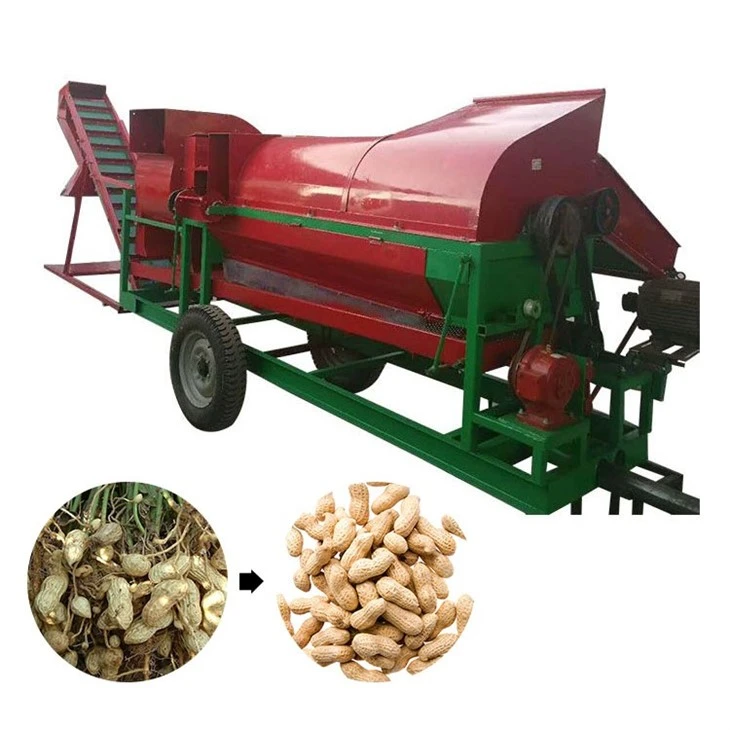

This large Groundnut picker, called TZY-1800, it is a mobile machine for professional packing peanuts. By artificially placing peanut stalks, the peanuts and straws will be automatically separated, the peanuts will be automatically packaged, and the leaves and grass will be discharged through the induced draft fan. The peanut straw are cleanly stripped, the cleaning rate is high, and the breaking rate is low, which becomes high-quality peanuts.

Groundnut picker

Products Application

1. Automat Groundnut picker can pick dry peanuts and wet peanuts, the picking speed is fast, the cleaning rate is high and less broken.

2. High-quality peanut automatic bagging system, the elevator at the end of the machine can help customers collect peanuts easily and quickly.

3. Traction picking machine, moving anytime and anywhere, flexible use so that work is more convenient.

4. The peanut picking machine is a new product developed by some technical innovations, with low cleaning and maintenance costs.

5. Peanut picker design science, reasonable structure, easy to operate, stable performance, safe and reliable

6. Peanut harvester adopts the ability to increase the cylinder, thicken the material, and have more stable performance and continuous operation. The various parts operate in coordination.

Groundnut picker

Products Work Processing

Groundnut picker

1. High-performance Groundnut picker is driven by tractor power output, diesel engine, and electric motor.

2. First, the peanut straw is sent to the machine feed port through manual delivery or a conveyor belt.

3. The picking system then rotates through the drum extraction rod, blowing peanuts from the stems, peanuts, and debris falling through the gravure holes onto the vibrating screen and discharging from the material port.

4. Through the shaking of the vibrating screen, disperse the peanut fruit and the straw, complete the picking, and send the peanuts to the peanut outlet. At the same time, the leaves and grass will be discharged through the draft fan and the straw will be discharged from the other outlet.

5. The bag is placed on the discharge port and the picking process is completed.

Products Parameters

Model	5HZ-1800
Power	22kw motor ,28 HP diesel engine or ≥35 HP tractor
Rotation speed of roller	550r/min
Loss rate	≤1%
Broken rate	≤3%
Impurity rate	≤2%
Capacity	1100kg/h
Inlet dimension	1100*700mm
The height from the inlet to the ground	1050mm
Weight	900kg
The model of separation and cleaning	Vibrating screen and draught fan
The dimensions of the screen	3340*640mm
Dimension of machine	655020001800mm
The diameter of the roller	600mm
The length of the roller	1800mm
