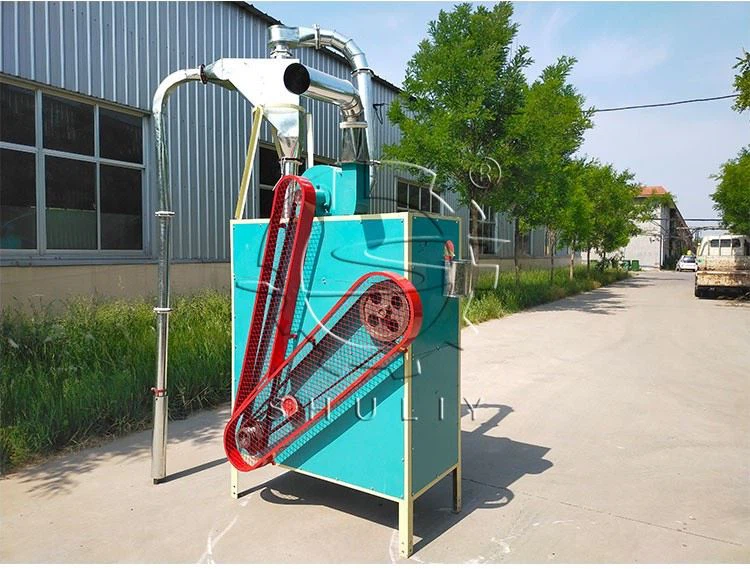

Corn Grain Cleaner





This corn grain cleaner machine is used to remove impurities such as leaves, chaff, dust, shriveled grains, and stones from grains. It is suitable for screening and selecting various crops such as wheat, corn, soybeans, and rice. The impurity removal rate reaches 99%. After wheat is dried, it inevitably contains impurities such as stones, clods of earth, rope ends, and wire scraps. These impurities must be removed before milling to meet food-grade requirements.



Model	FAQDJ-57
Capacity	400-600kg/h
Power	3kw electric motor
Size	1.7*0.8*2.9m





1. Economical and practical. Low investment, quick results, and thoroughly cleaned wheat!

2. Low power consumption: the sieve is 3kW, and the wheat washing machine is 1.5kW. Other manufacturers' corn grain cleaner machines have power outputs greater than 4.5kW.

3. Easy installation: users only need to install three positioning screws to complete the installation of the entire sieve. The sieve is assembled and tested at the factory. The wheat washing machine has undergone static and dynamic balancing at the factory.



1. The corn grain cleaner processes various impurities in grains separately through different methods, allowing for separate collection of different impurities. The machine features a novel and reasonable design, employing multiple technologies for excellent impurity removal.

2. Automatic feeding, air separation, stone and iron removal, mold removal, and removal of large, medium, small, and micro impurities are completed sequentially. It is a medium-sized processing unit with high efficiency, good results, and low power consumption.

3. The screen mesh can be changed according to the size of the material particles for cleaning corn, rice, soybeans, wheat, etc.

4. The corn grain cleaner machine has an attractive appearance, compact structure, is easy to move, and has significant dust and impurity removal efficiency.

5. The screen mesh can be changed according to user requirements, suitable for different types of materials.

6. Suitable for cleaning equipment in grain and oil processing units, grain storage facilities, and small and medium-sized grain purchasing stations.



The fully automatic corn grain cleaner is used to clean grain crops such as wheat and corn. This machine consists of five parts: automatic feeding, two sieves, a beater, a destoner, and a spiral water-discharging output. It features small size, light weight, low power consumption, and multi-functional integration, achieving one-time cleaning to meet finished product requirements.





The corn grain cleaner machine's cleaning sieve has three layers. First, the initial sieve removes dust and other impurities. Then, a main blower performs air separation before discharge. Finally, a small grain thrower at the front end throws the grain a long distance to remove moldy grain and small stones. (The first layer is for large impurities, the second for small impurities, the third for half-grains, and the fourth for sand, etc.) This not only solves your conveying problems but also provides satisfactory screening results.
