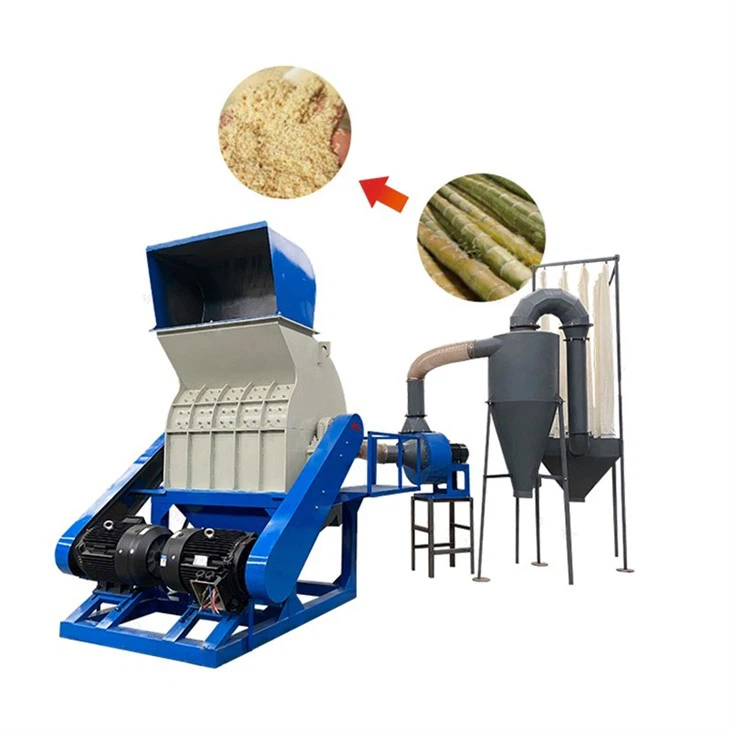

Wood Hammer Mill Machine

wood hammer mill machines can crush a wide variety of raw materials and have a wide range of applications. The machine can crush wooden boards, branches, charcoal, straw, coconut shells, fruit shells, etc.

The size of the finished product from 1-10mm can be controlled through the screen.



SL-HM500	Power:22kw Capacity:500-600kg per hour
SL-HM600	Power:30kw Capacity:800-1000kg per hour
SL-HM800	Power:55kw Capacity:1500-2000kg per hour
SL-HM1000	Power:75kw Capacity:2000-2500kg per hour
SL-HM1300	Power:110kw Capacity:2500-3000kg per hour
SL-HM1500	Power:75*2kw Capacity:3000-4000kg per hour



1. It can crush a lot of raw materials and has a wide range of applications.

2. The machine is equipped with an air-closer, which can control the discharging speed and appropriately reduce dust.

3. The machine comes with a dust bag.

Machine Structure:

The internal structure of the machine: spindle, hammer, screen

The external structure of the machine: motor, belt, cyclone, air lock, dust bag

After the material enters the crushing chamber from the feed hopper, it is crushed by the impact of the high-speed rotating hammer. Driven by the airflow, the sawdust is continuously hammered along the outer edge of the rotor. The raw materials are quickly crushed after being hit, collided, and rubbed. The pulverized powder particles are subjected to the centrifugal pressure of the rotor and the suction force of the fan to pass through the sieve holes and then are transported to the storage bag or storage bin.
