Waste Scrap Shredder

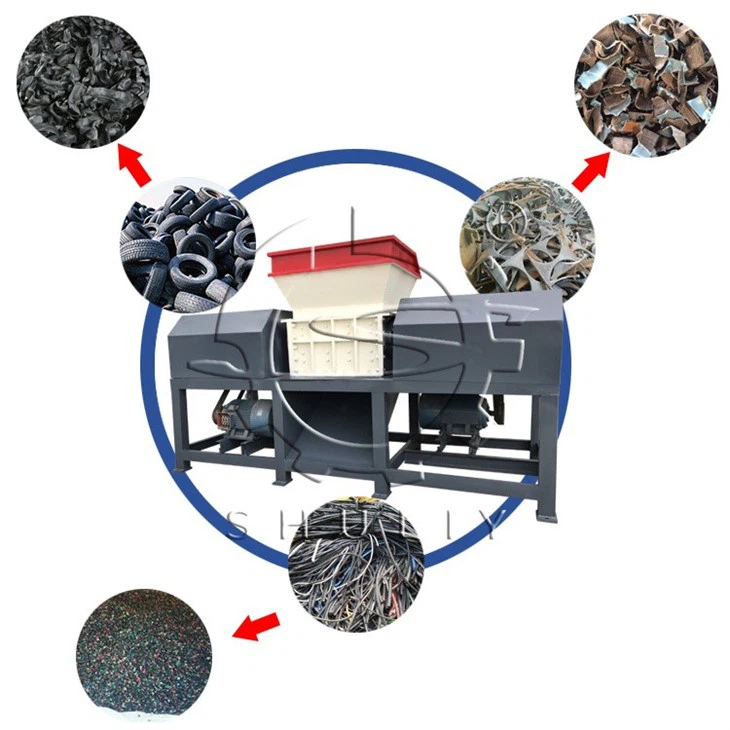

The double-shaft waste scrap shredder is a coarse shredder used to process raw materials or scraps to reduce the size. The double-shaft shredder, also known as the shear shredder, reduces the size of the material by shearing, tearing, and squeezing. This waste scrap shredder is widely used in the shredding of waste plastics, waste rubber, wood, and other large-volume waste. Compared with other crushers, the knife shaft has a low speed, low noise, and low energy consumption.



Model	TZ-D600	TZ-D1000	TZ-D1200	TZ-D1500	TZ-D1900
Motor Power	11*2 Kw	30*2 Kw	45*2 Kw	55*2 Kw	90*2 Kw
Capacity	2-6 T/H	3-8 T/H	5-10 T/H	8-18 T/H	10-25 T/H
Blade Number	34 Pieces	34 Pieces	30 Pieces	38 Pieces	34 Pieces
Input Opening Size(mm)	950*700	1200*1000	1500*1200	2000*1500	2500*2000
Dimension L/W/H(m)	2.6*0.9*1.8	3.6*1.5*2.2	4.6*1.8*2.6	5.2*2.0*2.6	6.2*2.5*2.8
Weight	3T	5 T	8 T	13 T	18 T

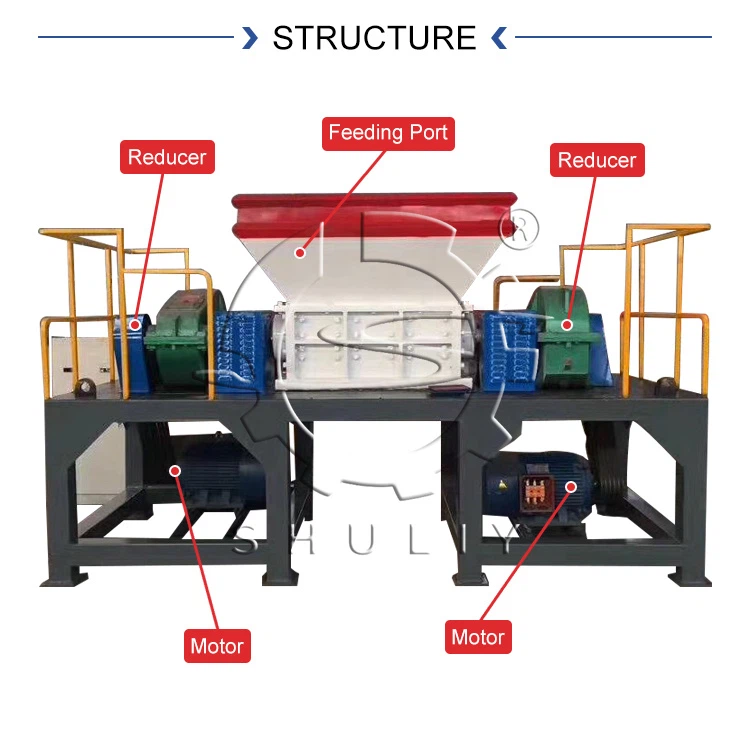

The material enters the box through the feeding system, and the box carries the crushing blade. The material is shredded into small pieces by the combined action of the crushing blade, shearing, etc., and discharged from the lower box. The crushing principle of the waste scrap shredder is that the two shafts are equipped with staggered blades. The two shafts are shredded by the cutting of the blades and the tearing of the blade teeth during the reverse rotation.



1. The knife seat and blade on the rotor are removable, which is convenient for cleaning, maintenance, and care.
2. Each moving knife has 4 cutting edges, which can be rotated 90° for continued use after wear.
3. The main shaft is driven by a gear reducer, which runs smoothly and has low noise and high torque.
4. The waste scrap shredder machine adopts a PLC program control system, which can automatically reverse forward and reverse, making the machine run stably.
5. The box body is welded and tempered after welding.
6. The moving knife is installed in a position that makes the gap between the moving knife and the fixed knife the same.
7. It is convenient to transport after shredding, with low transportation costs, increased transportation efficiency, and convenient secondary processing.



1. The shredder blade is forged, annealed, heat treated, tempered and insulated, and finely ground on the line cutting.
2. The waste scrap shredder gearbox adopts steel plate welding with high precision, good contact, low noise and long service life.
3. Couplings connect the transmission parts of the shredder to reduce vibration, protect the main shaft and reducer, and not lose force.
4. The shredder motor uses a full copper core motor to reduce energy consumption and has a long service life.
