Products Description

The two-stage crusher is an important piece of equipment widely used in mining, construction, metallurgy, chemical industry and other fields. Its powerful crushing capacity and efficient working performance make it indispensable in the field of modern engineering.

Basic principles of two-stage crusher

Double-stage crusher, as the name suggests, is a device composed of two crushing stages. Its working principle is relatively simple, but very efficient. First, the raw materials are transported through a feeding device to the first-stage crusher, which is a sturdy piece of equipment that usually consists of a jaw crusher or an impact crusher. At this stage, the raw materials are crushed into smaller particles.

These smaller particles are then conveyed further to a secondary crusher, usually a cone crusher or impact crusher. In the second stage, the particles are further refined to finally obtain the finished product with the desired particle size. The entire process achieves efficient and continuous crushing operations through the coordinated work of auxiliary equipment such as conveyor belts, vibrating feeders, and vibrating screens.

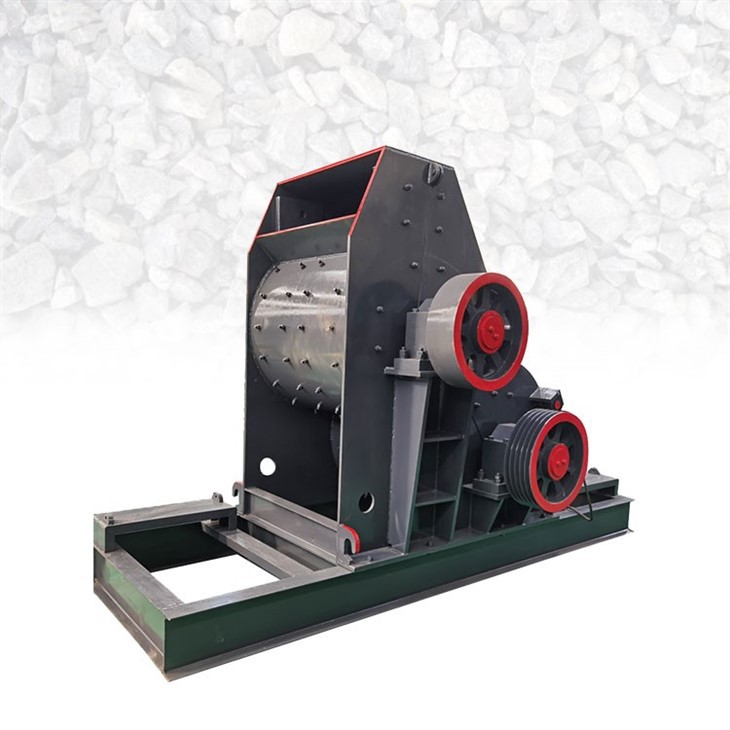

Two-stage crusher

Products application

The two-stage crusher can crush more than 100 raw materials such as gangue, shale, slag, cinder, slag, ore, stone, and limestone. It can also crush construction waste and turn waste into treasure. The two-stage crusher has large output, low noise, stable equipment operation, and very good crushing efficiency.

Two-stage crusher

Products parameters

Model	capacity(t/h)	Number of hammer heads	Hammer weight(kg)	motor(kw)	thickness of steel(mm)	weight(kg)
400*400	5-10	24	2.5	7.5+7.5	8	600
600*400	10-15	24	3.5	18.5+18.5	10	1000
600*600	15-20	40	3.5	22+22	10	1300
600*800	20-30	48	3.5	30+22	12	1800
800*600	30-40	40	8	45+37	14	3000
800*800	40-50	48	8	55+45	14	3500

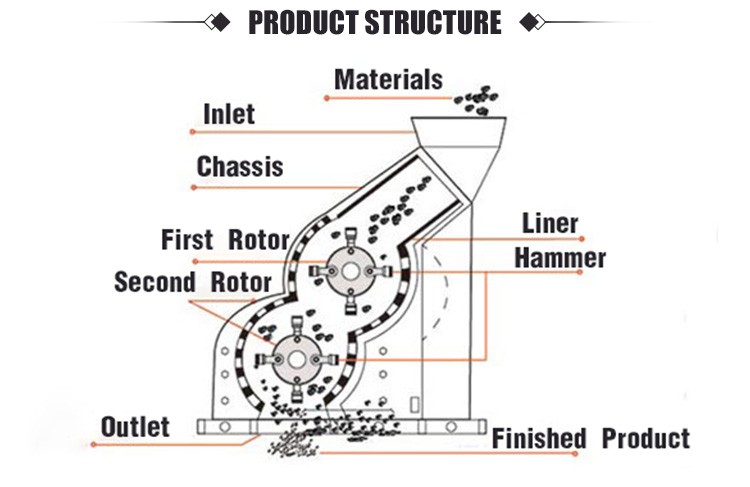

Products structure

Product advantages of double-stage crusher: High crushing efficiency, Adjustable granularity, Stability and reliability, Low energy consumption, Environmental friendly.

Two-stage crusher
