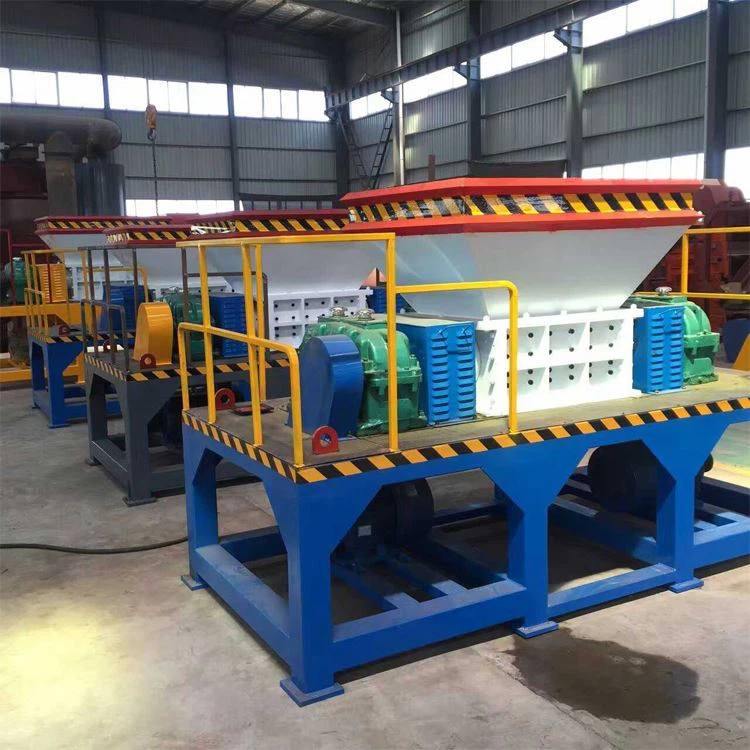

Metal Shredder Machine



A metal shredder machine is a machine composed of a shredding blade set, a load-bearing box, a box bracket, a feeding system, a power system, and an electrical control system. It is mainly used to shred light and thin metal with a certain strength and increase its packing density to facilitate transportation and recycling. Shred objects such as metal barrels, refrigerators, cars, scrap steel, steel furniture, etc.

The Metal shredder machine adopts a dual-shaft independently driven cutter shaft structure and a four-corner rotating cutter. During the low-speed and high-torque production process, there will be no shaft winding or equipment jamming, thus improving production efficiency.





Model	600	800	1000	1200
Bin size(mm)	600*550	800*480	1200*1000	1400*1000
Cutter diameter(mm)	260	320	350	400
Spindle speed(r/m)	18-20	18-20	18-20	18-20
Motor Power (Kw)	18.5*2	30*2	37*2	45*2
blade number	6-20	8-25	12-40	11-30
Knife plate thickness	15-50	15-50	15-50	20-60
Capacity (kg)	800-1500	3000-5000	5000-8000	6000-10000
Output size (cm)	3-10	3-10	3-10	3-10
Overall dimensions (mm)	2600*2000*1900	2800*2000*1900	3000*2000*1900	3200*2200*1900
Weight (kg)	2500	3000	5000	6000



The main shredding objects of the shredder are as follows:
Industrial waste/domestic waste - domestic waste, waste wood, kitchen waste, kitchen waste, industrial waste, factory waste, municipal sludge, fiberglass, slurry tarpaulin;

Biomass - branches, leaves, straw, corn cobs, wheat straw, bark, banana trees, straw, garden waste;

Recycling waste materials - waste tires, waste paper, waste plastics, plastic bottles, chemical barrels, aluminum materials;

Product document destruction - computer hard drives, documents, substandard products, expired drugs, plastic parts,

Waste processing - medical waste, radioactive materials, organic waste, hazardous solid waste; metal solid waste - paint buckets, paint cans, iron and oil drums, metal waste, aluminum waste.





Metal shredder machine product advantages:
1. The knife holder and blade on the rotor are removable for easy cleaning, maintenance and upkeep;
2. Each movable knife has 4 cutting edges and can be rotated 90° for continued use after wear;
3. The main shaft is driven by a gear reduction box, with smooth operation and low noise;
4. Adopt a PLC program control system, which can automatically rotate forward and reverse, making the machine run stably;
5. The box body is welded and tempered after welding;
6. The installation position of the movable knife is precision machined so that the gap between the movable knife and the fixed knife is the same;
7. The movable knife base is embedded and connected to the knife shaft with screws, which can avoid the phenomenon of the welded knife falling after long-term vibration;
8. After shredding, it is easy to transport, the transportation cost is low, the transportation efficiency is increased, and the secondary processing is convenient.
