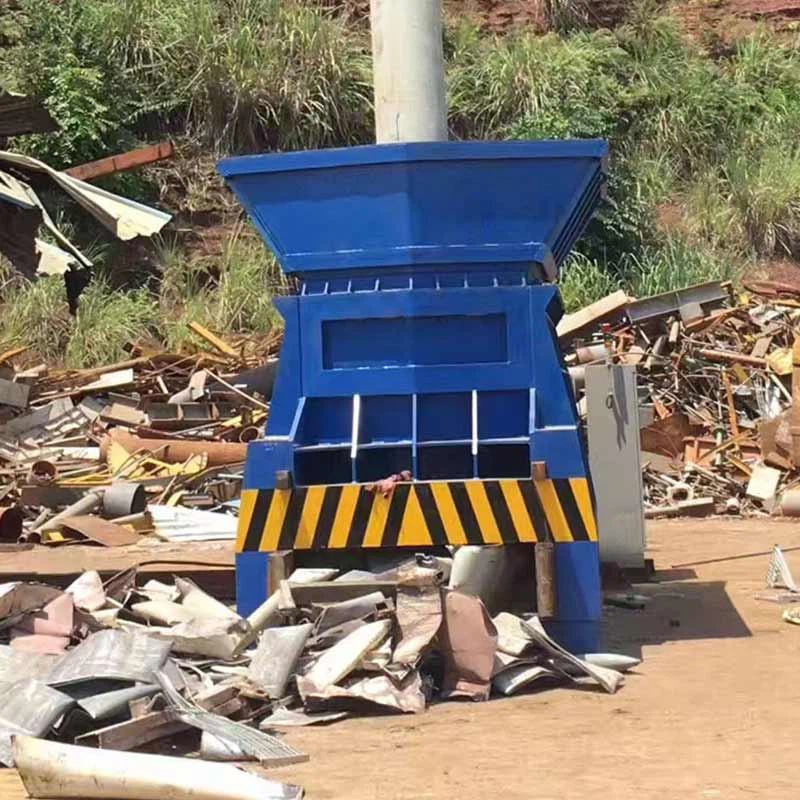

Container Metal Scrap Shear

The container metal scrap shear is mainly used for cutting waste scrap steel, angle steel, round steel, steel plates, stainless scrap, steel rebar, construction steel wire, copper and aluminum profiles, and various ferrous and non-ferrous metals. This scrap metal horizontal shear machine is also used to cut heavy metal scrap, automobile scrap, ELV scrap, and old/used car bodies. This high-speed scrap cutting machine is known for its excellent performance in the metal recycling industry.

We are a manufacturer and exporter of a wide range of shearing machines, including wing shears, inclined shears, alligator shears, container shears, and box shears. With this shearing machine, scrap is continuously fed into the loading chamber throughout the shearing cycle. The material is then cut by blades mounted at the front of the shear.

Model	SL-630	SL-800	SL-1000
Material box size(L*W*H)	2667*1600*2000mm	2667*1600*2080mm	2678*2000*2232mm
Feed box size(L*W*H)	3400*2400*900mm	3472*2400*900mm	3830*2800*900mm
Equipment size(L*W*H)	8250*2500*3300mm	8250*2500*3300mm	10250*2500*3300mm
work pressure	21.5MPA	21.5MPA	21.5MPA
Shearing knife length	1600mm	1600mm	2000mm
clipping height	400mm	500mm	500mm
number of cuts	3 t/min	3 t/min	3 t/min
Shear speed	23s/t	23s/t	23s/t
total equipment output	10t-12t/h	15t-20t/h	25t-30t/h

The advantages of the container shear compared to common guillotine shears can be summarized as follows:

1. Low specific investment and running costs.

2. Continual loading of the shear in the feed hopper with simultaneous ejection of the cut scrap-no pre-compaction by lids needed.

4. Shear control is carried out by the grabber crane operator, with no additional operator required.

5. Self-enclosed operation with an integrated diesel engine.

6. Easy collection and transport by towing vehicle for transport containers or flatbed trailer.

7. Efficient one-man loading, cutting, and removal from one or several container shears using a digger.

8. Requires less space compared to stationary shears.

9.No assembly or foundation costs needed for operation.

10. Does not require the usual clearance for operation, as it is a mobile unit.

11. Thanks to the horizontal cut with a large guided blade carriage, there is minimal wear.

12. The forces acting on the blade carriage always tend towards the center, avoiding twisting forces.

13. All inner surfaces have a wear plate cover, reducing overall wear.

Scrap is introduced from above, and due to the movement of the pre-compressor, the scrap automatically slides down, with cut scrap pushed out from the front.

Established in 2011, Zhengzhou Shuliy Machinery Co., Ltd has always adhered to the development concept of environmental protection, committing to the research of recycling machinery.

To date, we have produced more than 30 types of recycling machines, including plastic granulator machines, egg tray machines, copper wire recycling machines, shredder machines, etc. We maintain a focus on quality throughout the entire production and service processes.

Furthermore, Shuliy boasts a group of professional technical and sales teams dedicated to providing customers with comprehensive production programs. We aim to maximize the economic, practical, and environmental values of our machines, helping customers achieve greater benefits. Presently, Shuliy machines have been exported to the United States, Canada, Australia, Malaysia, Indonesia, South Africa, and other countries. In the future, Shuliy Group will continue to create more value alongside you.

With the unique advantage of high automation and stable, reliable performance, the company has earned the trust and high praise of many customers.
