Grape Crusher For Wine Making

Grape destemming and crushing machine is a special equipment for processing fresh grapes in wineries. It can carry out processes such as fruit and stem separation, stem removal, crushing, and pulp transportation for grapes. It is an ideal grape pre-processing equipment for small and medium-sized wineries.

Products Description

The grape destemming and crushing machine is primarily used in the initial processing stage of grapes, specifically encompassing the two steps of destemming and crushing. It serves as an ideal piece of equipment for wineries and grape juice processing plants, facilitating the removal of green skins from the grape stems and subsequent pulp crushing to aid fermentation and juice extraction. The crushed grapes can be directly used for juice extraction or undergo maceration before pressing, resulting in finished products with varying tastes.

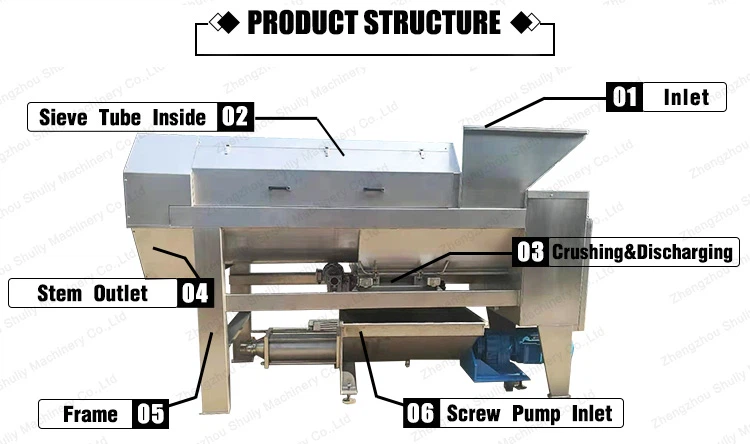

grape crusher destemmer

Products Parameter

Model	Capacity(T/h)	Crushing Power(KW)	Destemming Power(KW)	Dimension(mm)
TZ-20	10-20	1.1	3	26329101800
TZ-10	5-10	1.1	2.2	22868341574
TZ-5	2-5	0.75	1.5	18366301352
TZ-2	1-2	0.55	1.1	15136101130

Products Features

1. Highly efficient and automated, the grape crusher for winemaking swiftly completes grape crushing and destemming, thereby enhancing production efficiency.

2. It boasts a simple structure, convenient operation, and easy maintenance.

3. Grape destemming and crushing machines are indispensable equipment in grape processing plants, wineries, and similar facilities, ensuring wine quality and taste.

grape crusher

Products Advantage

1. The primary technical feature of the grape crusher for winemaking is its destemming-first, then-crushing approach. The crushing roller, made of non-toxic and highly elastic rubber, provides protection to the grape core.

2. The feeding screw is driven by a stepless speed regulator to achieve the ideal feeding rate.

3. The destemming device can adjust speed according to different grape varieties. Crushed grapes are conveyed outward by the lower screw, reaching a horizontal distance of up to 80 meters.

4. All parts of the grape crusher for winemaking that come into contact with grapes and exposed components are crafted from high-quality stainless steel.

5. The sieve hole diameter measures 28 mm. If grapes are too large or too small, please specify when ordering.

grape crusher and destemmer

Our Service

1. What services do we have?
If the customer comes to China, we will pick you up at the airport or the high-speed rail station, and then send you to the hotel.
2. Online presale services
a. super and solid quality
b. fast and punctual delivery
c. standard export package or customized
3. After-sale services
a. assistance to build your project
b. repairing and maintenance with any problems in the warranty.
c. installation and clerks training
d. spare parts and wearing parts for free or with a big discount
e. any feedback on the machine can be given to us so that we can give you the best service
4. Other cooperation services
a. technology knowledge share
b. factory building advising
c. business expansion advising

grape crusher destemmer
