Products Description

Stainless Steel Bar Looped Machine

1. The fully Stainless Steel Bar Looped Machine adopts single-chip integrated control, arbitrarily adjusts parameters, multiple parameter storage functions, and digital display to save time, facilitate management, and improve production efficiency. High accuracy, rounding error is ±0.50MM.

2. The steel bar circle machine is also called steel bar rolling machine, rounding machine, spiral bar forming machine, fully automatic circle machine, etc.
3. It has the characteristics of advanced control technology, stable operation performance, fast production speed, accurate product size, high precision, simple operation, power saving, high efficiency, low production cost, and one machine for multiple uses.

Products Parameters

Model	ST-10	ST-12	ST-16	ST-22
Steel bar diameter	6-10mm	8-12mm	10-16mm	16-22mm
Power	5.5kw	7.5kw	11kw	15kw
Capacity	20m/min	15m/min	12m/min	10m/min
Inner diameter range of steel bar ring	100-300mm	120-350mm	150-500mm	200-500mm
Dimension	150010001300mm	170011001300mm	200011001400mm	240015001600mm
Weight	850kg	980kg	1200kg	1800kg

Products Details

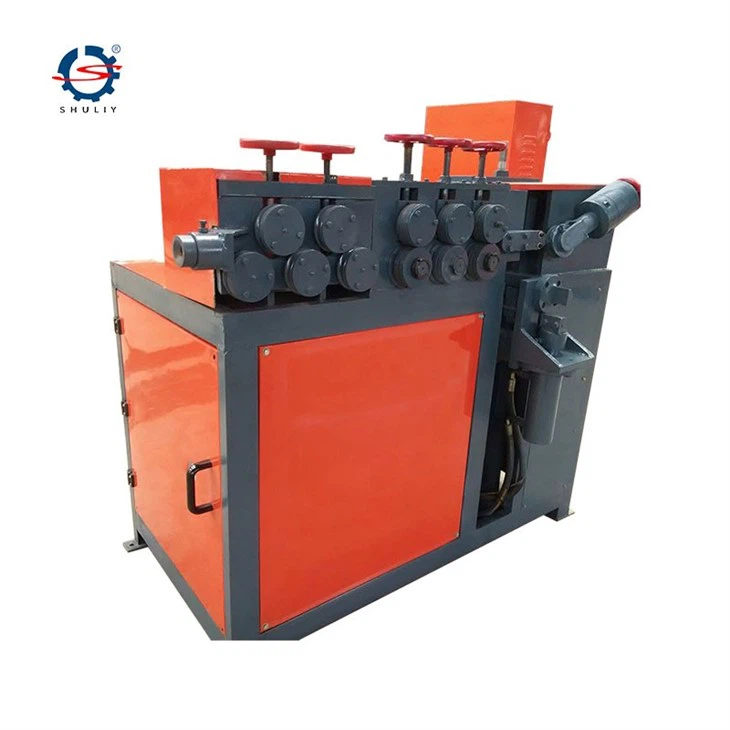

Stainless Steel Bar Looped Machine

product-750-1055

The Stainless Steel Bar Looped Machine consists of an electric motor, hydraulic components (oil pump, hydraulic motor, electronic valve, oil tank pipe, etc.), pre-adjusting wheel, straightening gearbox, rounding assembly, cutting assembly, CNC electrical control program, etc. The PLC motherboard starts the control of the motor to drive the oil pump, starts the hydraulic component to drive the straightening gearbox to drive the material forward, moves to the rounding assembly to complete the circle forming, and then cuts off the oil cylinder to cut the material upward to complete the operation.

Products Display

Stainless Steel Bar Looped Machine

1.The circle system adopts hydraulic transmission and cycloidal motor, which can reduce gear clearance without gear assistance

2 .Stable performance, the machine has functions such as fast feeding, automatic cutting, manual cutting, automatic stop, and start-up.

3 The machine adopts single-chip integrated control to adjust parameters at will, multiple parameter storage functions,
digital display, save time, and improve production efficiency.

4. The integrated structural design of the whole machine is sturdy and durable.

5. Fully automated operation, automatic feeding, straightening, automatic rolling, and automatic cutting.

6. The PLC numerical control system is used to ensure the accuracy of the rolling and spiral. Only one worker is required to operate the entire equipment.
