Products Description
Pet bottle blowing machine is a kind of advanced industrial automation equipment, that is specially used to manufacture various plastic bottles, containers and other hollow plastic products. Its high efficiency, precision, and customizability make it an indispensable and important tool in modern manufacturing. The blow molding machine can produce plastic containers of various shapes, sizes, and types in a short time by blowing molten plastic materials into shape, and is widely used in food, beverage, cosmetics, medicine, and other fields.
Products Application
Pet bottle blowing machine are widely used in many fields, including but not limited to:
1. Food and beverage packaging: used in the production of various bottled water, juices, dairy products, etc.
2. Pharmaceutical field: manufacturing pharmaceutical bottles, medical containers, etc.
3. Cosmetics and personal care: production of cosmetic bottles, shampoo bottles, etc.
4. Industrial Chemicals: Manufacture containers for chemicals, lubricants, etc.
5. Household goods: Manufacture of detergent bottles, cleaner bottles, etc.
Products display
Products parameters
|
Model |
SL-20 | |
|
Output |
Based on the bottle shape |
800-1200PCS/H |
|
Product Specifications |
Bottle neck size |
10mm-120mm |
|
Bottle body diameter |
15mm-130mm |
|
|
Bottle height |
50mm-350mm |
|
|
Mold Specifications |
Cavity |
2cavities |
|
Mold thickness |
100~250mm |
|
|
Max stretching distance |
430*380mm |
|
|
Machine Power |
Power Voltage |
380v 3Phase / 220v 3Phase 50/60HZ |
|
Installed power / Actual power |
18kw/10kw |
|
|
Air Source |
High-pressure air compressor |
1.2m3/min 3.0MPa |
|
Air dryer |
0.6m3/min 1.0MPa |
|
|
Water chiller |
Chilled water yield |
15L/min |
|
Blowing machine size |
Length*width*height/weight
|
1700*650*1700mm/1000kg |
|
Heater size |
Length*width*height/weight
|
1700*600*1450mm/300kg |

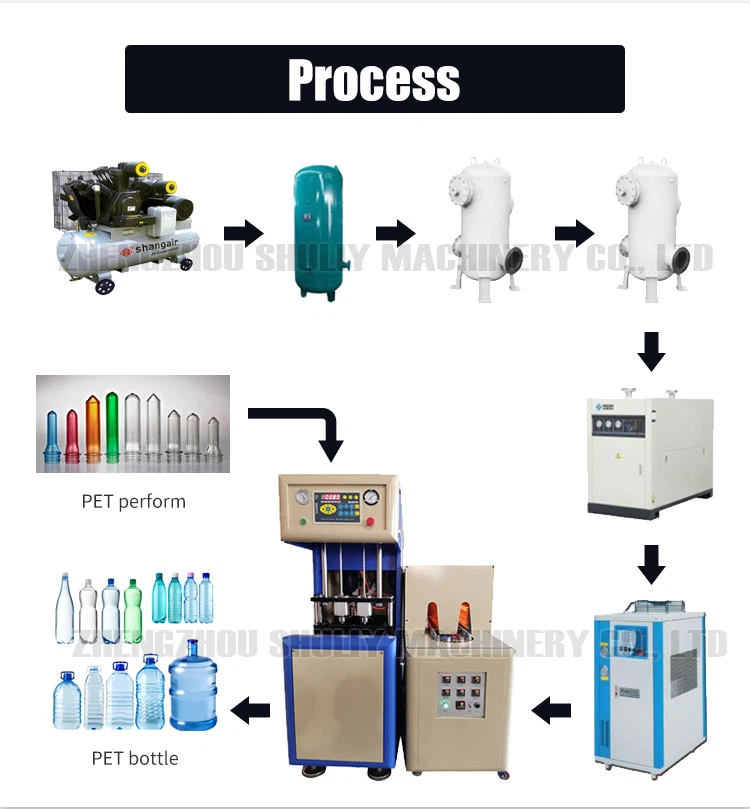

Products processing line
The working principle of the Pet bottle blowing machine is based on plastic blow molding technology, which is usually divided into two main types: injection blow molding and extrusion blow molding. Injection blow molding uses pre-made injection molded parts, which are heated and melted in a specific mold, and then blown into shape by air pressure. Extrusion blow molding is done by extruding plastic pellets into hollow tubes, heating them again in a mold and blowing them into shape.
