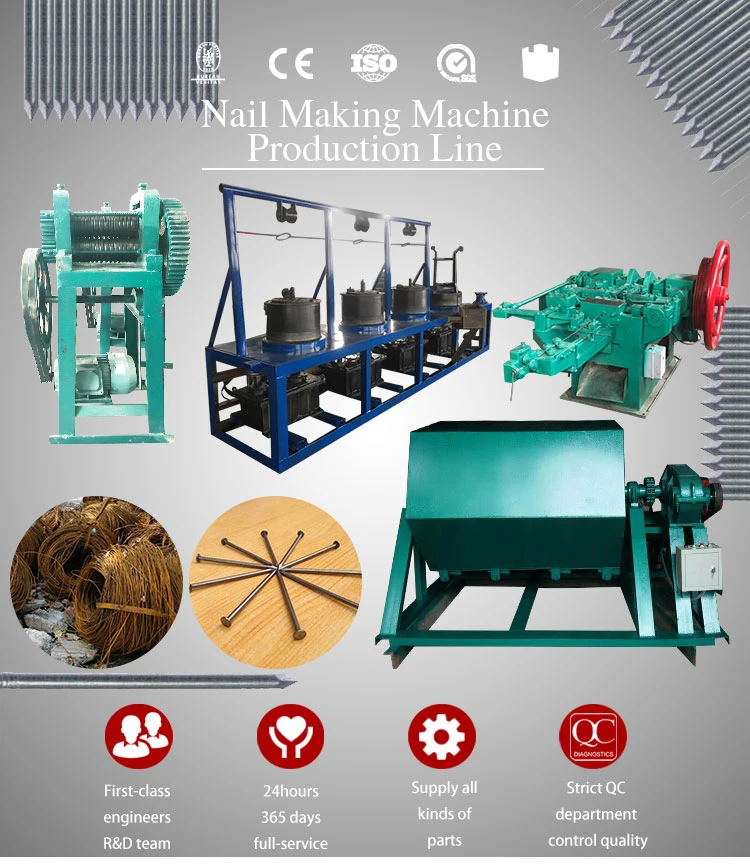

Steel Nail Making Machine

This machine uses independent innovation to promote the progress of nail making so that every nail produced is of high quality. From the mechanical structure, it eliminates the phenomenon of long and short nails, partial caps, nail caps that are smaller than the nose, and bent nails. Comprehensively improve production efficiency, with high energy saving, low loss, and lower later use costs of nail cutters and nail molds, effectively reducing production costs.

Technical Parameter	Unit	SL-5C	SL-4C	SL-3.5C	SL-3C	SL2C	SL-1C
M1 large diameter	mm	5.0	4.5	3.1	3.7	2.8	1.6
M1 small diameter	mm	3.1	2.8	1.8	2.0	1.2	0.9
M1 large length	mm	130	100	75	90	50	25
M1 small length	mm	80	50	30	40	16	9
Design output	Pcs/m	220	260	280	280	300	450
Motor Power	Kw	5.5	4	3	3	2.2	1.5
weight	kg	2000	2500	1100	1000	950	800
Overall dimensions	Mm	2600×1600×1650		2000×1400×1400		1700×1300 ×1400	1500×1300 ×1200



1. Double punch double die nail cap is more beautiful
    No cap, no crack, Uniform, clean and free of dust
    No chip inclusion, greater reduction of wear and tear of abrasives

2. High precision, small stroke, low tool consumption
   The single knife can cut more than 10 million times
   Simple machine adjustment, saving time and effort

A fully automatic imitation Taiwan oil-injection nail-making machine has the following advantages:
1. The machine adopts a plunger structure to ensure high speed, low noise, stable quality, and easy operation.
2. It adopts an advanced electronic control system, saving 30% of electricity. One machine has multiple functions. It can not only produce ordinary nails, round nails, and threaded nails but also heat-insulating nails and special-shaped nails of various sizes!
3. This machine has the characteristics of uniform feeding and a high nail output rate.

The main wearing parts of the equipment: are molds, nail cutters, and punch

(1)Double-mode double-punch structure. More stable

1. Even if the nail rods are not cut neatly, the top hat can still be cut correctly.
2. The top hat is not ordinary big, it is very big
3. There are no scratch marks on the top cap, ensuring the consistency of the nail cap and making it more beautiful.
4. The diameter and thickness of the nail caps are uniform, and there is no phenomenon of thick edges and thin edges.
5. The hollow design of the nail mold has no small caps, no dust blocking, no cap clamping, no cracking, and no need to frequently dismantle the mold.

(2)Nail knife rest swing bar structure ●Low wear

1. Small stroke and low mechanical wear
2. High precision, the nail cutter can cut without touching, and the tool loss is low
3. The number of cuts with a single knife reaches more than 10 million times, and the adjustment can be updated
Save time and trouble.

(3)Feeding and wire withdrawal structure ●Good quality

1. High-precision feeding device controls the length error of each nail within 0. 3mm
2. Unique combination of wire feeding and wire withdrawal. Each nail undergoes three mechanical actions of wire feeding, shearing, and wire withdrawal to completely separate the nail scraps from the nail shaft to ensure quality.
