Products Description

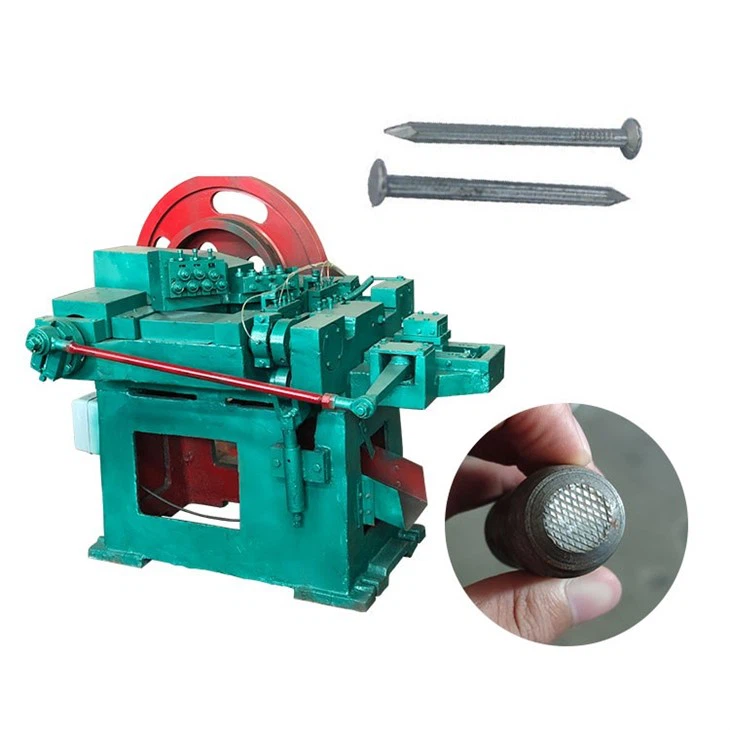

fully automatic nail making machine
In the process of nail making, first is drawing, then nailing, and finally polishing. No matter which raw material is used, the above 3 steps are necessary steps. The equipment selected for the nail making equipment is different. As to the raw materials, there are new materials and scrap steel. The difference between the two is the drawing machine. If using new materials, you can use a horizontal drawing machine or a continuous drawing machine in the drawing process; and if using
For scrap steel, you need to use a roller-type of wire drawing machine. Moreover, due to the different lengths of the used steel bars, the feeding mode is different, so the scrap steel bars need to be docked by the butt welding machine before drawing.
Products specification
|
Technical Parameters(unit) |
Z94-712 |
Z94-713 |
Z94-714 |
Z94-715 |
|
Maximum diameter of the nail(mm) |
2.8 |
3.5 |
4.5 |
6.0 |
|
Minimum diameter of nail(mm) |
1.2 |
1.6 |
2.0 |
3.0 |
|
Maximum length of nail(mm) |
55 |
80 |
110 |
180 |
|
Minimum length of nail(mm) |
15 |
20 |
30 |
50 |
|
Capacity(pcs/min) |
350 |
320 |
250 |
150 |
|
Motor Power(kW) |
2.2 |
3 |
3 |
5.5 |
|
weight(kg) |
1000 |
1200 |
1800 |
2600 |
|
Dimensions(mm) |
1650x1150x1100 |
1900x1200x1250 |
2280x1420x1330 |
2750x1550x1500 |
feature
1. The equipment is mainly composed of the main body gearbox, gear, reel, mold box, guide wheel frame, wire rack, and electrical control system.
2. The equipment is equipped with a water cooling circulation system
3. Each of the wire drawing reels is rotated by the Y series motor through the gear coupling, and the cylindrical gears of different speed ratios are decelerated to rotate the reel. The drawing reel is vertical and mounted on the cover case. The gears are lubricated with oil.
4. Can be used to produce nail wire: diameter 8mm or diameter 6.5mm incoming line, minimum diameter 2mm outlet; can also be used to produce gill net, barbed wire, wire drawing of metal mesh raw materials
5. Suitable for drawing low, medium, and high carbon steel wires, and also for drawing non-ferrous metal wires such as copper and aluminum.
