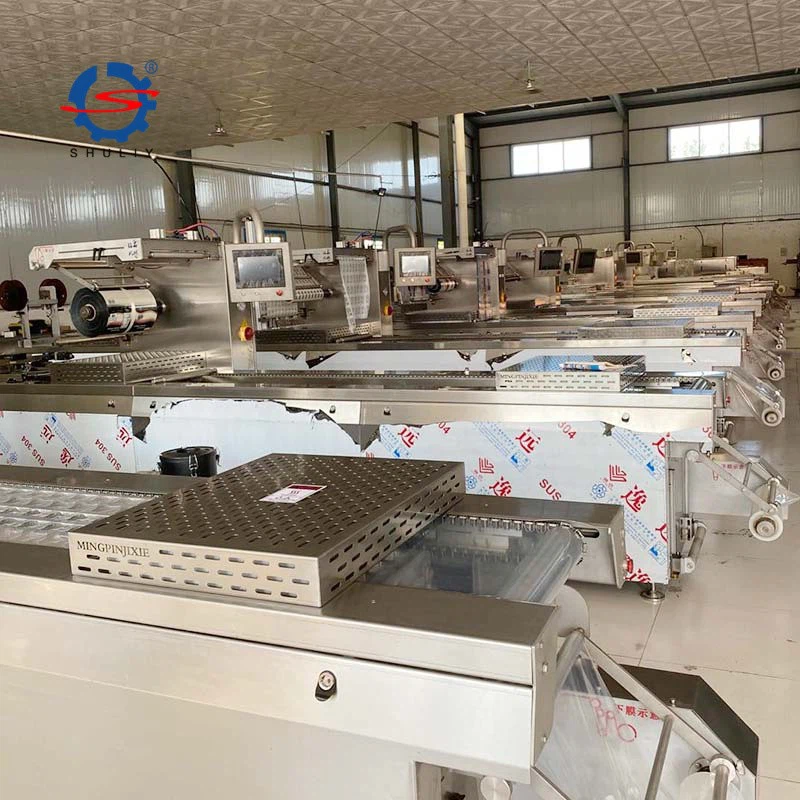

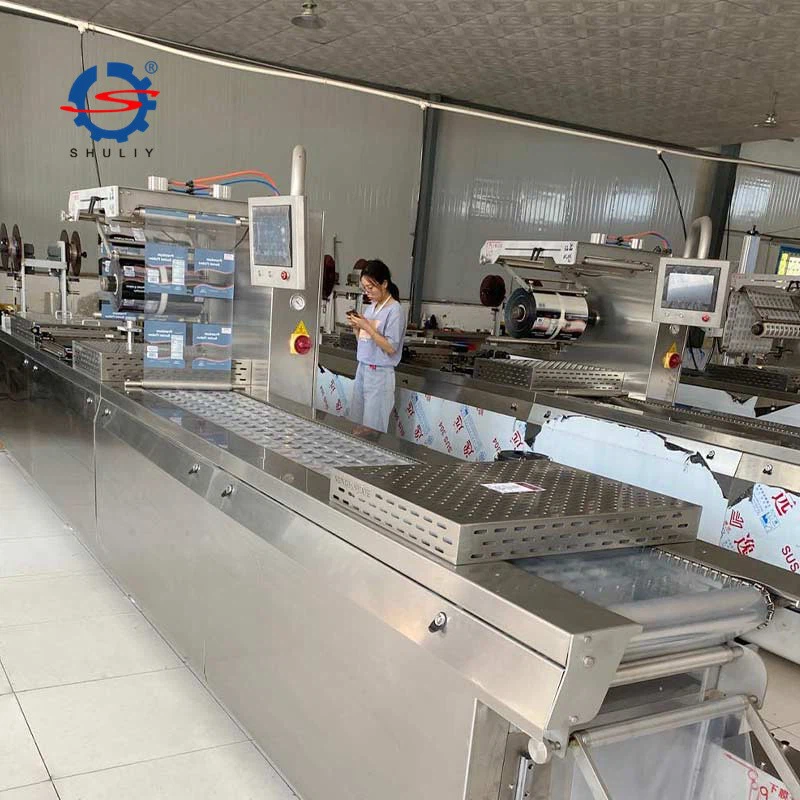

Thermoforming Vacuum Packaging Machine





The fully automatic thermoforming vacuum packaging machine automatically forms the film through the roll film, stretches the lower film, covers the upper film and heat seals it, and then cuts it into independent products through the vertical and horizontal knives after vacuuming. Only one or two people are needed to place the products in the whole process.



Model	TZ-320H	TZ-420H	TZ-520H
Material	90% food grade 304 stainless steel + 10% aluminium alloy
Film type	Flexible package with serrated edge
Film width	296/322mm	396/422mm	496/522mm
Step length	200-320mm	320-420mm	420-520mm
Voltage	220V/380V/415V/460V 50HZ/60HZ 3Phase
Language	English/Spanish/Russia/Chinese/Arabia for options
Function	Forming container, put food by manual, vacuum, gas fill, seal, cut
Vacuum pump	100m3/h	200m3/h	200m3/h
Overall size (mm)	5200*900*1880	5500*980*1880	5800*1050*1880



The thermoforming vacuum packaging machine is suitable for vacuum heat-sealed packaging of a variety of foods, medicines, local specialties, and aquatic products. The vacuum packaging of products made of solid materials such as chemical raw materials can timely prevent the decay and deterioration of goods caused by oil oxidation and aerobic bacteria reproduction, and achieve the purpose of preservation, freshness, fragrance and color enhancement, which is convenient for long-term storage of products.



1. Use highly sensitive photoelectric sensors to accurately package color films or light films, reduce costs, and improve product grades.
2. Use combination molds for easy replacement and multi-purpose use
3. The thermoforming vacuum packaging machine can be equipped with automatic coding system or inkjet printer according to user product packaging requirements.
4. Equipped with an original German vacuum pump, with high vacuum and stable quality.
5. Use customized chains, suitable for stretching and forming of soft films, hard films and semi-hard films of various thicknesses, and can be used for special packaging.
6. Equipped with a scrap recycling system to maintain environmental hygiene.
7. Use advanced cross-cutting and longitudinal cutting systems for easy replacement and operation.
8. Built-in fault automatic alarm and equipment maintenance automatic alarm make the equipment more user-friendly.
9. The thermoforming vacuum packaging machine adopts PLC programming control, the program is perfect, and the equipment runs smoothly.



The principle of this thermoforming vacuum packaging machine is to use a forming mold to heat the film first, and then use the forming mold to punch it into the shape of a container, and then put the package into the formed lower film cavity, and then vacuum pack it. The fully automatic vacuum packaging machine is mainly composed of a vacuum system, an air-inflating sealing system, a hot pressing sealing system, an electrical control system, etc. Compared with the continuous vacuum packaging machine, this vacuum packaging machine has a larger output, and the main thing is that the product does not need to be bagged, but is directly placed in the mold of the vacuum packaging machine, and the bag is automatically formed.
